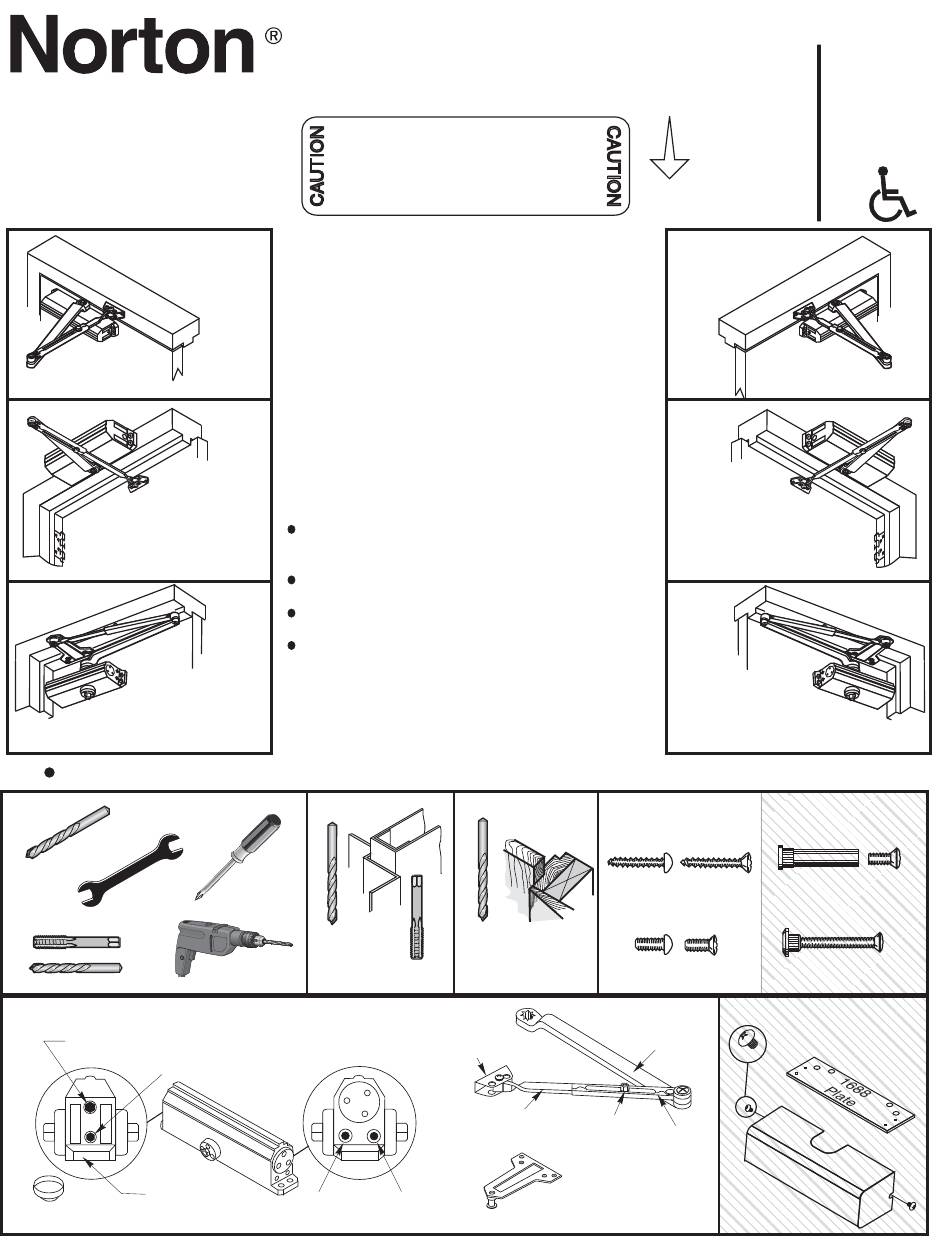

Norton 1600 Series Installation Instructions Manual

Tri-Style
1600 Series

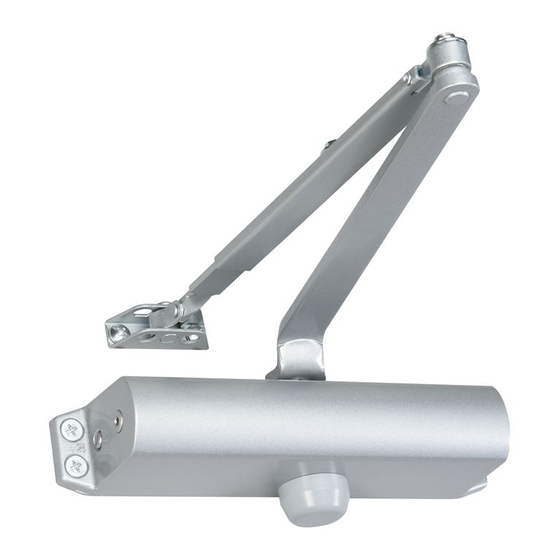

Non Handed Door Closer
Regular Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Left Hand Door - LH
Right Hand Reverse - RHR
These door closers should NOT be installed on the exposed side (weather side) of exterior doors.
Spring Power Adjustment Screw
1601(BF) Series Only
"BC" Valve
4
Closer
Size
Stamp
Pinion Cap
Installation Instructions
An Incorrectly installed or improperly adjusted
door closer can cause property damage or
personal injury. These installation instructions
should be followed to avoid the possibility of
misapplication or misadjustment.
Installation
See Page 2
"DA" suffix (Delayed Action) is an optional
feature. A separate sheet is supplied
showing closer adjustments.
NOTE: For special applications a separate
door and frame preparation template is
packed with these instructions. Use this
instruction sheet for installation sequence
Top Jamb
Installation and closer adjustments only.
See Page 5
Doors should be hung on ball bearing or
anti-friction hinges.
A separate door stop is recommended.
Door and frame must be properly
reinforced.
Adjust closing time speed between 3 and 7
Installation
See Pages
3 & 4
#7
Metal

Standard Components

Closer Body
"L"Valve
80-9316-2502-020 (10-08)
7/32"
1/4-20
Wood
Regular Arm/Top
Jamb Shoe
Connecting Rod
1618A Soffit Plate
"S"Valve
Used with Parallel
Arm Closers Only
Non Hold Open Models
Sized
(Sizes 2,3,4,5,6)
Weaker
1602BC
-
1603BC
1604BC
1605BC
Stronger
1606BC
+
Regular Arm
Installation
See Page 2
Top Jamb
Installation
See Page 5
Parallel Arm
Installation
See Pages
3 & 4
#14 Screws
for Wood drill 7/32
Machine Screws
#7 Drill, 1/4-20 Tap

Arm Assembly

Main Arm
Forearm
Arm Slide
Screw
Soffit Plate
Adjustable
(Sizes 3 thru 6)
1601
(Sizes 1 thru 4)
1601BF
Left Hand Door - LH
Right Hand Reverse - RHR
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Door - RH
Left Hand Reverse - LHR
(Optional)
Sleeve Nut and Bolt
Drill 9/32 thru from Closer Side
3/8 Drill other side
Thru Bolt and Grommet Nut
Drill 9/32 thru from Closer Side
3/8 Drill other Side

Optional Components
