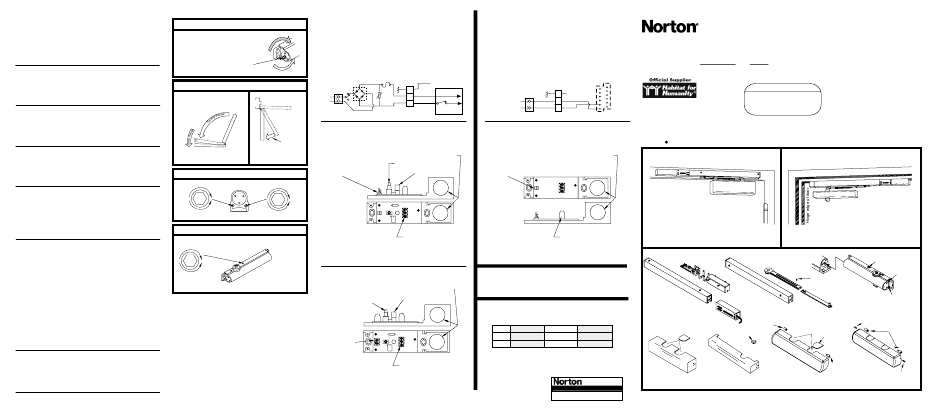

Norton Power Track Series Installation Instructions

DOOR CLOSER ADJUSTMENTS

Closing Power Control
NOTE: Maximum of 20 360° turns

Arm Attachment to Track

Insert arm stud into slide block in track.
Secure by pushing in on the retainer clip that extends from
the slide block, until it is flush with the slide block, see
illustration on page 4 of these instructions.

Hold Open Angle:

Place door in the Hold Open position. Remove 9/64" hex
drive socket head screw from arm. Open door to desired

Hydraulic Control

angle and install hex-drive socket head screw into hole in
adjusting rod that is aligned with the hole in the adjusting
tube.

Closing Power

Closing Power can be increased by 50%.
To increase power, see Figure 1, rotate "Spring Adjustment
Shaft clockwise using a 5/16 " socket or adjustable
wrench . 20 full turns (360°) will provide maximum available
power. Product is shipped set at 10 full turns.

Closing Cycle

(hydraulic control)
See figure 2A.
Valve "L" controls door speed in Latch range .
Valve "S" controls door speed in Sweep range .

Closing Speed

Use 1/8" hex-key furnished and adjust as shown in figure 3.

Opening Cycle

(hydraulic control)
See figure 2B.
Check valve cushions (slows) door opening in the
backcheck range.
Note: Never close this valve completely or damage to closer
may occur.

Backcheck

Use 1/8" hex-key furnished and adjust as shown in figure 4.
Increase

Installation of Cover:

• Full cover: Slide cover insert into the un-used cutout in
cover. Install cover using screws provided.
1/8"
Hex
• Narrow cover: Install cover using screws provided. Install
Key
pinion cap onto pinion shaft by hand or with a Phillips
screw driver - DO NOT OVER TIGHTEN.
• Full metal cover: Fasten cover to mounting clips with Decrease
screws provided.
• Architectural plastic cover: Slide cover insert into the un-
used cutout in cover. Install standoffs in ends of closer.
Snap cover onto standoffs. This cover not suitable for
PUSH (stop) SIDE applications.
• Architectural metal cover: Remove cover insert where
IMPORTANT!
pinion is located. Install standoffs in ends of closer. Install
After making all wiring connections:
cover using screws provided. This cover not suitable for
• Turn power to unit
PUSH (stop) SIDE applications.
green LED should be illuminated.)
• Metal hook-up box cover: Fasten with four screws
• Open door to the hold open position. Manually pull door
provided.
out of hold open and release ... door should close.
• Again, open door to the hold open position.

Hold Open Power Adjustment:

"Test Switch" button on the hook-up board
If more hold open power is required, the power may be should close.
increased by turning the adjustment screw in the end of the
• Fasten hook-up box cover with four screws provided.
track nearest the hinges. Use 9/64" hex wrench provided
and rotate adjustment screw clockwise to increase holding
power.
Page 5
WIRING INSTRUCTION
Figure 1.
24VAC/DC or 120VAC
Increase
of Spring Adjustment Shaft
Input voltage supplied must match label rating on hook-up box.
TYPICAL WIRING DIAGRAM
Spring Adjustment Shaft
Decrease
+ -
Fig. 2A Fig. 2B
TO
SOLENOID
24VAC/DC HOOK-UP BOX
Backcheck
Closed
Range
Closing Cycle Opening Cycle
Header for
solenoid connection
Figure 3.
Slow Slow
Latch Sweep
Valve Valve
1/8"
1/8"
Hex
Hex
Key
Key
L S
Fast Fast
Figure 4.
Backcheck Valve*
120VAC HOOK-UP BOX
*NEVER close this valve
completely.
Test Switch
"on" . (On Master (PTD) unit only,
Solenoid
Connection
Depress
... door
80-9380-2211-020 (04-06)
Page 6
"PT" "PTS"
WIRING INSTRUCTION
24VDC ONLY
Typical wiring terminals 1 and 2 will connect
to terminals 5 and 6 from "PTD" unit
TYPICAL WIRING DIAGRAM
EARTH GROUND
3
ALARM PANEL
3
+
2
+
2
-
TO
1
-
SOLENOID
1
DOOR HOLDER
PANEL CIRCUIT
HOOK-UP BOX
Openings for surface
or concealed wiring
Test Switch
Header for
solenoid connection
3/4 AMP Fuse
3
2
1
Terminal strip for Terminal strip for
power input connections power input connections
1. Neutral (24 VAC/DC)
2. Positive (24VAC/DC)
3. Earth Ground
For PTD Models:
Openings for surface
Refer to "Power Track" "Wiring Instructions"
or concealed wiring
No. 80-9342-0900-021 for making wiring conenctions.
3/4 AMP fuse
SPECIFICATIONS:
120VAC 24VAC
Voltage 120VAC + 10%-15% 24VAC + 10%-15%
3
2
Current .018 AMPS .090 AMPS
1
NOTES: 1. Maximum wire size is 14AWG.
2. All wiring and connections use
Terminal strip for
standard wiring practice conforming
power input connections with local wiring codes.
1. Neutral (120VAC/DC)
2. Positive (120VAC/DC)
3. Earth Ground
An ASSA ABLOY Group Co.
1902 Airport Road, Monroe, NC
Telephone:(800)-438-1951; Fax: (800)-338-0965
www.nortondoorcontrols.com
Installation Instructions
80-9380-2211-020 (04-06)
Combination Door Closer-Holder and
Releasing Device WITHOUT and
Integral Smoke Detector
EARTH GROUND
NOTE: For special applications a separate door and frame preparation template is packed with these instructions.
Use this instruction sheet for installation sequence and closer adjustments only.
Use of an auxiliary door stop is always recommended.
Openings for surface
or concealed wiring
3
2
1
8500PTD
PULL SIDE
illustrated
LH – Left Hand Door
RHR – Right Hand Reverse
1. Neutral (24 VDC)
2. Positive (24VDC)
Hook-Up Box Chassis
3. Earth Ground
And Cover
Stop (Push) Side Hinge (Pull) Side
Slide Track Slide Track
Smoke Detector
24VDC
Pinion Cap
24VDC + 10% -15%
.090 AMPS
Narrow Cover
Cover with Insert
Door Controls
* This cover is only available for PULL SIDE applications.
Power Track Series
Master Unit – PTD
(with detector)
Support Unit - PT
(without detector)
Slave Unit - PTS
(without detector)
Models
WITH
Hinge (Pull) Side of Stop (Push) Side of
Door Application Door Application
8300 PTD P8300 PTD
CAUTION 8500 PTD P8500 PTD
An incorrectly installed or improperly 8300 PT/PTS P8300 PT/PTS
adjusted door closer can cause property
damage or personal injury. These instructions 8500 PT/PTS P8500 PT/PTS
should be followed to avoid the possibility
of misapplication or misadjustment.
NOTE: For wiring of PTD models, see "Power Track"
"Wiring Instructions" No. 80-9342-0900-021
P8300PTD
PUSH SIDE
illustrated
LH – Left Hand Door
RHR – Right Hand Reverse
Components:
Backcheck Valve
Latch Valve
Spring
9/64"
Adjustment
Hex Drive
Socket Screw Shaft
Closer Body
Sweep Valve
Arm Assembly
Cover Screw
Standoff
Insert Cutouts
Standoffs
Cover
Insert
Standoff
Cover Screws
Optional Architectural Plastic *
Optional Architectural *
Full Cover with Insert
Metal Cover
