80-9357-0110-020 Rev. A
Series 5710–Door Openings 85° to 110° or 111° to 180°
Rigid Arm and Slide Track Application
Maximum Hinge Side Frame Reveal to 1/8" (3mm)
Hinge (Pull) Side of Door Installation
• U.L. labeled fire or smoke barrier door assemblies require that
the 120VAC (60Hz) power input to the
supplied through normally closed alarm contacts of the alarm
system/alarm panel.
• Power input to
LEO
door operator must be 120 VAC (60Hz) to
terminals HOT and COM at terminal strip T1. Earthground
(GND) to green screw on Backplate.
• All wiring must conform to standard wiring practice in
accordance with national and local wiring codes.
• Note: Unless otherwise noted, all dimensions are given in
inches (millimeters).
120 VOLT POTENTIAL PRESENT. MAKE SURE
POWER IS TURNED OFF DURING
INSTALLATION PROCEDURE.
Requirements
General Templating Information
Installation Template
Component Layout
Installation Sequence
Installation Sequence Continued
General Electrical Data
80-9357-0110-020 Rev. A
Right Hand Door
1-1/2" (38mm)
Min. Frame
Face
Door Thickness
2-1/4" (57mm) Max.
LEO
door operator be
ARNING
1-3/4" (44mm) Min.
Requirements
• Minimum suggested and required material thickness for hollow
metal frames (skin plus reinforcement) is charted on Page 2.
• For wiring refer to Wiring Instructions on Pages 5 thru 8.
• Unit is Non-Handed.
• Door must be hung on butt hinges [5" (127mm) max. width] or
3/4" (19mm) offset pivots. A separate door and frame
preparation template will be supplied for other conditions.
• Door must swing freely through the entire opening and closing
cycle before beginning the installation.
• Use of a supplemental door stop is always recommended.
1
Input Power Configuration
2
Inverter Details
2
Wiring Diagram - Standard Function with Switches
3
Wiring Diagram - Optional Radio Frequency Function
3
Wiring Diagram - Fail Safe / Fail Secure Electric Strike
4
Wiring Diagram - Fail Safe Electromagnetic Lock
5
A.D.A / UL Information
5700 LEO
™
Low Energy Power Operator
Installation Instructions
Left Hand Door
6" (152mm)
Min. Ceiling
Clearance
Frame
Reveal
An incorrectly installed or improperly
adjusted door operator can cause property
damage or personal injury. These
instructions should be followed to avoid the
possibility of misapplication or
misadjustment.
5
6
6
7
7
8
8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Norton LEO 5710 Series
Summary of Contents for Norton LEO 5710 Series

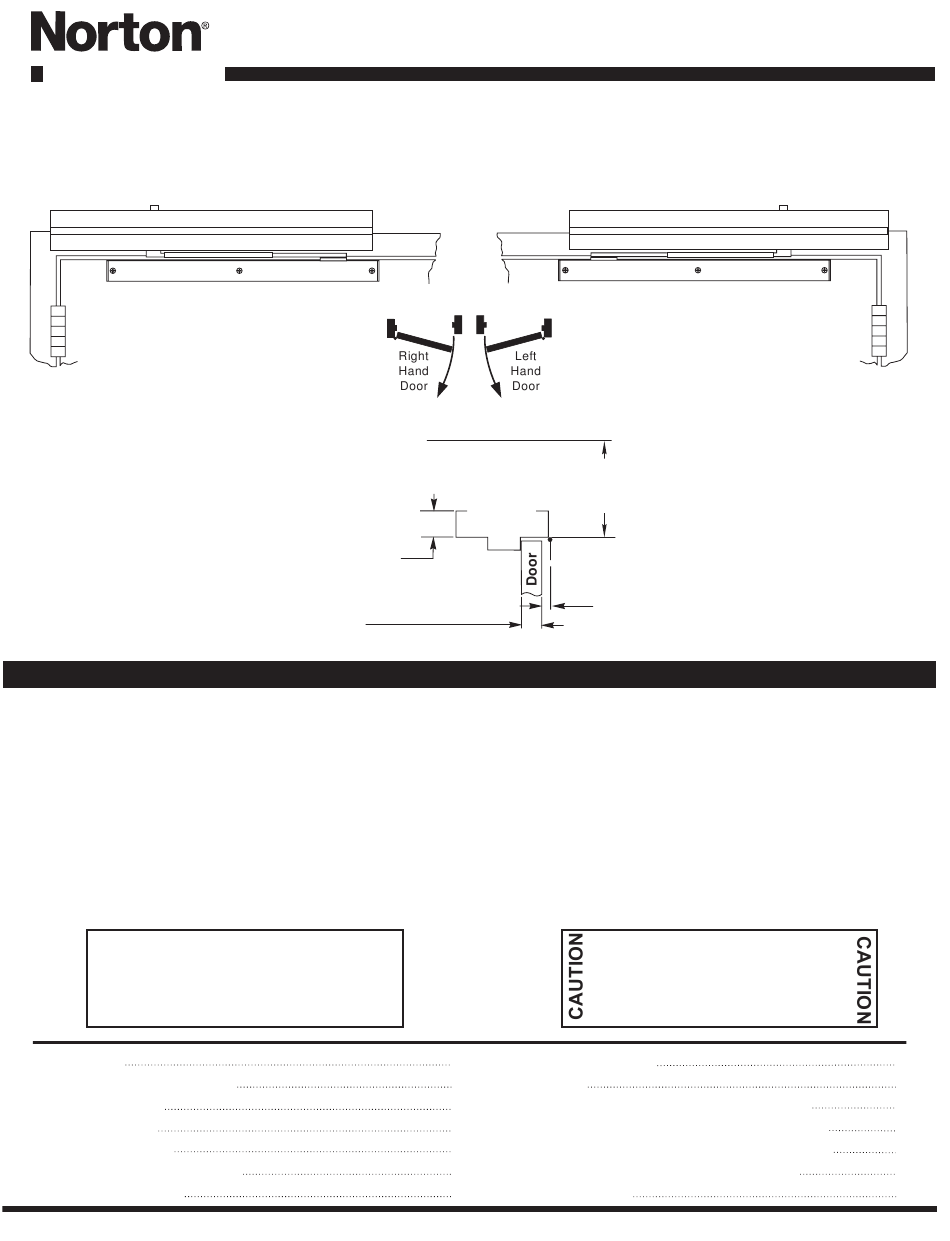

- Page 1 5700 LEO ™ Low Energy Power Operator Installation Instructions 80-9357-0110-020 Rev. A Series 5710–Door Openings 85° to 110° or 111° to 180° Rigid Arm and Slide Track Application Maximum Hinge Side Frame Reveal to 1/8” (3mm) Hinge (Pull) Side of Door Installation Right Hand Door Left Hand Door 6”...
- Page 2 General Templating Information WARNING: Make sure that (120V, 60Hz) input power is turned off at facility’s main circuit breaker before proceeding with installation. General Templating Information Fasteners for Frame • Before beginning the installation, verify that the door frame is •...
-
Page 3: Component Layout
Component Layout INVERTER 1600 SERIES MOTOR ASSEMBLY CLOSER BODY RF POWER SUPPLY (optional) BREAKER SWITCH POWER SWITCH BACKPLATE REED SWITCH SLIDER OPEN / CLOSE POSITIONING ASSEMBLY CHAIN PINION EXTENSION / CLUTCH ASSEMBLY ACCESSORY TERMINAL (4-POSITION) BUFFER STOP “T1” POWER INPUT TERMINAL (3-POSITION) SLIDE ARM SLIDE TRACK... - Page 4 Installation Sequence Continued Step 13: Turn power to unit on at the Unit Power Switch and turn the Step 9: Adjust closing power of unit (See Fig. 3) - Using a 1/8” Breaker Switch to “RESET”. allen wrench, turn the power adjustment shaft clockwise to increase door closing power.
- Page 5 General Electrical Data Maximum current draw of unit is 0.6 amps. Maximum wire size is: Breaker Switch protects the motor assembly and inverter and 12AWG at terminals HOT and COM on “T1” Power Input has a 5 amp rating. Terminal. 14AWG at terminals 1 thru 4 on Accessory Terminal .
- Page 6 Component Layout Inverter Details DESCRIPTION FUNCTION CW - Increase Obstruction Detection on Open CCW - Decrease CW - Increase Door Open Speed CCW - Decrease CW - Increase Motor Reversing Speed CCW - Decrease CW - Increase DEC/B Hold Open Time (5 - 30 Seconds) CCW - Decrease Full CW - Push Door Mounting (Factory Set)
- Page 7 Radio Frequency Function Option Notes: 1. Power input to Door Operator Unit is at “T1” Power Input Terminal (not shown) 120VAC 60Hz. 2. Radio Frequency Feature can be purchased as a separate kit. Ground Optional Door 2 Door 1 ORANGE RECEIVER WIRING FOR BLACK...
- Page 8 Fail Safe Electromagnetic Lock 24VDC Wiring Notes: 1. Power input to Door Operator Unit is at 120VAC “T1” Power Input Terminal (not shown) Supplied by 24VDC Out 120VAC 60Hz. Others 2. Current draw must not exceed 1.200 Amps at Accessory Terminal 3. Wall Switch, Card Reader, Key Switch, etc.
- Page 9 111° to 180° 13-1/4 (337) Series 5710 LEO™ – Door Openings 85° to 110° or 111° to 180° Rigid Arm and Slide Track Application Norton Door Controls Maximum Hinge Side Frame Reveal to 1/8” (3mm) www.nortondoorcontrols.com Hinge (Pull) Side of Door Installation...
- Page 10 9-1/2 (241) 13-1/4 (337) Frame Rabbet REVEAL Series 5730 LEO™ – Door Openings 85° to 110° or 111° to 180° Norton Door Controls Double Lever Arm Application for Frame Reveals 3” (76) to 7” (178mm) www.nortondoorcontrols.com Stop (Push) Side of Door Installation...
- Page 11 5700 LEO ™ Low Energy Power Operator Installation Instructions 80-9357-0130-020 Rev. A Series 5730–Door Openings 85° to 110° or 111° to 180° Double Lever Arm Application for Frame Reveals 3” (76) to 7” (178mm) Stop (Push) Side of Door Installation Left Hand Door Right Hand Door Left...
- Page 12 General Templating Information WARNING: Make sure that (120V, 60Hz) input power is turned off at facility’s main circuit breaker before proceeding with installation. General Templating Information Fasteners for Frame • Before beginning the installation, verify that the door frame is •...
- Page 13 Component Layout Component Layout INVERTER INVERTER 1600 SERIES MOTOR ASSEMBLY MOTOR ASSEMBLY CLOSER BODY CHAIN CHAIN RF POWER SUPPLY (Optional - For RF Units Only) BREAKER SWITCH BACKPLATE BACKPLATE REED SWITCH REED SWITCH OPEN / CLOSE POSITION RINGS PINION EXTENSION / SHOE / ADJUSTING CLUTCH ASSEMBLY SHOE...
- Page 14 Installation Sequence Continued Step 13: Turn power to unit on at the Unit Power Switch and turn the Step 9: Adjust closing power of unit (See Fig. 3) - Using a 1/8” Breaker Switch to “RESET”. allen wrench, turn the power adjustment shaft clockwise Breaker to increase door closing power.
- Page 15 General Electrical Data Maximum current draw of unit is 0.6 amps. Maximum wire size is: Breaker Switch protects the motor assembly and inverter and 12AWG at terminals HOT and COM on “T1” Power Input has a 5 amp rating. Terminal. 14AWG at terminals 1 thru 4 on Accessory Terminal .
- Page 16 Component Layout Inverter Details DESCRIPTION FUNCTION CW - Increase Obstruction Detection on Open CCW - Decrease CW - Increase Door Open Speed CCW - Decrease CW - Increase Motor Reversing Speed CCW - Decrease CW - Increase DEC/B Hold Open Time (5 - 30 Seconds) CCW - Decrease Full CW - Push Door Mounting (Factory Set)
- Page 17 Radio Frequency Function Option Notes: 1. Power input to Door Operator Unit is at Power Input Terminal (not shown) 120VAC 60Hz. 2. Radio Frequency Feature can be purchased as a separate kit. Ground Optional Door 2 Door 1 ORANGE RECEIVER WIRING FOR BLACK BOARD...
- Page 18 Fail Safe Electromagnetic Lock 24VDC Wiring Notes: 1. Power input Door Operator Unit is at 120VAC Power Input Terminal Strip (not shown) Supplied by 24VDC Out 120VAC 60Hz. Others 2. Current draw must not exceed 1.200 amps at Accessory Terminal 3. Wall Switch, Card Reader, Key Switch, etc.
