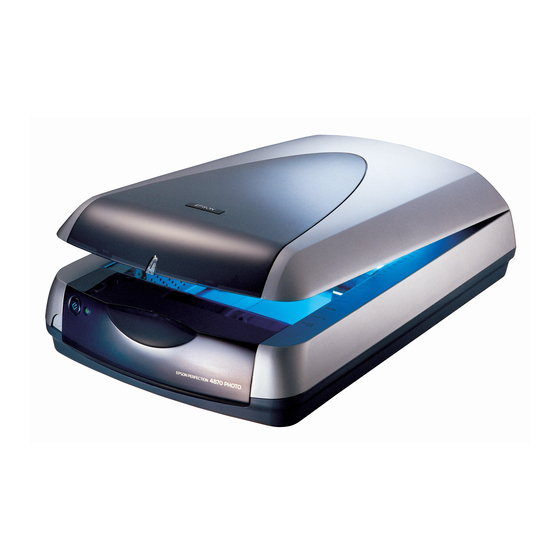

Epson Perfection 4870 Product Information

Epson perfection 4870: product information
Hide thumbs Also See for Perfection 4870:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: Quick Manual

Scanner Parts

Transportation
lock
Document
table
Start button
]
Indicator
light
Power button
P
USB port
IEEE 1394 port
Power cord
TPU indicator light
Document
cover
Carriage and
lamp (in the
home position)
Transparency unit
(TPU) connector
Transparency unit
(TPU) under lid
Transportation lock
(in unlocked position)

Scanner Specifications

Basic Specifications
Scanner type
Photoelectric
device
Effective pixels
Maximum
document size
Optical resolution 4800 dpi
Maximum
resolution*
The maximum hardware resolution of 4800 × 9600 dpi is achieved
*
using EPSON's Micro Step Drive
Maximum
interpolated
resolution
Output resolution 25 to 12,800 dpi in 1 dpi increments
Speed (color)
Command level
Pixel depth
Brightness
Interface
Light source
Reliability
(MCBF)
Dimensions
Weight
12/03
EPSON Perfection 4870 Series
Flatbed, color
Color CCD line sensor
40,800 × 56,160 pixels at 4800 dpi
US letter or A4 size
(8.5 × 11.7 inches [216 × 297 mm])
4800 dpi (main scan) × 9600 dpi hardware
(sub scan)
™
technology.
12,800 dpi
16.9 msec/line at 4800 dpi
4.1 msec/line at 600 dpi
ESC/I (B8), FS
16 bits per pixel (input and output)
7 levels (in EPSON Scan, gamma
correction controls brightness)
USB 1.1/2.0 (Type B receptacle connector)
IEEE 1394 (FireWire)
White cold cathode fluorescent lamp
36,000 cycles of carriage movements
(scanner)
Width: 12.0 inches (30.4 cm)
Depth: 18.7 inches (47.6 cm)
Height: 5.3 inches (13.4 cm)
Approx. 14.8 lb (6.7 kg)
EPSON Perfection 4870 Series - 1
