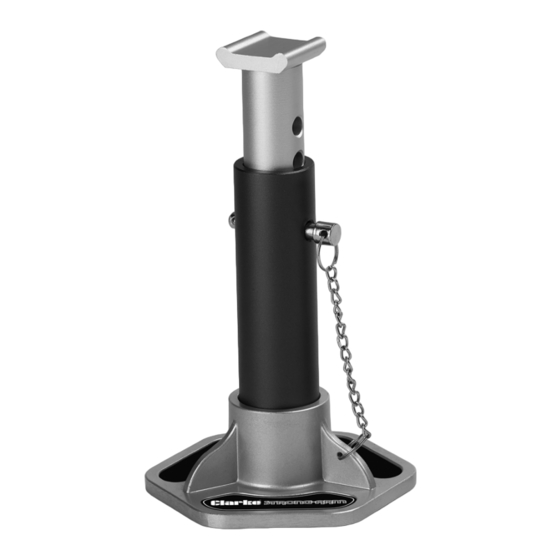

- Page 1 ALUMINIUM AXLE STANDS (PAIR) MODEL NO: CAX3TAB PART NO: 7600035 USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0821 rev 1...
- Page 2 SAFETY WARNINGS Read these instructions carefully before • use. • Do not exceed the axle stands maximum load (1.5 tonne each / 3 tonne per pair), The vehicle weight will be stated in the owners manual. • Use only as specified in this manual. •...
- Page 3 ASSEMBLY Slide the lower column into the base. 2. Secure in place using the spring washer and bolt as shown on the right. USING THE AXLE STANDS WARNING: BEFORE USE, MAKE SURE THAT THERE IS NO DAMAGE TO ANY PART OF THE AXLE STAND, IF THERE IS, DO NOT USE. WARNING: DO NOT EXCEED THE RATED LOAD OF 3 TONNE PER PAIR OR 1.5 TONNE PER STAND.
- Page 4 LOWERING THE VEHICLE Slowly lower the vehicle onto the centre of the saddl WARNING: DO NOT LOAD THE STANDS OFF CENTRE. FAILURE TO HEED THIS WARNING MAY CAUSE DAMAGE, INJURY OR LOSS OF LIFE. REMOVING THE AXLE STANDS 1. Raise vehicle clear of the axle stands. 2.
