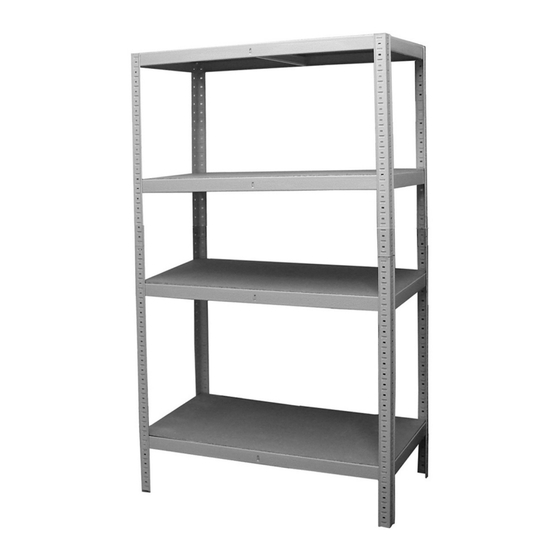

- Page 1 5-SHELF BOLTLESS SHELVING UNITS MODEL NO: CSR4200 PART NO: SEE TABLE PAGE 2 ASSEMBLY INSTRUCTIONS GC0416...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Shelving Unit. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 INVENTORY Description Quantity Post Shelf Long Beam Short Beam Support Beam Post Joining Insert Plastic End Cap Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 4 ASSEMBLY ADVICE 1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet. 2. Use a cloth or softwood block to protect the surface finish of the product when using a mallet. Strike the flat surface of each beam to prevent damage to the beam.
- Page 5 2. Ensure the tabs lie flat against the surface of the post. 3. Join the two end assemblies together with the long beams (C). 4. Connect the support beams (E) to the long beams (C). First bend the flexible tabs to 90 degrees to pass them through the slotsin the long beams.
- Page 6 8. Fit post joining inserts (F) into the posts (A), ensuring that the inserts are fitted with their tabs to match the slots of the posts. 9. Construct more upper end assemblies onto the post inserts (F) before adding more long beams and support beams as previously to complete the framework.
- Page 7 GENERAL SAFETY RULES 1. Always maintain shelving in good condition for the best/safest performance. 2. Never exceed the maximum load for these shelving units as stated in the specification. 3. Never use these shelving units if they are damaged. 4. Always load small, stable items on the top shelves, heavier and bulky items should be stored on the lower shelves.
