Summary of Contents for Clarke CES560

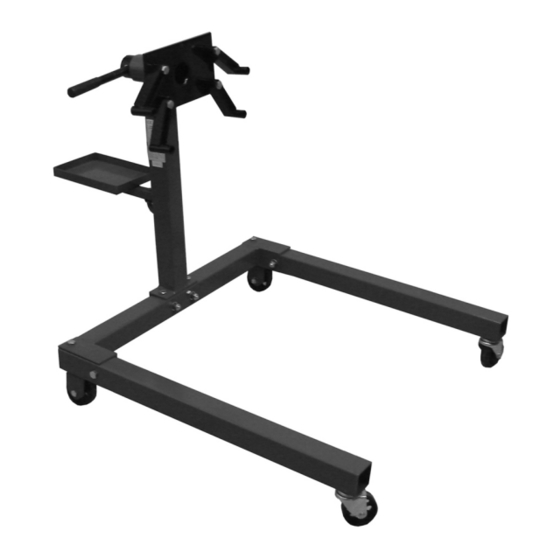

- Page 1 ENGINE STAND MODEL NO: CES560 PART NO: 7610123 USER INSTRUCTIONS GC0315...
-
Page 2: Technical Specifications
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Safety Precautions
3. Ensure that the stand is in good working order. Have any damaged parts repaired or replaced immediately. Use genuine Clarke parts only. The use of unauthorised parts may be dangerous and invalidate the guarantee. -
Page 4: Unpacking And Assembly
1 x Fixings kit including nuts, bolts, washers and locating pin. Visually inspect all components to ensure that no damage was suffered in transit. Any deficiencies should be reported to your CLARKE dealer immediately. TOOLS REQUIRED • Open or ratchet ring spanner (19 mm) or an adjustable wrench. -
Page 5: Inspection Before Use
ASSEMBLY IMPORTANT: Due to the weight of the components, we recommend that you get assistance during assembly. 1. Loosely bolt the column to the rear cross member. 2. Loosely bolt the side arms to the rear cross member. 3. Bolt the straight castors to the brackets on side arms. - Page 6 MOUNTING THE ENGINE TO THE STAND 1. The mounting plate has four adjustable arms with long bolt holes. This is where the engine will mount to the engine stand, using suitable bolts which are compatible with the threaded holes in the engine block. 2.
-
Page 7: Parts Diagram
PARTS DIAGRAM PART NO DESCRIPTION PART NO DESCRIPTION Main Column assembly Bolt (1/2” x 2.1/2”) Side Arm Flat Washer Rear Crossmember Hex Nut Bolt (1/2” x 3.1/2”) Parts Tray Locking Washer Rotation Handle Hex Nut (1/2”) Warning Label Bolt 1/2” x 1” Rear Wheel Mounting Plate Front Castor Wheel...
