Summary of Contents for Clarke Strong-Arm CES680

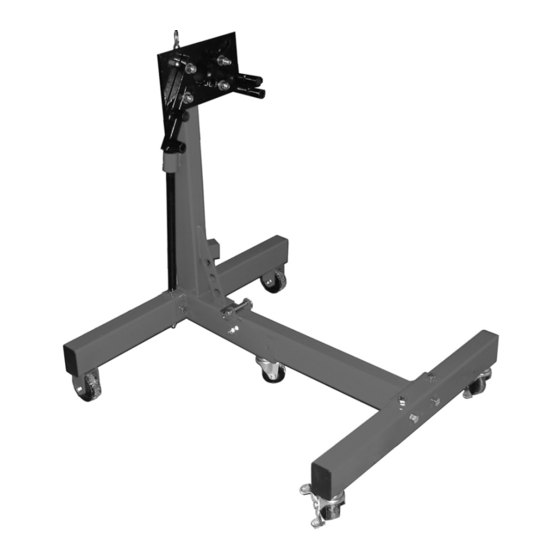

- Page 1 FOLDING ENGINE STAND MODEL NO: CES680 PART NO: 7610122 ASSEMBLY & USER INSTRUCTIONS GC0315...
-
Page 2: Technical Specifications
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. - Page 3 4. Do not use the stand if it is damaged. 5. Use the stand in a suitable, well lit work area. 6. Keep the work area clean and tidy and free from unrelated items. 7. Do not use the stand when you are tired or under the influence of alcohol, drugs or intoxicating medication.
- Page 4 1 x Fixings kit including nuts, bolts, washers and locating pin Visually inspect all components to ensure that no damage was suffered in transit. Any deficiencies should be reported to your CLARKE dealer immediately. TOOLS REQUIRED Open or ratchet ring spanners (19 mm) or an adjustable wrench.
- Page 5 ASSEMBLY 1. Loosely bolt the supporting column to the rear crossmember. 2. Loosely bolt the centre spine to the front crossmember. 3. Secure the braked castors to the front crossmember with nuts and washers. 4. Fit the wheels to the rear cross- member using the small washers and split-pins.
- Page 6 10. Ensure that all weight is spread evenly across all sections, making sure that all wheels/castors are on level ground and that the assembly is sitting square and true. Tighten all nuts and bolts. 11. Store the operating handle in the socket provided when not in use. MOUNTING THE ENGINE TO THE STAND 1.
- Page 7 9. Once you are confident that the stand is supporting the weight of the engine, disconnect the hoist. Now that the engine is mounted to the stand it can be rotated around to access all sides of the engine. Use the locking pin to lock the engine at one of four different working angles.
