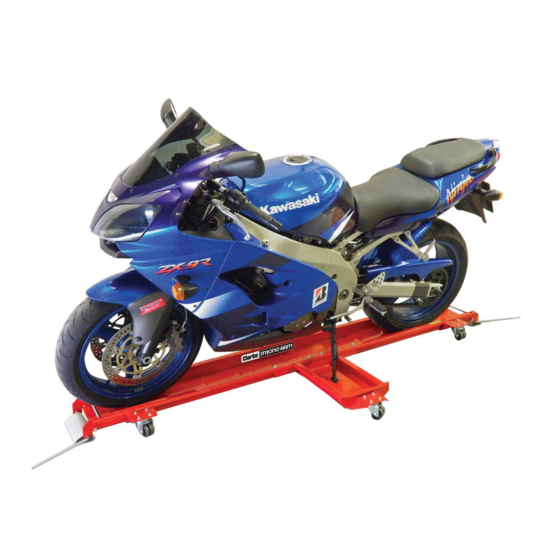

- Page 1 MOTORCYCLE DOLLY MODEL NO: MCD1 PART NO: 7610139 OPERATION & MAINTENANCE INSTRUCTIONS LS0515...
- Page 2 GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
- Page 3 SAFETY INSTRUCTIONS AND WARNINGS PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP THIS INSTRUCTION MANUAL SAFE FOR FUTURE USE. SAFETY INSTRUCTIONS AND WARNINGS 1. Maintain the dolly in good condition. Keep it clean for best and safest performance. 2. The maximum load is 567Kg (1250 Lbs). DO NOT exceed this rated capacity.
- Page 4 OVERVIEW ESCRIPTION ESCRIPTION Frame Assembly JMMCD101 Stopper Rods JMMCD110 Castor Assembly JMMCD102 Hex Bolt M8 JMMCD111 Hex Bolt M6 JMMCD103 Flat Washer M8 JMMCD112 Flat Washer M6 JMMCD104 Spring Washer M8 JMMCD113 Spring Washer M6 JMMCD105 Nut M8 JMMCD114 Nut M6 JMMCD106 Countersunk Bolts M8 JMMCD115 Connecting Plate...
- Page 5 ASSEMBLY 1. Fit a connecting plate (7) to one end of the frame assembly (1) as shown. 2. Slide one of the carriages (9 or 18) into the hole on the connecting plate (7) as shown. 3. Slide another connecting plate (7) over the carriage handle and fix it to the frame assembly as shown.
- Page 6 7. Fit the side table (17) to the frame assemblies using countersunk bolts (15), flat washers (12), spring washers (13) and nuts (14). • The side table can be fitted to one of 5 spaces either side of the frame, depending on where the kickstand is located on the motorbike.
- Page 7 6. ALWAYS have the carriage handles in the down position when working on the motor cycle, to stop the dolly from moving. SPECIFICATIONS Model Number MCD1 Maximum Load 1250 lbs (567 kg) Weight 30.3 kg Maximum Tyre width 200 mm...
