ITOH DENKI POWER MOLLER HBL-606FN Technical Document

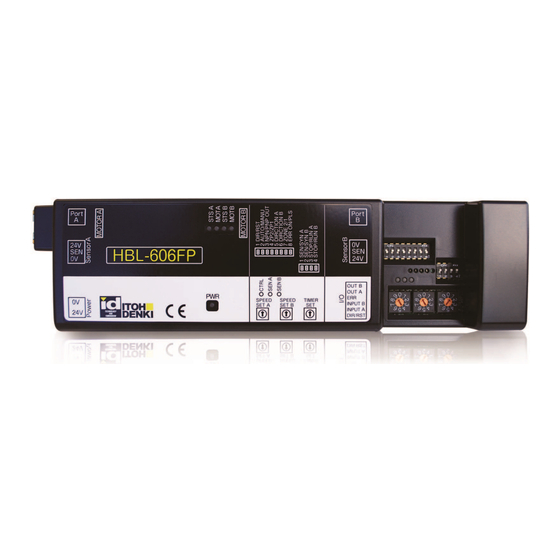

HBL-606FN/FP Technical Document

General Features

•
Operates LE and LD series motors
•
Runs one or two Power Mollers in one or two zone configurations
3 pin motor connector only
o
•
LED indications for operation and error statuses
•
Automatic or manual recovery for error statuses
•
Motor protection against overheating, stall condition and overspeeding
•
Lead free design for RoHS conformity
•
Logic for general zero pressure accumulation (ZPA) is built-in
Singulated release
o
Slug (train) release with Flexible Zone Recognition (patented)
o
•
Direct connection for two photo-sensors for power and signal
•
Easy connection between adjacent HBL-606F's with communication cables simplifies wiring
•
Independent speed control for each motor
•
Adjustable timers by rotary switch
•
Automatically detects the end of a conveyor line for accumulation when the communication cable is disconnected
•
Stable speed function to ensure that different weight articles travel at the same rate
•
Enclosure is made from fire resistant ABS
PH: 570-820-8811
FX: 570-820-8838
Specifications subject to change without notice
ITOH DENKI USA, INC
135 Stewart Road
Hanover Industrial Estates
Wilkes-Barre, PA 18706-1462
rev15-0615
Page 1 of 26
