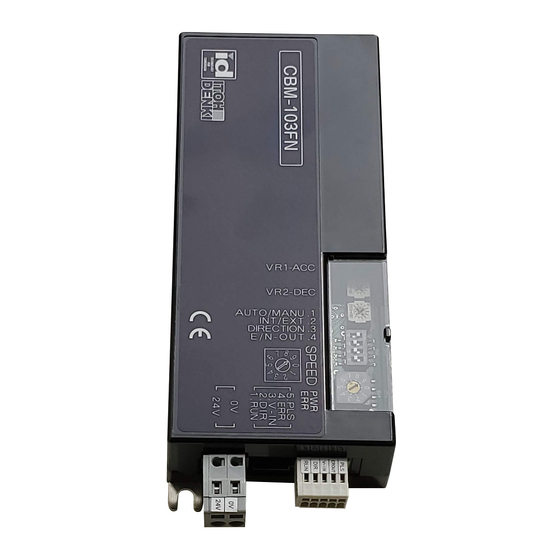

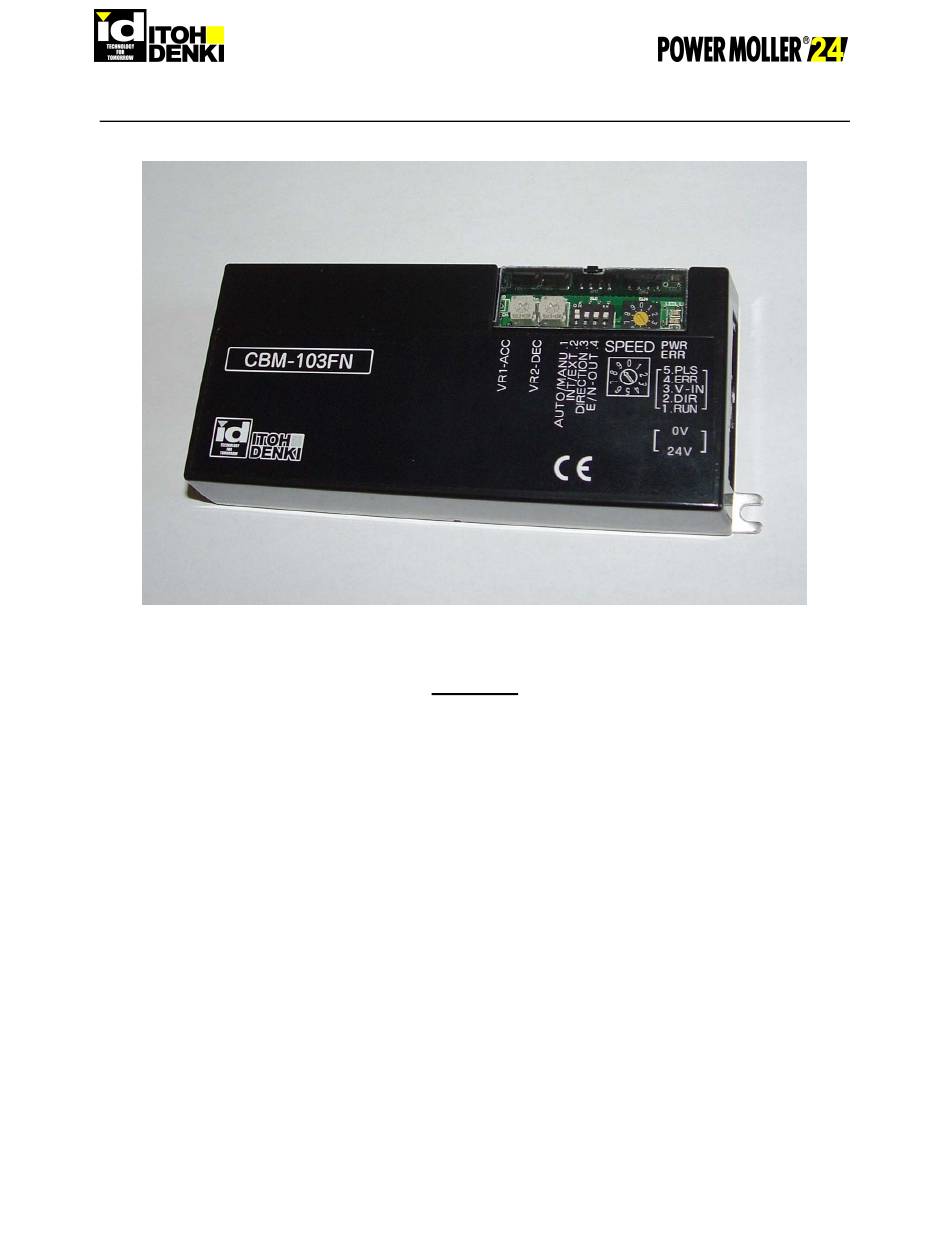

CBM-103FN/FP Circuit Board
• New driver card specifically designed for the new KE series Power
Moller® family
• Adjustable acceleration and deceleration time (0 to 2.5s)
• Stable speed operation
• Manual or automatic recovery from thermal overload and low voltage
• One (1) rotary switch to select up to 10 different fixed speeds
• Two (2) LEDs (green & red) to identify error type
• Pulse signal output to indicate motor revolution (2 pulses/motor
revolution)
• RoHS and EMC conformity
• Low Voltage Protection
• External Direction control
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
www.itohdenki.com
info@itohdenki.com
Ph: 570.820.8811
Fx: 570.820.8838
Features
ITOH DENKI, USA, INC.
135 Stewart Road
Hanover Industrial Estates
Hanover Township, PA 18706
Page 1 of 10
rev13-0514
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ITOH DENKI CBM-103FN
Summary of Contents for ITOH DENKI CBM-103FN
- Page 1 CBM-103FN/FP Circuit Board Features • New driver card specifically designed for the new KE series Power Moller® family • Adjustable acceleration and deceleration time (0 to 2.5s) • Stable speed operation • Manual or automatic recovery from thermal overload and low voltage •...
-
Page 2: Specifications
Dimensions LED2 LED1 [0.16"] 151.5mm [5.96"] [0.12"] 143.5mm [5.65"] SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 2 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811 Hanover Industrial Estates Fx: 570.820.8838 Hanover Township, PA 18706 rev13-0514... - Page 3 Motor phase V – White Terminal pins: Motor phase W – Black JST SVH-41T-P1.1 KE Motor Cable SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 3 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811 Hanover Industrial Estates Fx: 570.820.8838...
-
Page 4: Operation
WAGO connector (included) must be inserted and/or pulled out carefully, so as not to damage other parts. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 4 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811 Hanover Industrial Estates Fx: 570.820.8838... - Page 5 0~2.5s until set speed RUN signal OFF Deceleration 0~2.5s until stop VRs turn 270° SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 5 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811 Hanover Industrial Estates Fx: 570.820.8838...
- Page 6 The card(s) are ordered with the inputs preset from the factory – ALL NPN or ALL PNP. The model designation will show the factory preset. • CBM-103FN – NPN input type (Default) • CBM-103FP – PNP input type Note – the output can be manually switched in the field by DIP switch SW-3 – Output signal type...
- Page 7 ● Flashes three ● ○ times with a 1.5s pause SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 7 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811 Hanover Industrial Estates Fx: 570.820.8838 Hanover Township, PA 18706...
-
Page 8: Error List
Low voltage error resets as soon as the supply voltage rises above 18V Induced voltage error resets 1s AFTER induced voltage drops and stays below 30V SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 8 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811... -
Page 9: Installation Precautions
Over-speeding of the roller’s no- Back EMF will be generated. load speed by more than 50% may cause damage. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 9 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811 Hanover Industrial Estates Fx: 570.820.8838... -
Page 10: Revision History
Added autosensing inputs and precautions for electrical potential 13-0314 Added diode recommendation and wiring diagram 13-0514 Removed auto-sensing feature SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Page 10 of 10 ITOH DENKI, USA, INC. www.itohdenki.com info@itohdenki.com 135 Stewart Road Ph: 570.820.8811 Hanover Industrial Estates Fx: 570.820.8838...
