Chapter 4
Note:
To apply any settings you have altered on the page, please click the
the device.

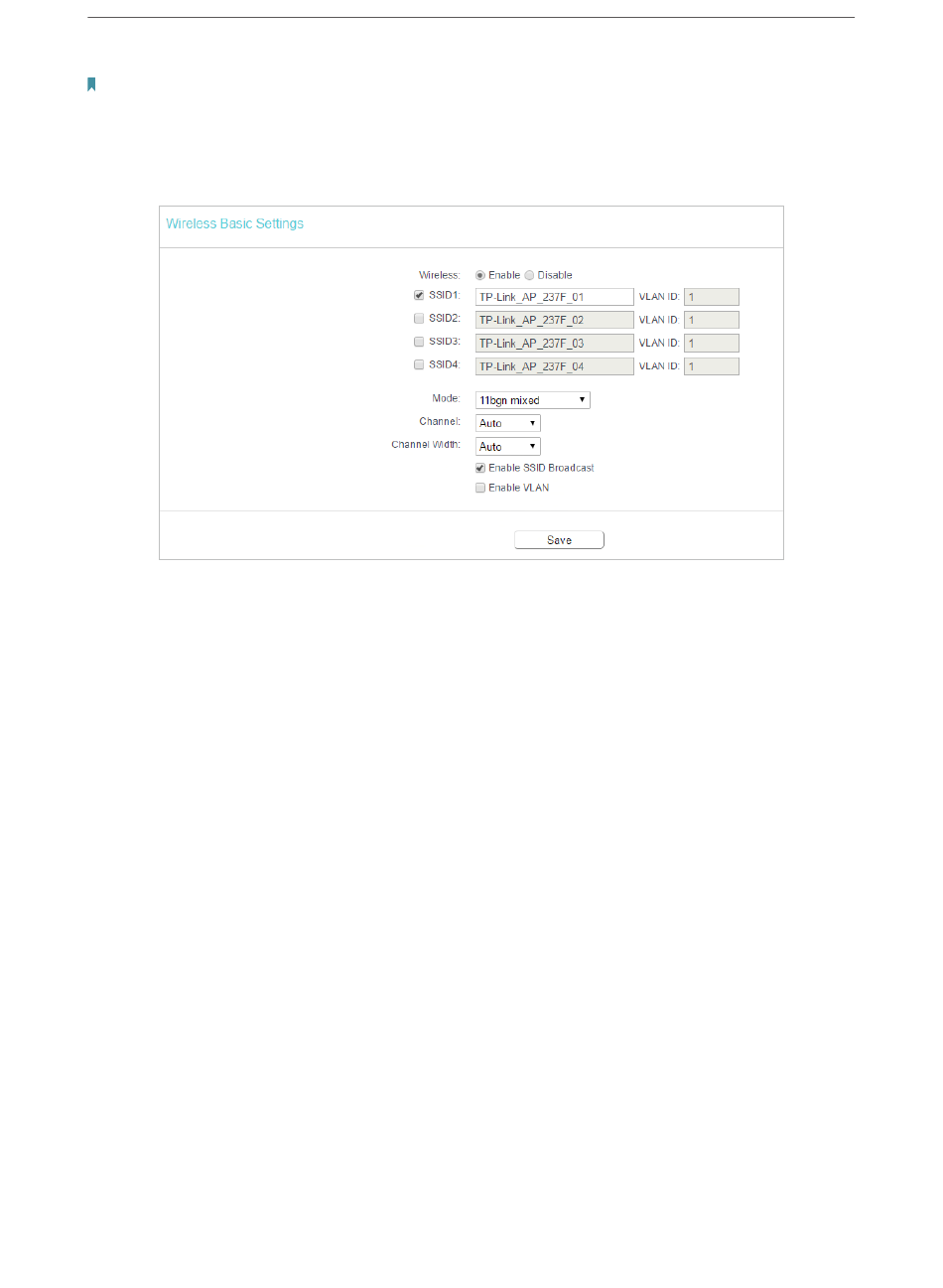

Multi-SSID Mode
• Wireless - Enable or disable wireless radio.
• SSID (1-4) - Up to four SSIDs for each BSS (Basic Service Set) can be entered in the
filed SSID1 ~ SSID4. The name can be up to 32 characters. The same name (SSID)
must be assigned to all wireless devices in your network. If Enable VLAN is checked,
the wireless stations connecting to SSID of different VLANID can not communicate
with each other.
• VLAN ID (1-4) - Provide a number between 1 and 4095 for VLAN. This will cause the
device to send packets with VLAN tags. The switch connecting with the device must
support VLAN IEEE802.1Q frames. The wireless stations connecting to the SSID of
a specified VLAN ID can communicate with the PC connecting to the port with the
same VLAN ID on the Switch.
• Mode - This field determines the wireless mode which the device works on.
• 11bg mixed
device.
• 11bgn mixed
to the device.
• Channel Width - Determines the channel width to be used. It is unnecessary to change
the default value unless required.
• Enable SSID Broadcast
will broadcast its name (SSID) on the air.
- Both 802.11b and 802.11g wireless stations can connect to the
- All 802.11b, 802.11g and 802.11n wireless stations can connect
- If you select the Enable SSID Broadcast checkbox, the AP
Configure the Access Point
Save button, and then you will be reminded to reboot
