1.4

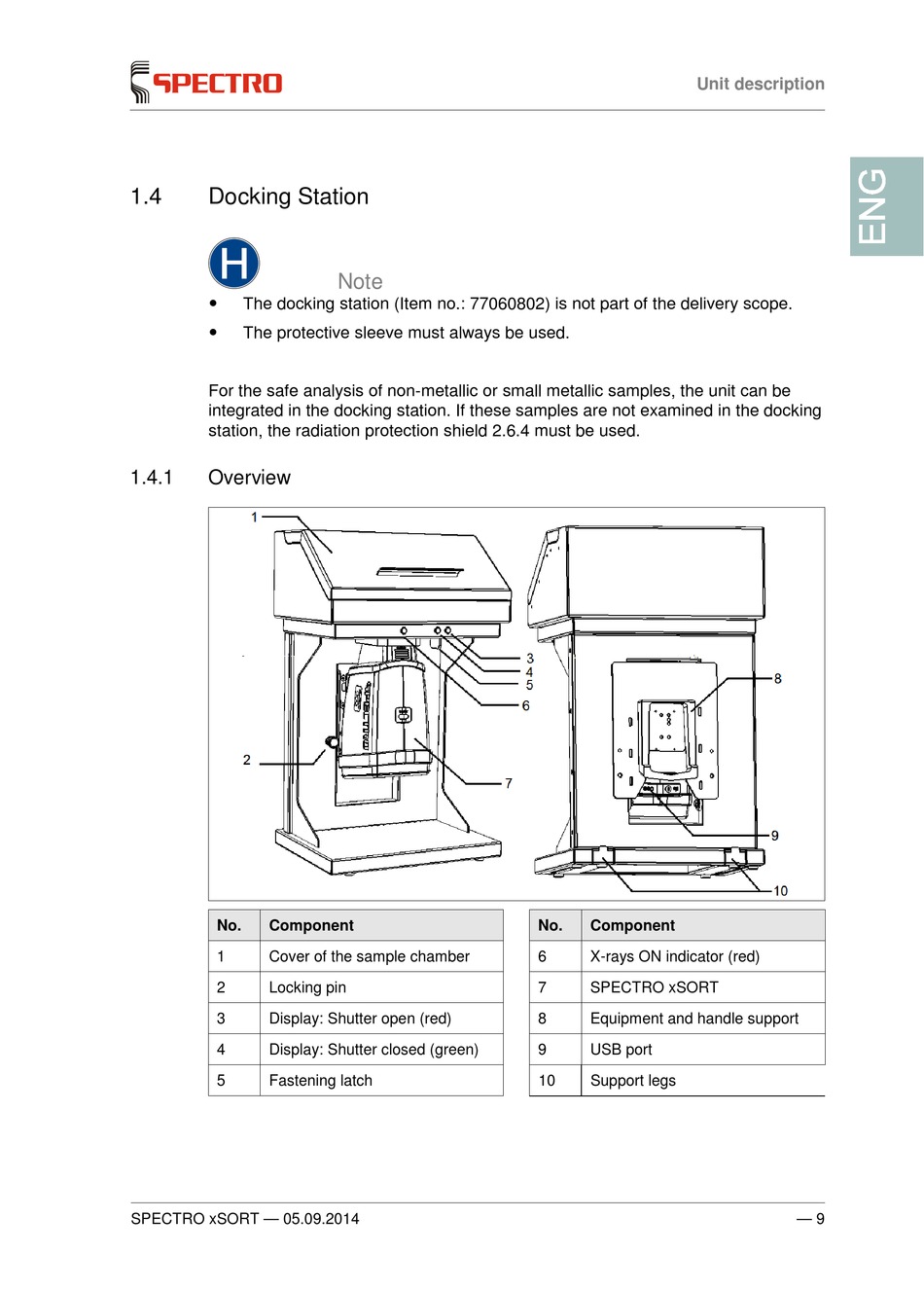

Docking Station


The docking station (Item no.: 77060802) is not part of the delivery scope.

The protective sleeve must always be used.
For the safe analysis of non-metallic or small metallic samples, the unit can be
integrated in the docking station. If these samples are not examined in the docking
station, the radiation protection shield 2.6.4 must be used.
1.4.1

Overview

No. Component
1 Cover of the sample chamber
2 Locking pin
3 Display: Shutter open (red)
4 Display: Shutter closed (green)
5 Fastening latch
SPECTRO xSORT — 05.09.2014
Note
Unit description
No. Component
6 X-rays ON indicator (red)
7 SPECTRO xSORT
8 Equipment and handle support
9 USB port
10 Support legs
