1

Unit description

1.1

Function

X-rays excite the atoms of the sample to emit radiation. This radiation is measured
by a semiconductor detector.
The unit is delivered including at least one installed analysis method. Based on the
method data that are stored in the unit, the measured data are used to determine
the composition of an unknown sample. The results are displayed on the screen.
1.2

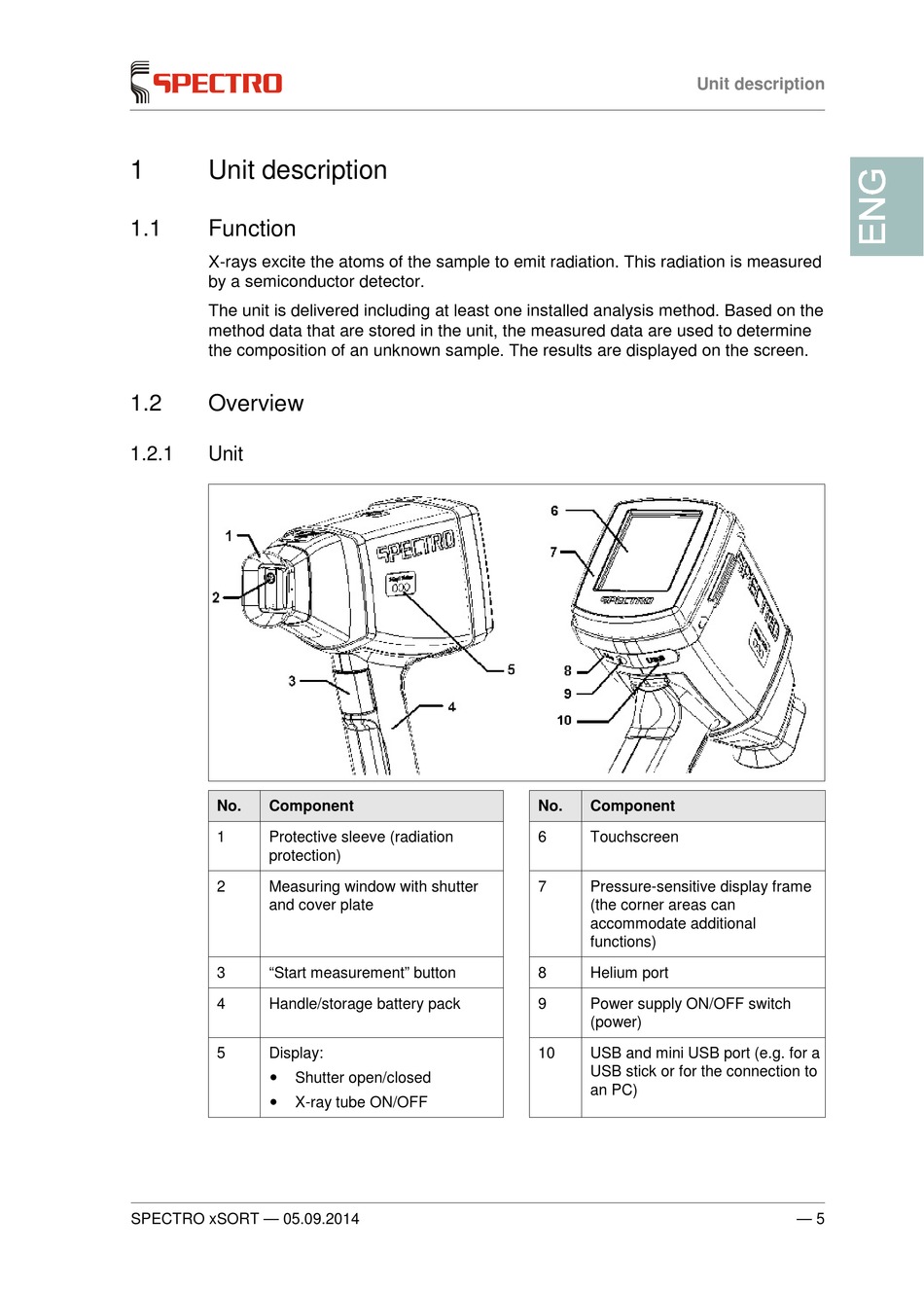

Overview

1.2.1

Unit

No. Component
1 Protective sleeve (radiation
protection)
2 Measuring window with shutter
and cover plate
3 "Start measurement" button
4 Handle/storage battery pack
5 Display:

Shutter open/closed

X-ray tube ON/OFF
SPECTRO xSORT — 05.09.2014
Unit description
No. Component
6 Touchscreen
7 Pressure-sensitive display frame
(the corner areas can
accommodate additional
functions)
8 Helium port
9 Power supply ON/OFF switch
(power)
10 USB and mini USB port (e.g. for a
USB stick or for the connection to
an PC)
— 5
