StarTech.com VS421HD4K Instruction Manual

Instruction Manual
2-Port HDMI® Automatic Switch – 4K / 4-Port HDMI® Automatic Switch – 4K
VS221HD4K / VS421HD4K
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Product Overview

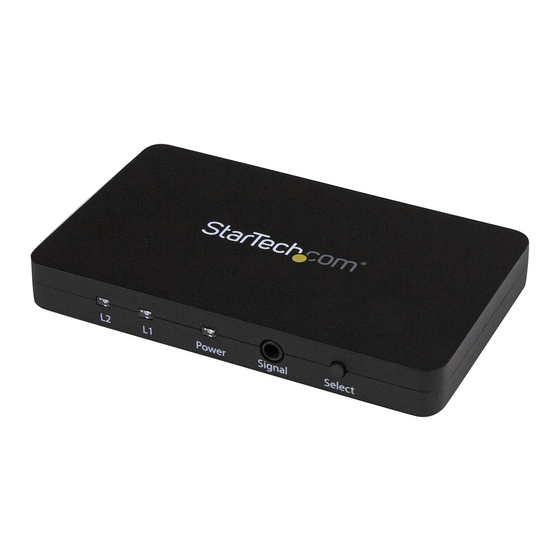

Front View - VS421HD4K
Power LED
Port
activity LEDs
Rear View - VS421HD4K
A/V Output
port
Power
adapter port
HDMI/MHL
input ports (1)
For the most up-to-date information, please visit: www.startech.com
Input selection
sutton
IR sensor
HDMI input
ports (2,3,4)
*actual product may vary from photos
Packaging Contents
• 1x HDMI Splitter (VS421HD4K / VS221HD4K)
• 1x IR remote control
• 1x Power Adapter (NA/EU/UK/AUS)
System Requirements
• 1x HDMI-enabled Video Source Device w/ HDMI cable (i.e. Blu-ray
player, computer, etc.)
• 4x HDMI-enabled Display Device w/ cable (i.e. Television, projector,
etc.) – VS421HD4K
• 2x HDMI-enabled Display Device w/ cable (i.e. Television, projector,
etc.) – VS221HD4K
Installation
Note: Ensure your HDMI-enabled video source devices, and the
HDMI-enabled Display are powered off before you begin installation.
1. Connect an HDMI cable (not included) from each of the HDMI
output ports on your HDMI source devices, to the HDMI input
Port on the HDMI Switch (up to 2 on VS221HD4K) (up to 4 on
VS421HD4K).
Notes:
• Each port is numbered, please take note of which number is
assigned to each HDMI source device.
• If one of your input device signals is MHL based, connect the
MHL source device to port 1.
2. Connect an HDMI cable (not included) from the output port on
the HDMI Switch to your HDMI display device.
3. Power on your HDMI display, followed by each of your HDMI
source devices.
4. Connect the included power adapter from an available power
source to the power adapter port on the HDMI switch.
5. Your HDMI switch is now ready for operation.
Manual Revision: 03/16/2015
