EDID Emulator and Copier for HDMI
Displays
VSEDIDHD
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/VSEDIDHD.
Manual Revision: 06/20/2019
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com VSEDIDHD
Summary of Contents for StarTech.com VSEDIDHD
- Page 1 EDID Emulator and Copier for HDMI Displays VSEDIDHD *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product diagram ..................1 Front view ..............................1 Rear view ..............................1 Side view ..............................1 Introduction ....................2 Package contents ............................2 Requirements ............................. 2 Mode switch ....................3 PC mode ............................... 3 AV mode ............................... 3 Memory mode............................3 Rotary switch ..................4 Dip switches ....................6 Operation ....................8... -
Page 4: Product Diagram

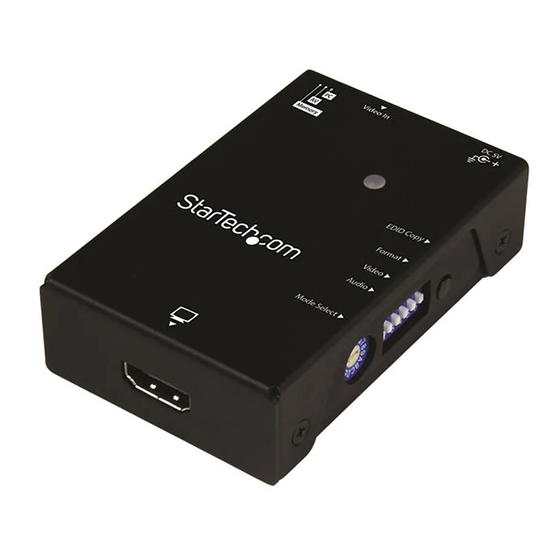

Product diagram Front view Status LED HDMI® output port Rear view HDMI input port Power adapter port Mode switch Side view Rotary switch EDID copy button Dip switches Instruction manual... -
Page 5: Introduction
Introduction When a video source is connected to a display, EDID information is shared between devices to ensure video and audio performance is aligned. However, if you are using a third party device, such as a video extender, between your source and display, the EDID information may not pass through correctly. -
Page 6: Mode Switch
Mode switch The Mode switch on this EDID Emulator and Copier lets you set the operation mode depending upon your application. Reference the glossaries below to determine the best mode for your application. PC mode PC mode lets you copy EDID settings from your display for use with a computer system and/or emulate EDID settings for use with your computer that are commonly supported by most computers and in the performance range of your display. -
Page 7: Rotary Switch
Rotary switch The Rotary switch on this EDID Emulator and Copier is used to define different settings depending upon the mode the EDID Emulator and Copier is set to. It may be necessary to review the tables below to determine what settings are ideal for your application. - Page 8 AV mode enables the EDID Emulator and Copier to work with consumer electronics equipment. Even if your equipment doesn’t support the exact resolution that’s specified by the rotary dial, each setting supports a range of resolutions and refresh rates. The table below lists resolutions and refresh rates that are still supported by each setting.
-
Page 9: Dip Switches
Dip switches The dip switches on this EDID Emulator and Copier enable you to define different settings. The mode your EDID Emulator and Copier is set to changes how the dip switches work as can the dip switches in relation to each other. It may be necessary to review the information below to determine what settings are ideal for your application. - Page 10 AV mode Refresh Rate Audio Color Scanning Scanning Audio Color Refresh rate Setting Setting Setting Setting Interlaced Use copied Use copied 50 Hz 7.1 CH Progressive 60 Hz 5.1 CH YCbCr 2 CH Deep color Memory mode Audio recall type Audio Not active Audio Audio recall type...
-
Page 11: Operation
Operation EDID copying Use PC mode to copy (clone) the EDID settings from your display for use with a computer. 1. Set the Mode switch on the EDID Copier to PC mode. 2. Use the included screw driver to set the Rotary dial on the EDID Copier to position 0 or 1. - Page 12 Use AV mode to copy (clone) the EDID settings from your display for use with a consumer electronics device. 1. Set the Mode switch on the EDID Copier to AV mode. 2. Use the included screw driver to set the Rotary dial on the EDID Copier to position 0 or 1, based on the requirements for your application (see the AV mode table in the Rotary dial section, page 5).
-
Page 13: Edid Emulating
6. Press and hold the EDID copy button on the EDID Copier until the Status LED starts to flash green. When you release the EDID copy button, the Status LED will then flash green and red alternately, indicating that the EDID Copier is actively copying the display’s EDID settings. - Page 14 5. If your video source is HDMI you can set the color EDID to your desired setting. If you’d like to emulate your EDID to support RGB color only, set Dip switch 3 to the ON position (up) and Dip switch 2 to the OFF position (down). If you’d like to emulate your EDID to support YCbCr, set Dip switch 3 to the OFF position (down) and Dip switch 4 to the ON position (up).
-
Page 15: About The Led Indicators
If you’d like to emulate your EDID to support Deep Color, set Dip switches 3 and 4 to the OFF position (down). 5. Connect an HDMI cable (not included) to your video source and to the HDMI input port on the EDID emulator. 6. -
Page 16: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 17 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
