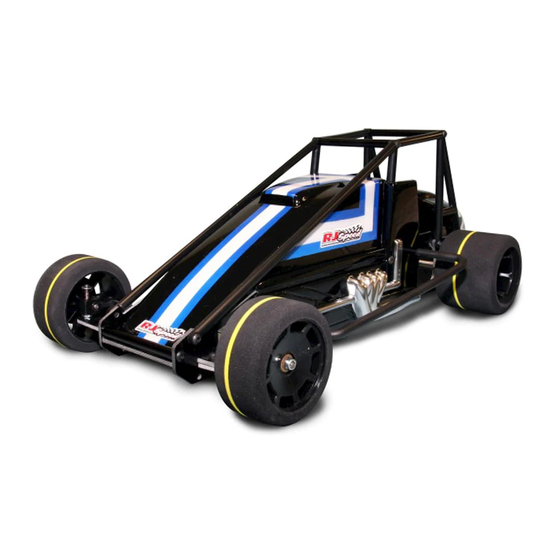

RJ Speed Speedway Sprinter Quick Start Manual

THANKS FOR BUYING THE RJ SPEED SPEEDWAY SPRINTER KIT. IT IS COMPLETE LESS ELECTRICS, AND
MADE FOR CARPET OR PAVEMENT RACING. IT REQUIRES A 540 OR 550 SIZE MOTOR, 4 OR 6 CELL BATTERY
PACK, TWO CHANNEL RADIO WITH ESC, AND A SERVO SAVER TO FIT THE BRAND OF RADIO YOU HAVE CHO-
SEN. THE TOOLS YOU WILL NEED ARE A SMALL PAIR OF PLIERS, A 1/4 " SOCKET OR WRENCH, AND A 7/16 "
SOCKET WRENCH FOR THE DIFFERENTIAL. HEX WRENCHES TO FIT THE SOCKET HEAD SCREWS ARE IN-
CLUDED IN THE KIT. YOU WILL ALSO NEED PAINT MADE FOR LEXAN FOR THE BODY PARTS. REFER TO THE
TEXT AND PICTURES FOR EACH STEP , AND ALSO THE EXPLODED VIEW DRAWING FOR THE CHASSIS AS-
SEMBLY AND PARTS REFERENCE .
IT IS BEST TO READ EACH STEP THROUGH, LOOK AT THE PICTURES,
DRAWINGS,AND PARTS , THEN DO THE ASSEMBLY STEP.
YOUR KIT CONTAINS THE FOLLOWING:
BAG G1 CHASSIS KIT
BAG G2 REAR AXLE PARTS
BAG L4 FRONT TIRES

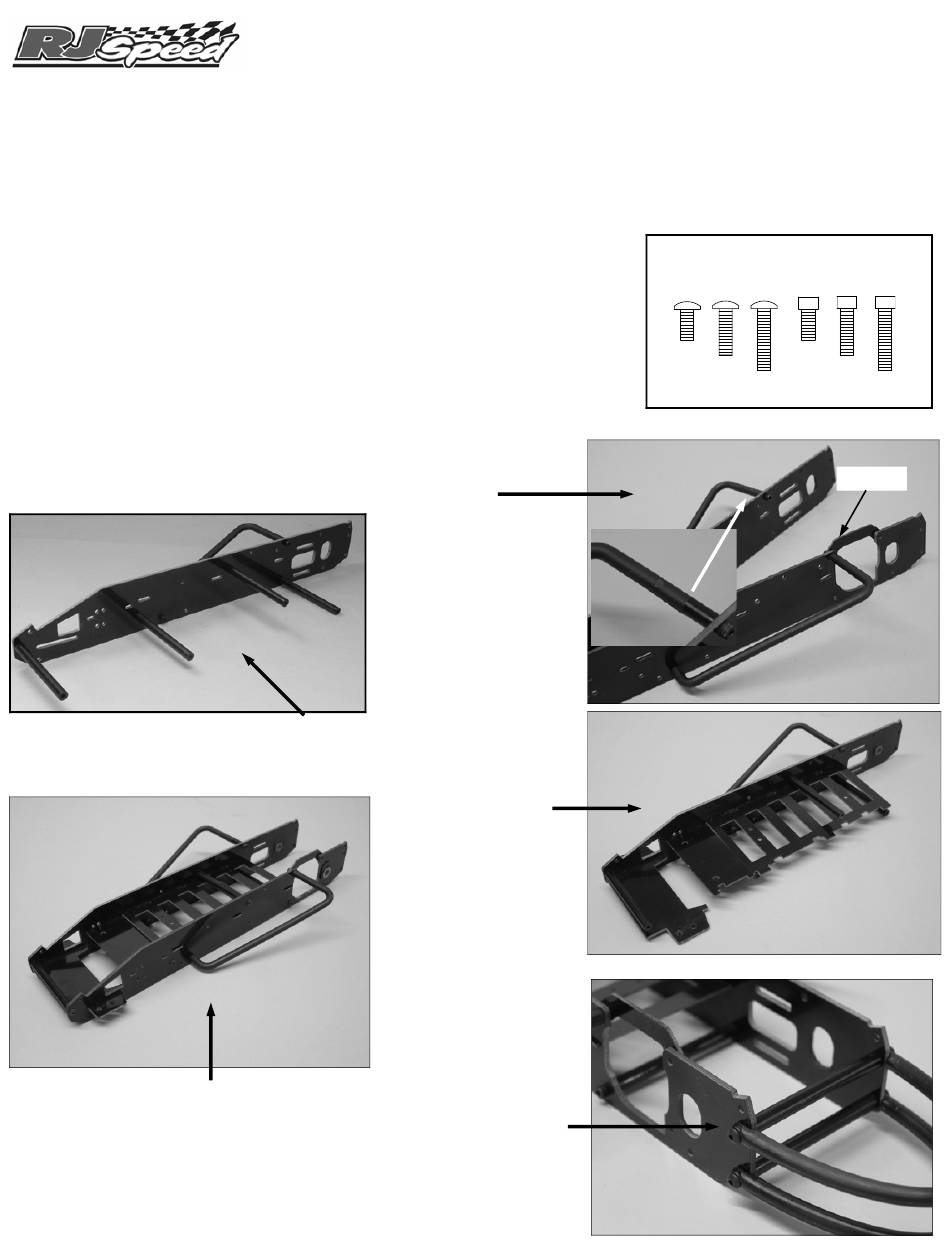

STEP 1 OPEN BAG G1 AND G1E. ATTACH A 5065 NERF BAR
TO THE LEFT CHASSIS WITH 3/8 CAP SCREWS. REFER TO
THE HARDWARE ID FOR SCREW SIZES. INSERT THE SCREW
FOR THE REAR OF THE LEFT NERF BAR THRU THE TIE BAR ,
THEN THE CHASSIS AND INTO THE NERF BAR.
STEP 2 ATTACH FOUR 5245 CHASSIS SPACERS FROM BAG H1A
TO THE RIGHT CHASSIS SIDE WITH 3/8 CAP SCREWS. USE A 3/8
BUTTON HEAD ON THE FRONT ONE.
STEP 4 SLIDE THE LEFT CHASSIS OVER
THE PARTS AND ATTACH WITH 3/8 CAP
SCREWS (BUTTON HD. ON FT.).SET THE
CHASSIS ON YOUR TABLE TO MAKE
SURE IT SITS FLAT.IF NOT, HOLD BOTH
ENDS AND TWIST TO CORRECT. CHECK
IT AGAIN AFTER INSTALLING THE REAR
BARS AND CAGE.
2031 SPEEDWAY SPRINTER
BAG L5 REAR TIRES
1043 BODY PARTS
INSTRUCTION PKG.
THREAD THE LONG
SCREWS THRU THE
CHASSIS AND 1/2"
SPACER TO ATTACH
THE RIGHT SIDE NERF
BAR.
STEP 3 SLIDE THE
FRONT AXLE PLATE,
SERVO TRAY AND RA-
DIO TRAY INTO THE
SLOTS IN THE CHAS-
SIS SIDE. FILE OR
SAND THE TABS
SLIGHTLY IF NEEDED
FOR A GOOD FIT.
STEP 5 ATTACH
THE REAR BARS AND
CHASSIS SPACERS
TO THE REAR OF THE
CHASSIS WITH FOUR
1/2" BUTTON HEAD
SCREWS.
1
HARDWARE I.D.
BUTTON HD. CAP SCREW
1/4 3/8 1/2 1/4 3/8 1/2
TIE BAR
