THANKS FOR BUYING THIS RJ SPEED DRAGSTER KIT . IT IS MADE FOR STRAIGHT LINE DRAG RACING AND

MAY BE BROKEN IF RUN INTO SOLID OBJECTS REPEATEDLY AT HIGH SPEED. IT REQUIRES A MOTOR, BAT-

TERY PACK, AND A TWO CHANNEL RADIO CONTROL UNIT WITH ONE SERVO AND AN ESC. A STANDARD

SIZE OR MINI SERVO IS GOOD FOR THE STEERING AND MOST ESC'S WILL WORK. YOU NEED TO BUY AN

ESC TO MATCH UP WITH THE MOTOR YOU ARE GOING TO USE.

YOU WILL NEED A SMALL PAIR OF PLIERS, AND A 1/4" WRENCH OR NUT DRIVER. HEX WRENCHES TO FIT

THE SOCKET HEAD SCREWS IN THE KIT ARE INCLUDED. YOU WILL ALSO NEED PAINT FOR THE BODY AND

WING THAT IS MADE FOR LEXAN PLASTIC.

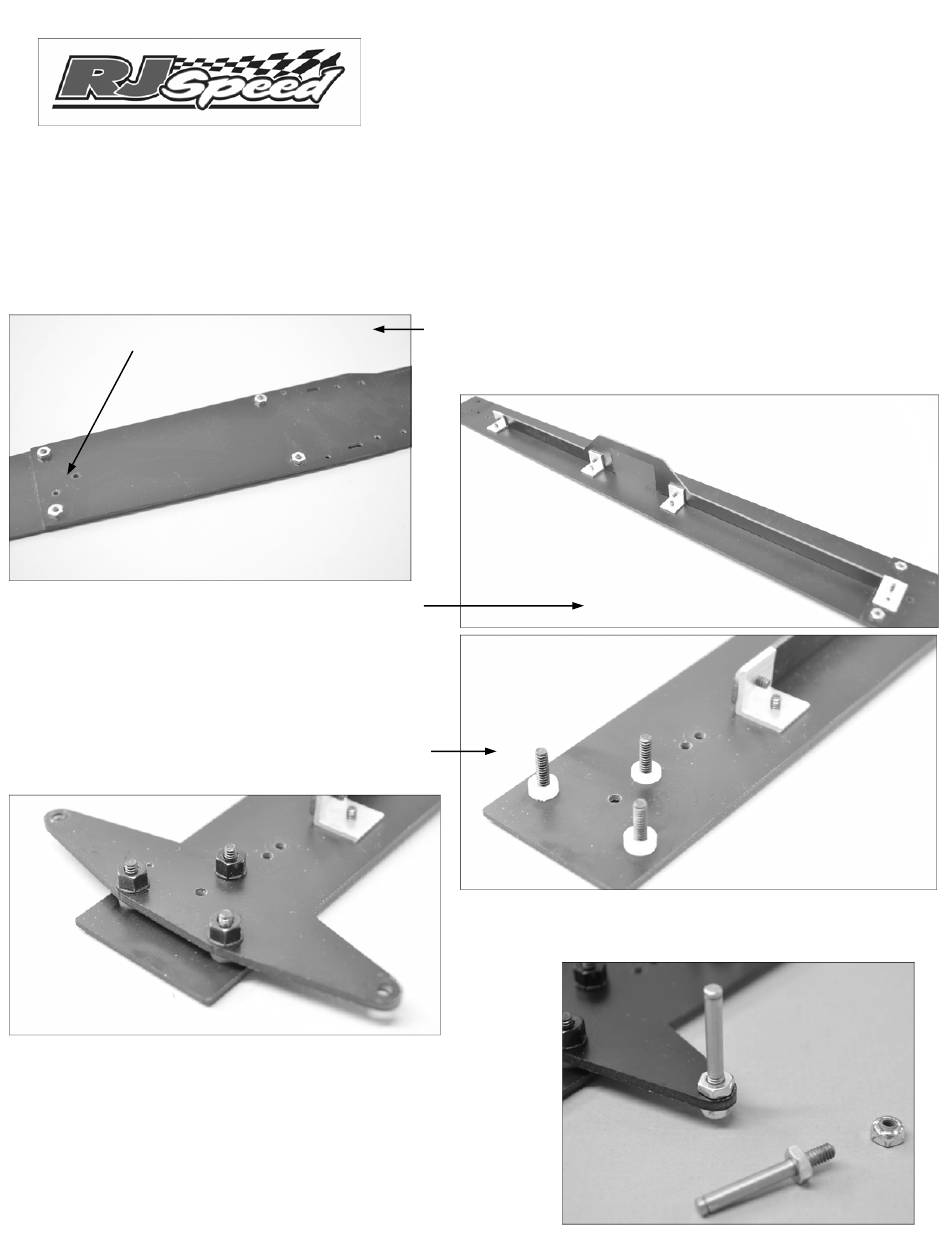

MAKE SURE THESE HOLES LINE UP

STEP 2 ATTACH THE BRACE WITH FOUR ANGLE

BRACKETS AND EIGHT 1/4" SCREWS. INSTALL ALL

THE SCREWS LOOSLY , THEN TIGHTEN THEM.

STEP 3 OPEN BAG D2 INSERT 3 - 1/2" LONG

SCREWS THRU THE FRONT OF THE CHASSIS AND

INSTALL 1/8 SPACERS(LONGER ONES) ON THE TWO

FRONT SCREWS AND A 3/32 SPACER (SHORTER)

ON THE REAR SCREW.

STEP 5 OPEN BAG D2A THREAD A THIN NUT ON EACH

KINGPIN. INSTALL THE KINGPINS ON EACH END OF THE

FRONT AXLE AND RETAIN EACH ONE WITH A LOCKNUT.

RJS2003

DRAGSTER KIT LESS ELECTRICS

STEP 1 OPEN BAG DI AND THE HDWE BAG INSIDE IT.

ASSEMBLE THE 5231 SUB FRAME TO THE 5031 CHASSIS (SUB

FRAME ON TOP) WITH 4 1/4" SCREWS AND NUTS.

STEP 4 INSTALL THE 5238 FRONT AXLE PLATE AND RE-

TAIN WITH THREE BLACK NYLON NUTS.

Table of Contents

Need help?

Do you have a question about the RJS2003 and is the answer not in the manual?

Page 1 RJS2003 DRAGSTER KIT LESS ELECTRICS THANKS FOR BUYING THIS RJ SPEED DRAGSTER KIT . IT IS MADE FOR STRAIGHT LINE DRAG RACING AND MAY BE BROKEN IF RUN INTO SOLID OBJECTS REPEATEDLY AT HIGH SPEED. IT REQUIRES A MOTOR, BAT- TERY PACK, AND A TWO CHANNEL RADIO CONTROL UNIT WITH ONE SERVO AND AN ESC.
Page 2 STEP 6 RUN A 1/8 DRILL THROUGH EACH 5351 STEER- ING BLOCK AND MAKE SURE IT SLIDES SMOOTHLY ON THE KINGPIN. LUBE THE KINGPINS WITH LIGHT OIL OR SILICONE LUBE AND SLIDE THEM ON FOLLOWED BY A 5228 SPRING , WASHER AND 5221 E-CLIP. INSTALL AN E-CLIP ON EACH AXLE AND SLIDE THEM THROUGH THE STEERING BLOCKS.
Page 3 STEP 13 OPEN BAG D3 INSTALL TWO 5282 ANGLE BRACKETS TO THE MOTOR MOUNT. NOTE THAT THE FRONT ONE MOUNTS ON THE OUTSIDE WITH A FLAT HEAD SCREW FROM THE INSIDE. ATTACH IT TO THE CHASSIS REAR WITH TWO MORE 1/4” SCREWS AND TIGHTEN THEM.
Page 4 STEP 19 INSTALL THE POST FROM BAG 6 IN THE HOLE JUST BEHIND THE CHASSIS BRACE WITH THE 3/8 SCREW. ALIGN IT SO THE HOLE AT THE TOP POINTS TOWARD THE BALL STUD ON THE TOP PLATE.THREAD THE WHITE BALL CUP ONTO THE ROD WITH THE THREADED END.
Page 6 SOME CURRENTLY AVAILABLE ACCESSORIES ARE SHOWN BELOW: 5037-7” WE HAVE TWO WHEELIE BARS THAT BOLT OUR 5732 DIFF KIT WILL HELP YOU GET OFF THE LINE DIRECTLY UNDER THE REAR END OF OUR ON UNPREPARED SURFACES BY ALLOWING YOU TO DRAG KITS.
