RJ Speed Digger 2015 Manual

THANKS FOR BUYING OUR DIGGER KIT . IT IS DESIGNED FOR LOTS OF PARKING LOT FUN. IT IS VERY SIM-
PLE TO BUILD AND IF YOU TAKE CARE IN THE ASSEMBLY, IT WILL PROVIDE YOU WITH HOURS AND HOURS
OF FUN. THE KIT INCLUDES A COMPLETE CHASSIS KIT WITH PRE MOUNTED TIRES, GEARS, LINKAGE, AND A
CLEAR LEXAN BODY .
THE DIGGER REQUIRES A 540 OR 500 SIZE MOTOR, 6 CELL STICK PACK, 2 CHANNEL RADIO CONTROL
SYSTEM WITH ONE SERVO, AN ESC WITH REVERSE AND PAINT FOR THE LEXAN BODY. YOU WILL NEED A
SMALL PAIR OF PLIERS, AND A 1/4" WRENCH OR NUTDRIVER. HEX WRENCHES TO FIT THE SOCKET SCREWS
ARE INCLUDED. TAKE YOUR TIME, AND LOOK AT THE PICTURES AND DRAWINGS. PARTS AND ACCESSORIES
ARE AVAILABLE THRU YOUR LOCAL HOBBY SHOP.

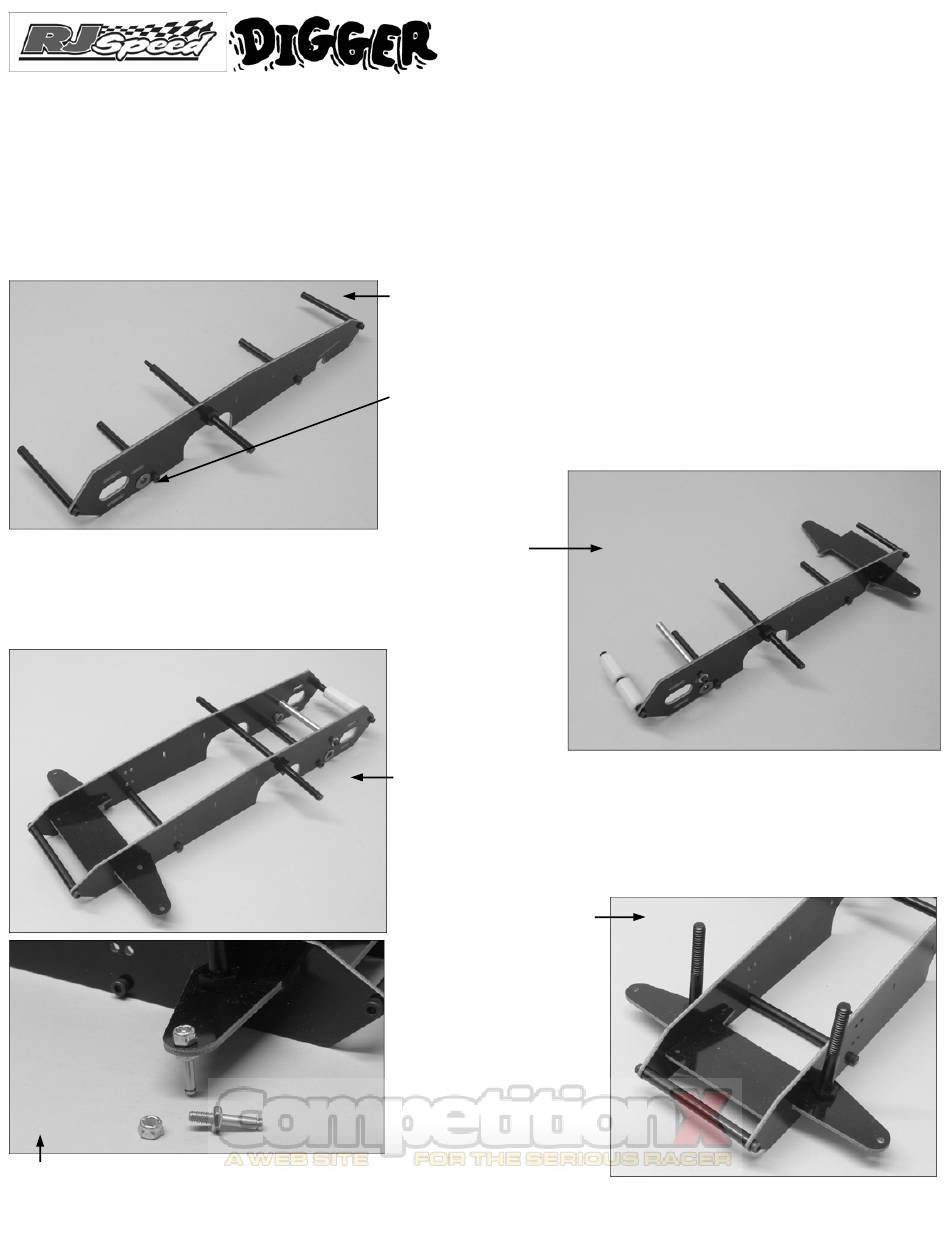

STEP 2 ADD THE ALUMINUM CHASSIS SPACER WITH A 3/8
SCREW AND WASHER TOWARDS THE FRONT OF THE SLOT
ABOVE THE AXLE BUSHING.YOU WILL TIGHTEN IT LATER. SLIDE
THE TWO 1" LONG ROLLERS ON THE REAR SPACER, AND SLIDE
THE FRONT AXLE PLATE IN AS SHOWN.
STEP 5 OPEN BAG C .
SHORT KINGPIN THEN INSERT THE KINGPIN THRU THE FRONT AXLE
PLATE FROM THE BOTTOM AND INSTALL A LOCK NUT AND TIGHTEN.
REPEAT FOR THE OTHER SIDE
STEP 1 OPEN BAG B1 CHASSIS KIT GET THE CHASSIS SPAC-
ERS FROM BAG A AND THE SCREWS FROM BAG B. INSTALL
THE ONE THAT HAS THREADED STUD IN THE ENDS IN THE
HOLE ABOVE THE LARGE CUTOUT IN THE RIGHT CHASSIS SIDE
(NOTE THAT THE LARGE SIDE IF THE REAR BUSHING IS TO THE
OUTSIDE) AND THREAD ONE OF THE SHORTER BODY POSTS
ONTO IT AND TIGHTEN. ATTACH THE OTHER FOUR SPACERS
WITH 3/8 SCREWS, HOLD THE WITH PLIERS AND TIGHTEN.
STEP 3 SLIDE THE OTHER CHASSIS SIDE OVER THE FRONT
AXLE PLATE, INSTALLTHE OTHER SHORT BODY POST ON THE
STUD, AND ADD 3/8 SCREWS IN THE OTHER FOUR CHASSIS
SPACERS AND TIGHTEN. SET THE CHASSIS DOWN ON YOUR
TABLE TO SEE IF IT SITS FLAT. IF NOT HOLD IT BY BOTH ENDS
AND TWIST IT , THEN RECHECK.
STEP 4 INSTALL THE
LONGER BODY POSTS
WITH 3/8 SCREWS ON
EACH SIDE OF THE
FRONT AXLE PLATE.
YOU CAN ADD THE
BODY POST NUTS
LATER TO SET THE
BODY HEIGHT.
INSTALL A PLAIN NUT (THIN ONE) ON EACH
2015 DIGGER CAR KIT LESS ELECTRICS
2016 DIGGER TRUCK KIT LESS ELECTRICS
