RJ Speed SPEC 10 ROAD/OVAL KIT Manual

THANKS FOR BUYING THE RJ SPEED SPEC 10 ROAD/OVAL KIT. IT IS COMPLETE LESS ELECTRICS, AND
MADE FOR CARPET OR PAVEMENT RACING. IT REQUIRES A 540 OR 550 SIZE MOTOR, 4 OR 6 CELL BATTERY
PACK, TWO CHANNEL RADIO WITH ESC, AND A SERVO SAVER TO FIT THE BRAND OF RADIO YOU HAVE CHO-
SEN. THE TOOLS YOU WILL NEED ARE A SMALL PAIR OF PLIERS, A 1/4 " SOCKET OR WRENCH, AND A 7/16 "
SOCKET WRENCH FOR THE DIFFERENTIAL. HEX WRENCHES TO FIT THE SOCKET HEAD SCREWS ARE IN-
CLUDED IN THE KIT. YOU WILL ALSO NEED PAINT MADE FOR LEXAN FOR THE BODY. REFER TO THE TEXT
AND PICTURES FOR EACH STEP, AND ALSO THE EXPLODED VIEW DRAWING FOR THE CHASSIS ASSEMBLY ,
AND PARTS REFERENCE
IT IS BEST TO READ EACH STEP THROUGH, LOOK AT THE PICTURES, DRAWINGS, AND PARTS, THEN DO
THE ASSEMBLY STEP.
MAKE SURE TO LOOK AT THE ASSEMBLY HINTS PAGE!
BAG N1 CHASSIS KIT
BAG L2 REAR AXLE PARTS
BAG L4 FRONT SPEC RACING TIRES

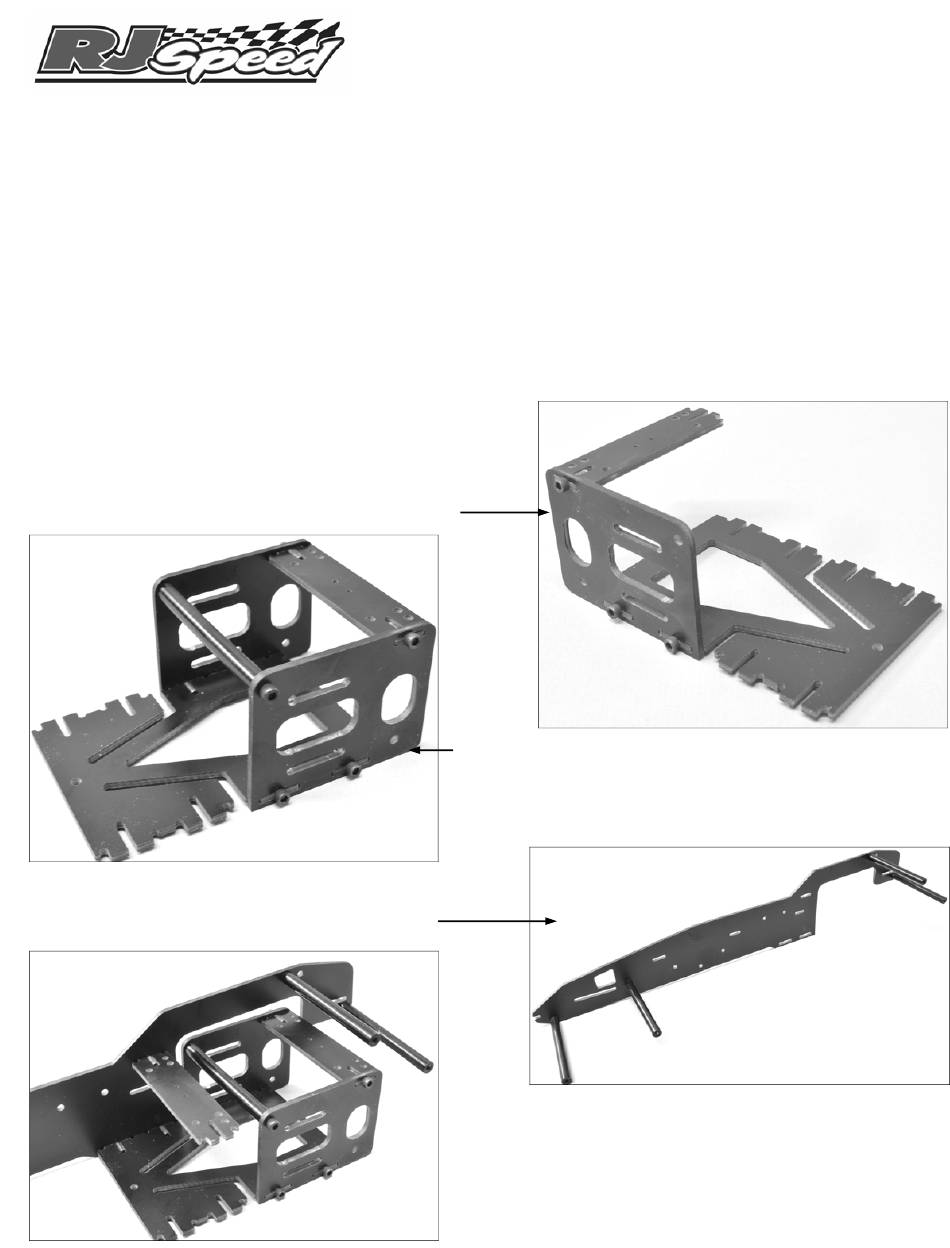

STEP 1 OPEN BAG N1 AND NIB ASSEMBLE A 5069 MOTOR
PLATE TO THE 5076 FLEX PLATE WITH TWO 3/8 SCREWS IN-
CLUDED IN BAG N1B. MAKE SURE THE TABS ARE IN ALL THE
WAY BEFORE INSTALLING THE SCREWS AND DO NOT
OVERTIGHTEN THEM. ATTACH ONE 5057 TO THE MOTOR
MOUNT IN THE SAME MANNER.
STEP 3 ATTACH THE REMAINING FOUR 5245 CHAS-
SIS SPACERS TO ONE OF THE 5068 CHASSIS SIDES
WITH 3/8 SCREWS FROM BAG N1A.
2035 SPEC 10 ROAD/OVAL KIT
BAG L5 REAR SPEC RACING TIRES
1064 LATE MODEL STOCK CAR BODY
2035 INSTRUCTION PKG.
STEP 2 ATTACH THE OTHER MOTOR MOUNT TO THE FLEX
PLATE AND CHASSIS BRACE AS BEFORE. SET THE REST OF
BAG N1B ASIDE AND OPEN BAG N1A. ATTACH ONE 5245
CHASSIS SPACER TO THE FRONT OF THE MOTOR PLATES
WITH TWO LARGER 3/8 SCREWS FROM BAG N1A.
STEP 4 ATTACH THE MOTOR MOUNT/FLEX PLATE ASSEM-
BLY TO THE CHASSIS SIDE WITH SCREWS FROM BAG N1B.
ALSO ATTACH THE SECOND 5057 CHASSIS BRACE TO THE
CHASSIS SIDE JUST IN FRONT OF THE MOTOR PLATE WITH
THE SAME SCREW SIZE FROM N1B. DON'T OVERTIGHTEN.
1
YOUR KIT CONTAINS THE FOLLOWING:
