THANKS FOR BUYING THE RJ SPEED SPEC SPRINTER KIT. IT IS COMPLETE LESS ELECTRICS, AND MADE
FOR CARPET OR PAVEMENT RACING. IT REQUIRES A 540 OR 550 SIZE MOTOR, 4 OR 6 CELL BATTERY PACK,
TWO CHANNEL RADIO WITH ESC, AND A SERVO SAVER TO FIT THE BRAND OF RADIO YOU HAVE CHOSEN.
THE TOOLS YOU WILL NEED ARE A SMALL PAIR OF PLIERS, A 1/4 " SOCKET OR WRENCH, AND A 7/16 "
SOCKET WRENCH FOR THE DIFFERENTIAL. HEX WRENCHES TO FIT THE SOCKET HEAD SCREWS ARE IN-
CLUDED IN THE KIT. YOU WILL ALSO NEED PAINT MADE FOR LEXAN FOR THE BODY PARTS AND WINGS. RE-
FER TO THE TEXT AND PICTURES FOR EACH STEP , AND ALSO THE EXPLODED VIEW DRAWING FOR THE
CHASSIS ASSEMBLY , PARTS REFERENCE AND THE WING TRIM AND ASSEMBLY DRAWINGS
IT IS BEST TO READ EACH STEP THROUGH, LOOK AT THE PICTURES,
DRAWINGS,AND PARTS , THEN DO THE ASSEMBLY STEP.
MAKE SURE TO LOOK AT THE ASSEMBLY HINTS PAGE
YOUR KIT CONTAINS THE FOLLOWING:
BAG K1 CHASSIS KIT
BAG L2 REAR AXLE PARTS
BAG L4 FRONT TIRES
BAG L5 REAR TIRES

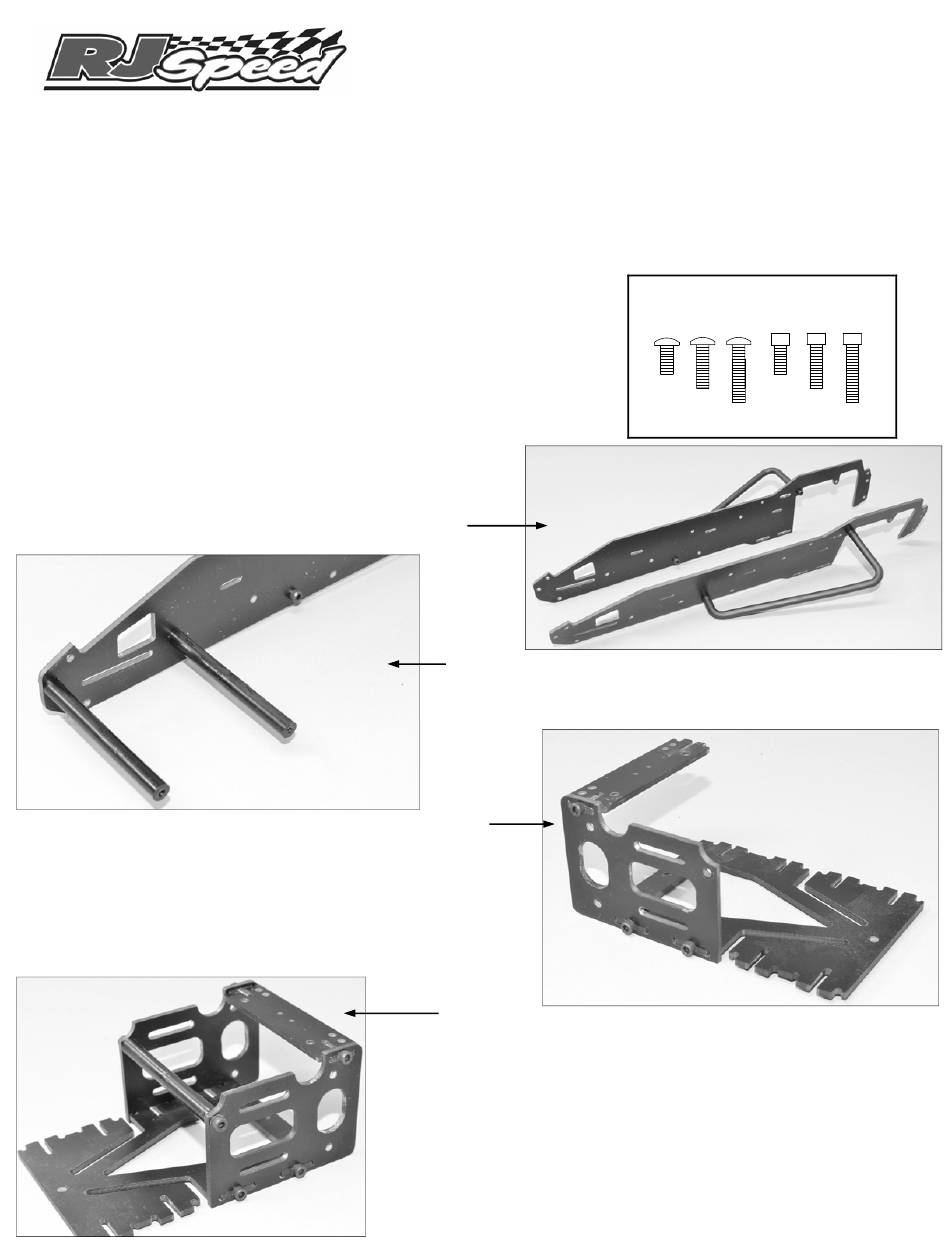

STEP 1 OPEN BAG K1 AND K1A. INSTALL A 5065 NERF BAR
ON EACH CHASSIS SIDE AS SHOWN WITH 3/8 LONG CAP
SCREWS (7030). SAVE THE TWO LONGER ONES (1/2) FOR
THE REAR BARS TO BE ASSEMBLED LATER.
STEP 3 OPEN BAG K1B. KEEP THE SCREWS IN THIS BAG
AWAY FROM THE ONES IN KIA. THEY ARE SLIGHTLY SMALLER
DIAMETER. ATTACH A 5059 MOTOR PLATE TO THE 5076 FLEX
PLATE WITH TWO SCREWS FROM THIS BAG. MAKE SURE THAT
THE TABS ARE ALL THE WAY IN BEFORE INSTALLING THE
SCREWS. DO NOT OVERTIGHTEN THESE SCREWS. ATTACH
ONE 5057 BRACE TO THE MOTOR PLATE IN THE SAME MANNER.
2033 SPEC SPRINTER
1043 BODY PARTS
1525 WING PARTS
2033 INSTRUCTION PKG.
STEP 2 INSTALL TWO 5245 CHASSIS BRACES ON THE RIGHT
CHASSIS SIDE WITH 3/8 CAP SCREWS
STEP 4 ATTACH THE OTHER MOTOR PLATE TO THE FLEX PLATE
AND THE BRACE IN THE SAME MANNER. ATTACH A 5245 CHASSIS
BRACE TO THE FRONT OF THE MOTOR PLATE WITH TWO 3/8
SCREWS FROM BAG K1A. IF YOU SHOULD HAPPEN TO OVERTIGHTEN
ANY OF THE SCREWS GOING INTO THE FLEX PLATE OR BRACE, YOU
CAN SWAP ONE OF THE 3/8 SCREWS FROM A CHASSIS BRACE.
1
HARDWARE I.D.
BUTTON HD.
CAP SCREW
1/4
3/8 1/2 1/4 3/8 1/2
Advertisement
Related Manuals for RJ Speed 2033 SPEC SPRINTER
Summary of Contents for RJ Speed 2033 SPEC SPRINTER
- Page 1 2033 SPEC SPRINTER THANKS FOR BUYING THE RJ SPEED SPEC SPRINTER KIT. IT IS COMPLETE LESS ELECTRICS, AND MADE FOR CARPET OR PAVEMENT RACING. IT REQUIRES A 540 OR 550 SIZE MOTOR, 4 OR 6 CELL BATTERY PACK, TWO CHANNEL RADIO WITH ESC, AND A SERVO SAVER TO FIT THE BRAND OF RADIO YOU HAVE CHOSEN.
- Page 2 STEP 5 INSTALL THE FLEX PLATE TO THE RIGHT CHAS- SIS SIDE WITH TWO 3/8 SCREWS FROM KIB. STEP 6 INSTALL THE 5244 FRONT AXLE PLATE AND THE 5242 BATTERY TRAY INTO THE RIGHT CHASSIS SIDE. MAKE SURE THE TABS GO ALL THE WAY IN. STEP 7 SLIDE THE LEFT CHASSIS SIDE OVER THE FRONT AXLE PLATE, BATTERY TRAY, FLEX PLATE , AND BRACE, THEN ATTACH THE TWO CHASSIS BRACES...
- Page 3 STEP 11 YOU CAN INSTALL YOUR MOTOR FIRST IF YOU WISH, BUT MAKE SURE YOU ALIGN IT SO THAT YOU CAN SOLDER THE WIRES WHEN NEEDED. SCREW THE NYLON BALL CUPS ONTO THE THREADED ENDS OF THE DAMPER RODS. SLIDE A SMALL COL- LAR, SPRING, AND SILICONE TUBE ONTO EACH ONE, THEN INSERT THE END THROUGH A LARGE COLLAR AND SNAP IT ONTO THE BALL STUD ON THAT SIDE.
- Page 4 STEP 17 MAKE SURE THERE’S ROOM UNDER THE TRAY FOR MOUNTING YOUR BATTERY PACK. VELCRO STRAPS WORK WELL AND WE RECOMMEND YOU GET SOME STICKY BACK VELCRO TO MAKE SURE THE BATTERY CAN NOT SLIDE FORWARD IF THE STRAP IS NOT TIGHT ENOUGH.
- Page 5 STEP 23 PAINT THE HOOD AND TAIL TANK PARTS AND THE SIDE PANELS AND TRIM THEM OUT AS SHOWN. DRILL THE HOLES MARKED WITH A 1/8 “ DRILL TO MOUNT THEM TO THE CHASSIS. THE TWO HOLES IN THE SIDES OF THE TAIL TANK SNAP OVER THE TWO SCREWS THAT HOLD THE REAR OF THE ROLL CAGE TO THE CHASSIS AND YOU WILL NEED TO REMOVE THE BOTTOM SCREW...
- Page 6 STEP 27 WITH THE FRONT WING MOUNTED ON THE HOOD , YOU CAN BEND THE FRONT PORTION OF THE MOUNT TO CHANGE THE WING ANGLE FOR MORE OR LESS STEERING. STEP 28 INSTALL THE REAR WING TO THE ROLL CAGE WITH THE SCREWS THAT ATTACH THE CHASSIS BRACES .
- Page 8 2033 SPEC SPRINTER 7045 5079 7031 5245 7045 5064 5064 5221 5228 5364 5351 5377 5188 5452 7206 7044 7030 5242 7207 7026 5058 5244 5245 5065 7043 HARDWARE REPLACEMENT PARTS 7044 7026 #4 X 3/8 CAP SCREW 1043 BODY PARTS SET...
- Page 9 ASSEMBLY HINTS AND SUGGESTIONS HINT –THREAD THE HOLES IN ALL OF THE 5245 CHASSIS SPACERS WITH A 4-40 TAP IF YOU HAVE ONE AVAILABLE TO MAKE THE SCREWS HOLD BETTER. FRONT END HINT: BEFORE INSTALLING, HOLD THE 5377 KINGPIN BY THE THREADED END IN A HAND DRILL AND USE VERY FINE SANDPAPER, THEN METAL POLISH TO MAKE THE SURFACE OF THE KINGPIN SMOOTHER FOR A MORE CONSISTENT SUSPENSION.
-
Page 10: Available Accessories
THEM FARTHER ON OR OFF THE WATCH FOR MORE ACCESSO- THREADED ROD. THE WIRE LINK OUR 5248 HEAT SINK CAN BE RIES FROM RJ SPEED at YOUR CAN BE RE-BENT TO SUIT MOST ADDED BETWEEN YOUR MOTOR LOCAL HOBBY STORE.
