RJ Speed LTO SPORT OVAL RACER Quick Start Manual

THANKS FOR BUYING THE RJ SPEED 1/10 LTO SPORT KIT FOR OVAL RACING. THE ASSEMBLY WILL NOT
BE DIFFICULT IF YOU READ THE TEXT, LOOK AT THE PICTURES , AND THE EXPLODED VIEW DRAWING. YOU
WILL NEED A SMALL PAIR OF PLIERS, A 1/4" SOCKET OR WRENCH, AND A 7/16 SOCKET FOR THE BODY
POSTS AND DIFF NUT. HEX WRENCHES TO FIT THE SOCKET HEAD SCREWS ARE PROVIDED. (BAG 11)
THIS KIT REQUIRES A 540 OR 550 SIZE MOTOR, 4 OR 6 CELL BATTERY PACK, 2 CHANNEL RADIO SYSTEM
WITH 1 SERVO AND ESC (MAKE SURE THE ESC WILL WORK WITH THE MOTOR YOU CHOOSE) AND A SERVO
SAVER TO FIT THE SERVO YOU HAVE CHOSEN. YOU WILL ALSO NEED PAINT FOR THE LEXAN BODY.
STEP 6 OPEN BAG R3. ATTACH ONE TALL ALUMINUM
BRACKET TO THE OUTSIDE FRONT OF THE MOTOR
MOUNT THAT HAS SCREW COUNTERSINKS ON OPPO-
SITE SIDES AND A SHORT ONE TO THE REAR AS
SHOWN WITH 1/4" FLAT HEAD SCREWS. THIS IS THE
RIGHT MOUNT.
ASSEMBLE THE OTHER WITH BOTH BRACKETS ON
THE INSIDE WITH 1/4' FLATHEAD SCREWS. DO NOT
TIGHTEN THE SCREWS UNTIL YOU ATTACH THEM
TO THE BOTTOM PLATE.
RJS2021 LTO SPORT OVAL RACER
LESS ELECTRICS

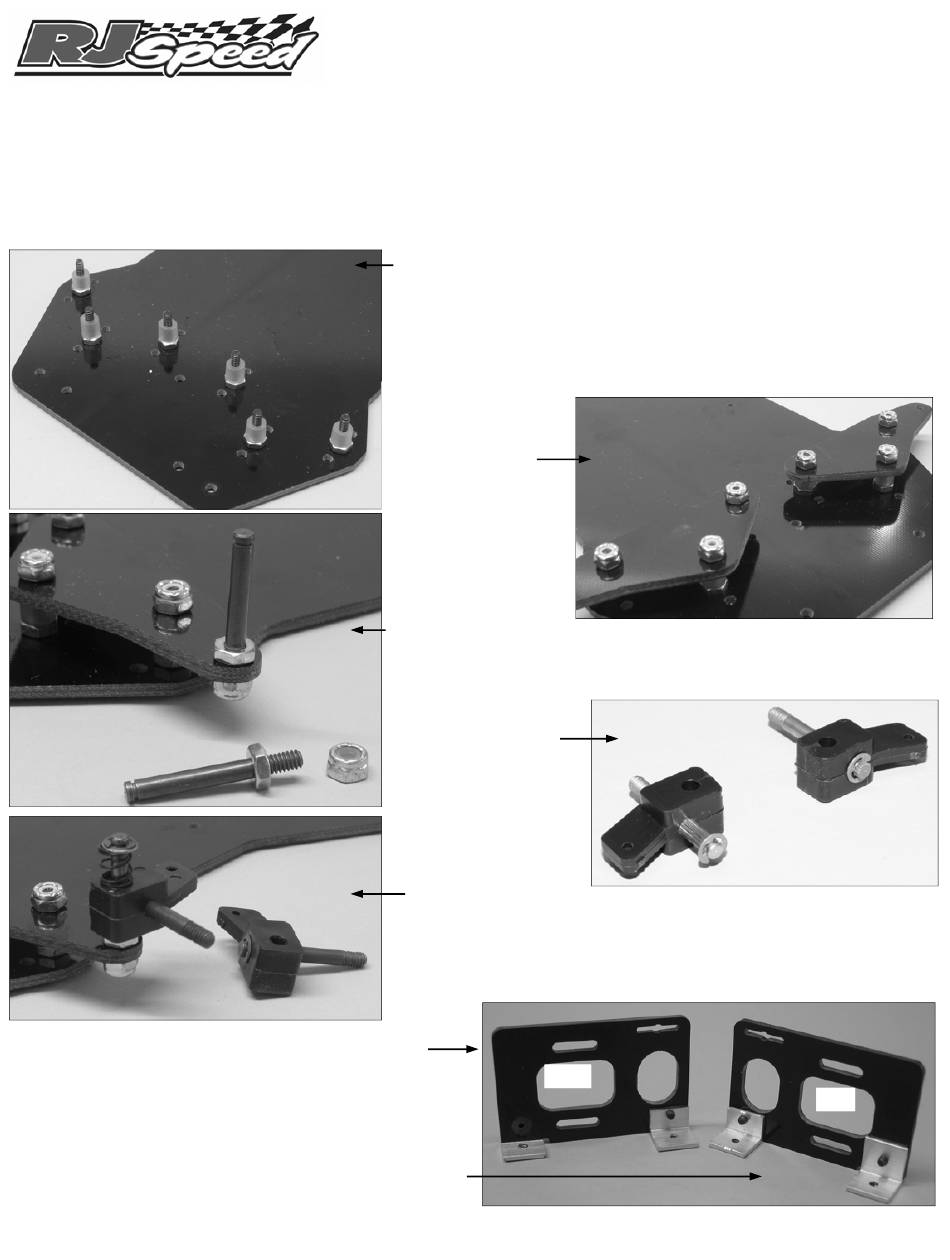

STEP 1 GET THE CHASSIS FROM BAG 1 AND OPEN BAG 2 . DO
NOT OPEN THE INNER BAG S2A YET. INSTALL SIX 5/8" LONG
SCREWS IN THE CHASSIS IN THE CENTER SET OF HOLES FOR
THE FRONT PLATES . ADD A JAM NUT ON EACH AND TIGHTEN.
ADD A SILICONE TUBE ON EACH ONE.
STEP 2 INSTALL THE
A-ARMS AS SHOWN
AND RETAIN WITH
LOCKNUTS.
TIGHTEN THEM UN-
TIL THE A-ARMS
TOUCH THE TUBING.
YOU CAN ADJUST
THEM LATER TO
KEEP THE TIRE
WEAR EVEN.
STEP 3 THREAD A JAM NUT (THIN ONE ) ON EACH KINGPIN,
INSERT THE KINGPIN THRU THE FRONT AXLE PLATE AND RE-
TAIN WITH A LOCKNUT.
STEP 4 SLIDE A STUB
AXLE IN EACH
STEERING BLOCK AS
SHOWN AND ADD AN
E-CLIP.
STEP 5 LUBE EACH KINGPIN WITH A SMALL AMOUNT OF
GREASE OR SILICONE LUBE. SLIDE A STEERING BLOCK ON
EACH ONE, ADD A SPRING, THEN THE STEEL WASHER, AND
RETAIN WITH AN E-CLIP ON EACH ONE.
RIGHT
1
LEFT
