2.1 Basic Navigation Modes

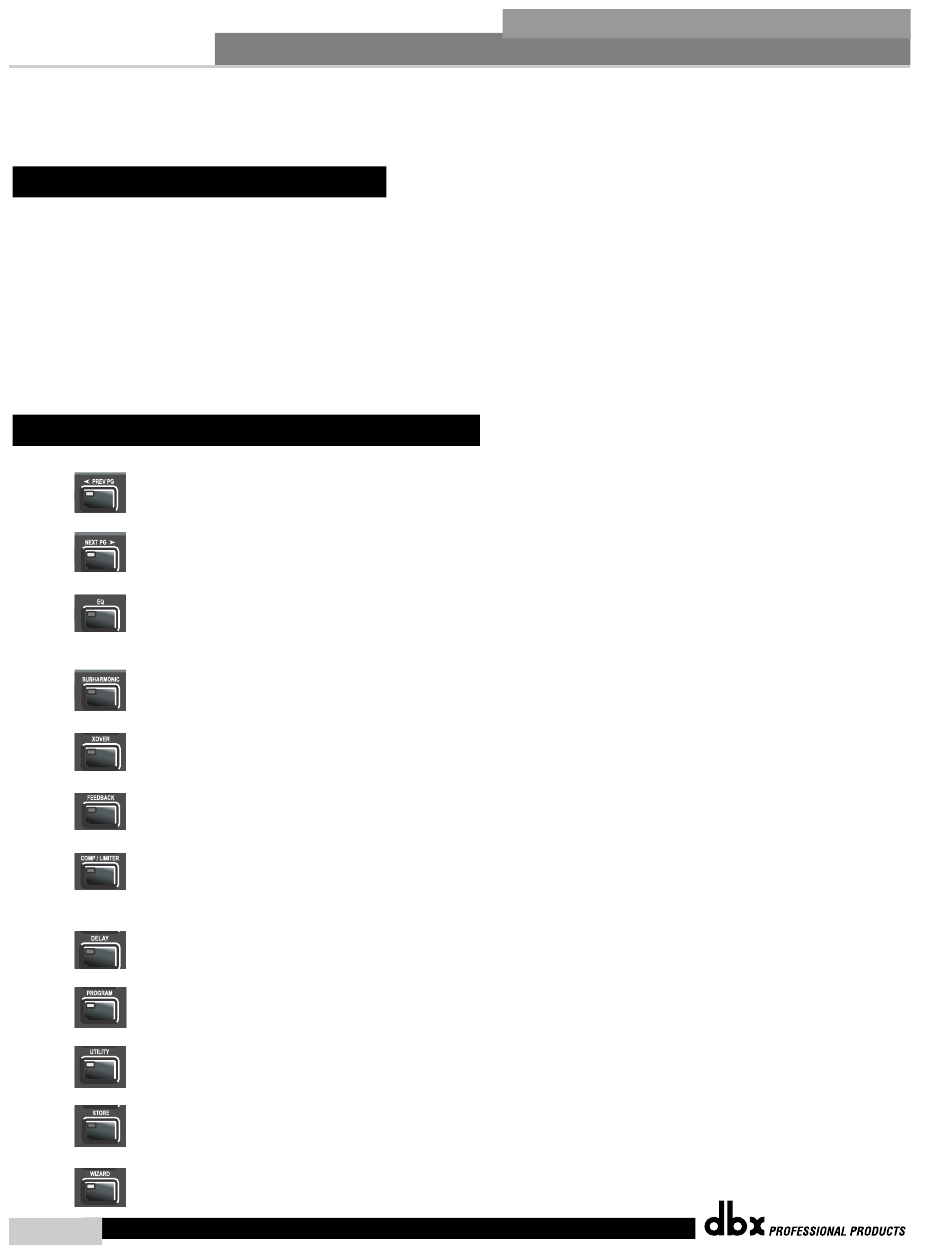

2.2 FX Button Array Overview
PREVIOUS PAGE - Moves to the previous page in the currently selected
effect menu.
NEXT PAGE - Moves to the next page in the currently selected effect menu.
EQ - Selects the EQ effect menu. This is the EQ section located prior to the
crossover section.
crossover 28 band EQ and Post-xover PEQ section modules.
SUBHARMONIC - Selects the Subharmonic Synthesizer section.
XOVER - Selects the Crossover section.
FEEDBACK - Selects the Advanced Feedback Suppression (AFS) effect section.
COMP/LIMITER - Selects the Compressor and the Limiter effect section.
Successive presses will move from the Compressor (pre-xover) to the Limiter (post-
xover).
DELAY - Selects the Alignment Delay effect module.
PROGRAM - This button is used to enter the Program screen from any sub
section within the unit when pressed.
UTILITY - Selects the Utility menu of the DriveRack Studio.
STORE - The store button is used to store program edits.
WIZARD - Enters the DriveRack Studio Wizard setup menu which includes:
System Setup, Auto EQ setup and AFS Wizard.
DriveRack Studio User Manual
12
Editing Functions
The DriveRack Studio has been carefully designed and engineered to ensure that all aspects of
operation are intuitive and logical. Simply stated, the DriveRack Studio operating system was
designed with user's best interest in mind.
Navigational aspects of the DriveRack Studio are clear, concise and more important: flexible.
The DriveRack Studio provides you with essentially three different modes of navigation when
performing program edits. 1. FX buttons - This array of 12 FX buttons is your primary mode
of directly accessing any effect module. 2. NEXTPG & PREVPG page buttons - Successive
presses of the NEXTPG or PREVPG page buttons will move the user from one page to the
next in an effect block. 3. Data Wheel - The Data Wheel is used to move through the pro-
gram menu of the DriveRack Studio. The Data wheel is also used to change the values of the
selected parameter by simply rotating the wheel. Pressing the Data wheel will toggle between
the available parameters on any selected page of the currently selected effect module.
Successive presses will rotate through the various pre-
