Electrical Schematics - Omcan IC-CN-0500 Instruction Manual

Parts Breakdown
Model IC-CN-0500
Item No. Description
AF867 Handle for 47081
AF868 Ice Holder for 47081
AF869 Acrylic Box for 47081
AF870 Ice Exit for 47081

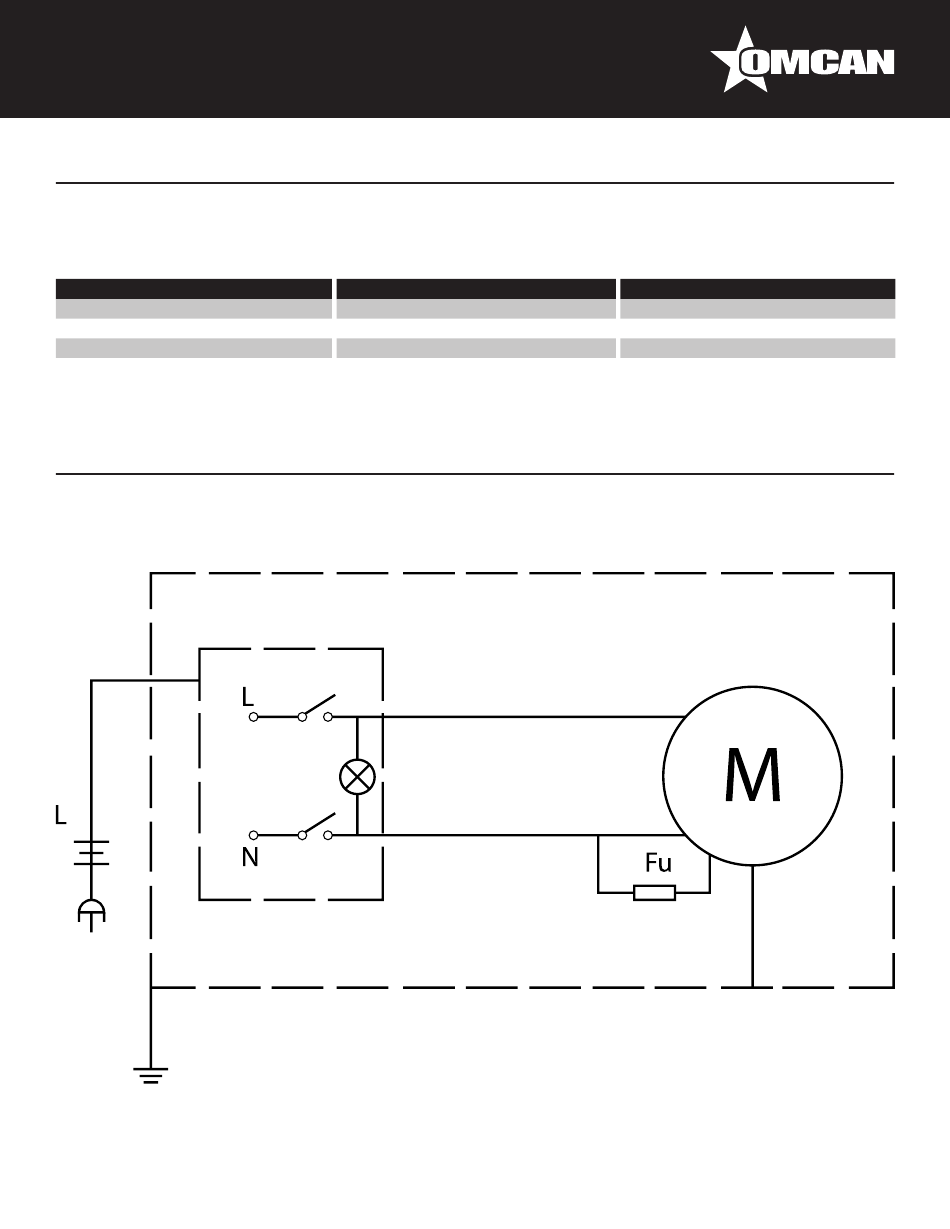

Electrical Schematics

Model IC-CN-0500
47081
Position Item No. Description
1 AF871 Plug for 47081
2 AF872 Switch for 47081
3 AF873 Motor for 47081
4 AF874 Shell for 47081
47081
Position Item No.
5 AF875
6 AF876
7
8
8
Description Position
Blade for 47081 9
Label for 47081
