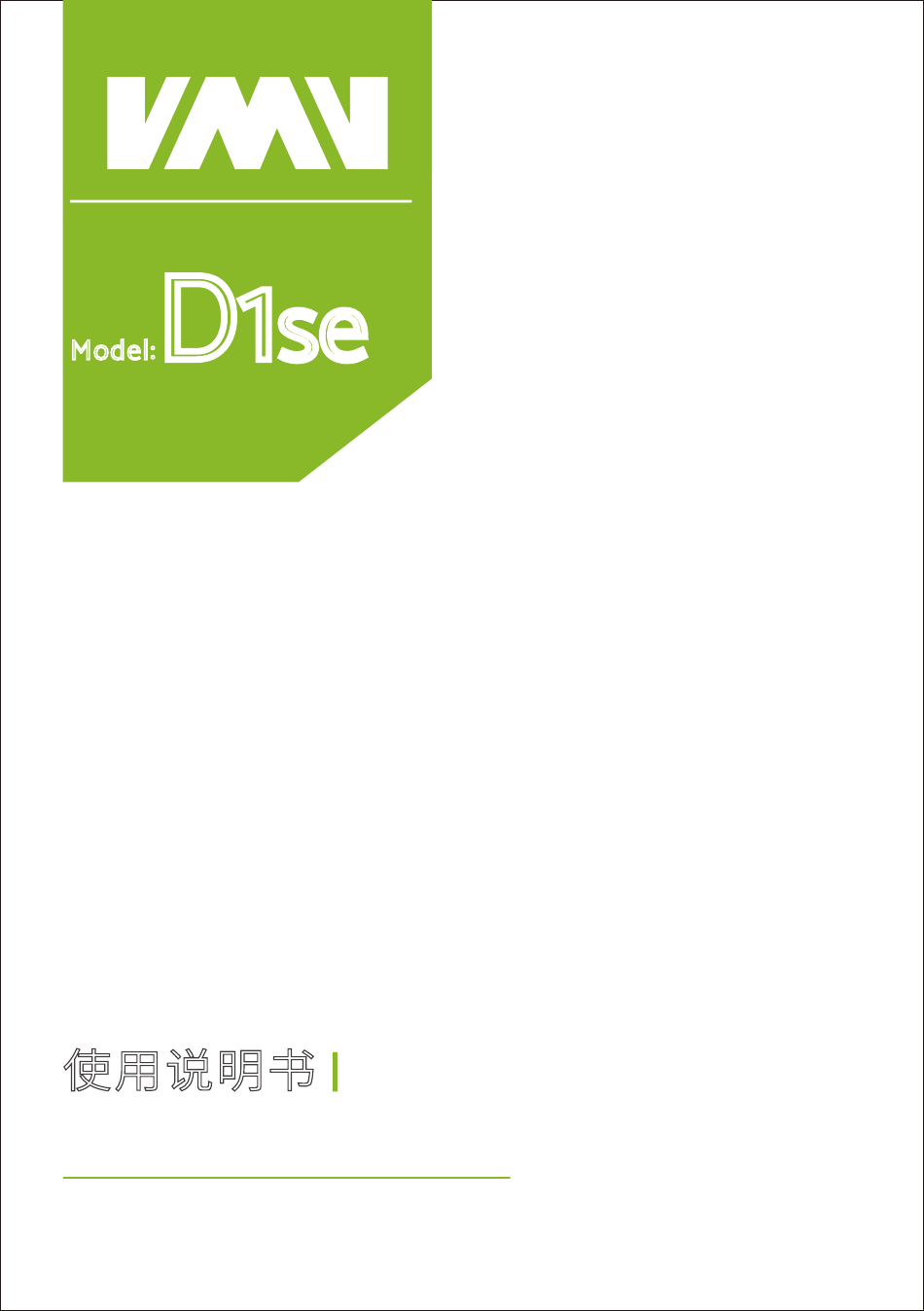

- Page 1 Model: 使用说明书 USER MANUAL http://www.smsl-audio.com/ 本说明书的内容可能会随版本更改, 如有变动, 恕不另行通知 The contents of this manual may be changed with the edition, Ver 1.0 and are subject to change without notice.
-
Page 2: Safety Notes
Safety notes CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, CAUTION RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK). DO NOT OPEN The lightning flash with arrowhead symbol,with in an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 Features Supports MQA decoding； All-aluminum CNC high-end appearance design； Equipped with adjustable feet； The newly developed intelligent temperature compensation system(ITS) ensures that the product is always in the best performance state； The top performance D/A chip ES9038PRO from ESS Technology； The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms, to push ES9038PRO to the limit；...
-
Page 4: Specification
Specification Input ....................USB / Optical / Coaxial / Bluetooth Output ................................RCA /XLR THD+N ............................0.00009%(-121dB) Dynamic range ............XLR 130dB 123dB SNR ..................................130dB Output impedance ..........XLR 207Ω 142Ω USB transmission ........................Asynchronization USB compatibility .............Windows 7 / 8 / 8.1 / 10, Mac OSX、Linux Bit depth ..............USB 1bit，... -
Page 5: Remote Control

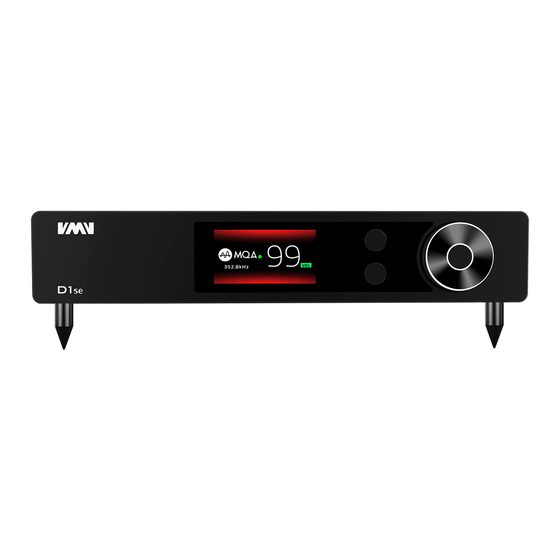

Remote Control Install 2 x AAA batteries as instructions When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control. - Page 6 Functions Main unit front D 1 se 1. Multi-function knob 2.LED 3.Display 4.Input source select 5.Remote window 6.Bluetooth...
- Page 7 Main unit back D1se 7. Bluetooth antenna 11. I S input 8. Optical input 12. Coaxial input 9. Balanced output 13. USB input 10. RCA output 14. AC IN（100V-24V AC）...
- Page 8 About MQA MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. The D1se includes MQA technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording.
- Page 9 Operation Instructions MAIN 1. Audio format 2. Volume Level 352.8kHz 3. Sampling rate INPUT I N P U T S 1. USB AUDIO USB AUDIO 2. OPTICAL OPTICAL COAXIAL 3. COAXIAL I2S(HDMI) 4. I S(HDMI) BLUETOOTH 5. BLUETOOTH...
- Page 10 PCM FILTER P C M F I LT E R (This setup is only valid for non-MQA PCM format. Fast Linear Products with a full MQA Decoder unfold the file Slow Linear to deliver the highest possible sound quality. At Fast Minimum this level of playback you are hearing what the Slow Minimum...
- Page 11 DSD FILTER D S D F I LT E R There are 4 kinds of digital filtering in total. 47k Cutoff It's the way that the digital operation means 50k Cutoff the clutter outside the audioFilter out, 60k Cutoff respectively 70k Cutoff 47kHz Cutoff 50kHz Cutoff...
- Page 12 DPLL DPLL BANDWIDTH MIN ~ MAX (A total of 15 kinds, the default is 7 kinds. The larger the number is, the stronger the range to adapt to jitter, and the smaller the number, Default value the better the performance against clock jitter.) DIMMER D I M M E R The range is 5 seconds-60 seconds.
- Page 13 I2S Instructions S MODE NORMAL INVERTED S DATA + S DATA - S DATA - S DATA + S BCK + S BCK + S BCK - S BCK - S LRCLK - S LRCLK + S LRCLK - S LRCLK + S MCLK + S MCLK + S MCLK -...
- Page 14 I2S Instructions S DSD FLAG DSD FLAG=PIN15 DSD FLAG=PIN14 S DATA + S DATA + S DATA - S DATA - S BCK + S BCK + S BCK - S BCK - S LRCLK + S LRCLK + S LRCLK - S LRCLK - S MCLK + S MCLK +...
- Page 15 Clear pairing: Long press the “Bluetooth" button(FN) on the remote control. After clearing the pairing, some phones may no longer be able to search for “VMV D1se". In this case, you need to delete the Bluetooth device “VMV D1se" which saved in...
-
Page 16: Factory Reset
Factory Reset Connect the power cord when pressing the power button, until the screen shows logo. Warranty Terms 1.The Term of Service Foshan Shuangmusanlin Technology Co., Ltd promises to offer good-quality products. If the product is broken in 7 days after purchasing when you use it normally, you can choose to send it back for return, replacement or repairing (only the product does not affect the second sales can be returned ).
