Summary of Contents for SMSL M200
- Page 3 全新系列的外观设计！ DAC使用AKM公司的旗舰音频解码芯片AK4497，配合精心设计的电路，使其性 能达到前所未有的0.00015%（-116dB）的失真度！ 第二代 XMOS方案，PCM采样率最高支持32bit/768kHz，DSD支持到DSD512， 独家定制支持Native DSD的驱动程序。 最新的高通(原CSR)蓝牙方案, 支持UAT/LDAC/aptX-HD/AAC/SBC等编码格式和最 高24bit/192kHz的音频! 时钟系统使用了独立的超低时钟抖动，超低相噪的晶振作为音频时钟。 内置高性能电源净化系统, 为DAC和LPF提供充足且低噪声的电源。 使用大量的音频专用发烧级低噪声电阻电容。 全平衡设计，并具备真正平衡输出。 配备全功能遥控。 大型的LED显示屏, 便于远距离操作! 全铝合金CNC精密加工机壳有效减少干扰。 配备低噪声电源适配器。...
- Page 4 输入接口 ...............USB、光纤、同轴、蓝牙 输出电平................RCA 2Vrms XLR 4.1Vrms THD+N(不计权)............. 0.00015% (-116dB) 动态范围(A计权)............... RCA 123dB XLR 125dB 信噪比(A计权)................. 125dB 蓝牙规格： UAT ........24bit/192kHz_1200kbps -1200kbps/900kbps/600kbps LDAC ........24bit/96kHz_990kbps -990kbps/660kbps/330kbps aptX-HD ................24bit/48 kHz_576kbps aptX ................16bit/44.1 kHz_352kbps SBC ................16bit/44.1 kHz_328kbps AAC ................16bit/44.1 kHz_320kbps USB传输方式................异步传输 USB兼容性.............Windows 7 / 8 / 8.1 / 10 Mac OS X10.6以上...
- Page 5 退出菜单...
- Page 6 红外遥控接收窗 平衡输出 显示屏 同轴输入 旋钮 光纤输入 电源/功能按键 USB输入 线路输出 电源输入(DC5V) 蓝牙天线...
- Page 7 开机时会显示 意思为M200。 在没有输入信号或者采样率超出本机范围，显示屏会显示 。 在切换输入会显示 （ 按遥控器“输入选择”键或者短按“电源功能”键进行输入源选择操作 ） 在调节音量时，显示音量大小。范围是 最大， 最小。 在静音时，会闪烁显示当前音量。 当播放歌曲为DSD格式时显示 蓝牙使用方法: 1. 连接: 将输入源切换至蓝牙 ， 打开手机蓝牙功能 ， 搜索 “ SMSL HDBT ” , 搜索到后 点击配对连接 ， 当手机显示 “ 已连接 ” 则已连接成功 ; 2.清除配对：长按遥控器 “ 输入选择 ” 按键。...
- Page 8 使用遥控器 “ ” 进入菜单/确认 键与机器上的旋钮与按键可以进入PCM滤波器、音色、 显示亮度的调节。 操作范例 （ 使用音色2 ） ： a. 遥控器操作：按遥控器 “ ” “ 进入菜单/确认 键进入菜单→再按三下 进入菜单/确认 ” 键进入音色选项菜单→再按 “ 音量加/向上 ” 键，选择 “ ” →最后按一下 “ 退出菜单 ” 键完成操作。 b. 使用机器上的按键与旋钮操作:连续短按 “ ” 电源/功能 键两次(双击)进入菜单→ 短按三次 “ 电源/功能...
- Page 10 USER MANUAL http://www.smsl-audio.com/...
- Page 11 Use the voltage specified on this unit Only. Using this unit with a higher voltage than specified is dangerous and may cause fire , damage to this unit, or personal injury. SMSL will not be held responsible for any damage resulting from the use of this unit with a voltage other than that specified.

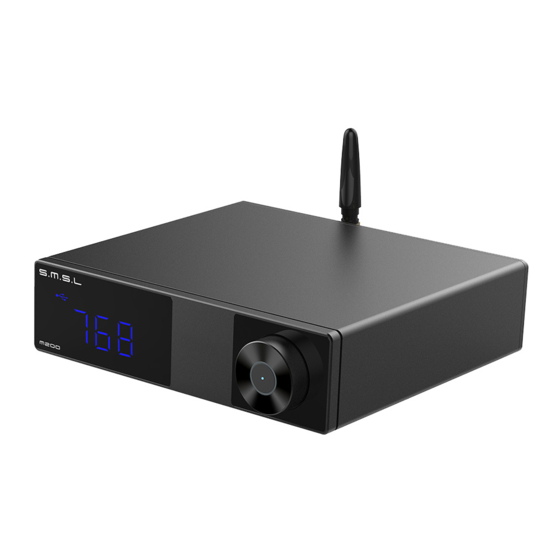

- Page 12 Features Exterior design of the new series. The unit uses AKM's flagship DAC chip the AK4497, with a well-designed circuit that delivers an unprecedented 0.00015% (-116dB) distortion! The 2 XMOS solution, PCM supports up to 32bit/768kHz, and DSD supports up to DSD512, custom driver for Native DSD. The latest Qualcomm (original CSR) Bluetooth solution supports UAT / LDAC / aptX-HD / AAC / SBC and other encoding formats and audio up to 24bit / 192kHz!
-
Page 13: Specification
Specification Inputs ................USB / Optical / Coaxial / Bluetooth Output Level....................RCA 2Vrms XLR 4.1Vrms THD+N(UN-WTD)................0.00015% (-116dB) Dynamic range (A-WTD)...................RCA 123dB XLR 125dB SNR (A-WTD)......................125dB Bluetooth： UAT ........24bit/192kHz_1200kbps ( -1200kbps/900kbps/600kbps ) LDAC ......... 24bit/96kHz_990kbps ( -990kbps/660kbps/330kbps ) aptX-HD ..................24bit/48kHz_576kbps aptX ..................16bit/44.1kHz_352kbps SBC ..................16bit/44.1kHz_328kbps AAC ..................16bit/44.1kHz_320kbps... -
Page 14: Operating The Remote Control
Display volume / sampling rate Input select (Long press to clear the paired Bluetooth device) Switch to control M200 Invalid Note 1. This remote controller uses 2 x R03/AAA batteries. 2. When you first operate M200, press the C key first. - Page 15 Interface Remote window Balanced output Display Coaxial input Optical input Knob Power / function input Power Supply(DC5V) RCA output Bluebooth antenna...
-
Page 16: Input Selection
How to use Bluetooth: Connect: Switch the input to Bluetooth, turn on the Bluetooth function of the phone, search for "SMSL HDBT", click the pairing connection after searching, when the phone displays "connected", the connection is successful; Clear pairing: Hold the "input selection" key on the remote control. -
Page 17: Dsd Filter
Operations 3.Function menu operation instructions Use the "MENU / OK" key on the remote control and the knobs and buttons on the unit to enter the PCM filter, sound color, and display brightness adjustment. Operation example (Sound color 2): a. Remote control operation: Press the "MENU /OK" key on the remote control to enter the menu →... -
Page 18: Factory Reset
Factory Reset Connect the power cord when pressing the power button, until screen shows text. Warranty Terms 1.The Term of Service Foshan Shuangmusanlin Technology Co., Ltd promises to offer good-quality products. If the product is broken in 7 days after purchasing when you use it normally, you can choose to send it back for return, replacement or repairing (only the product does not affect the second sales can be returned ).
