Instructions-Parts
Automatic AirPro
Spray Guns
Conventional, HVLP, and Compliant guns for spraying paints and coatings.
For professional use only.
See page 2 for model information.
100 psi (0.7 MPa, 7 bar) Maximum Working Fluid Pressure
100 psi (0.7 MPa, 7 bar) Maximum Working Air Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.

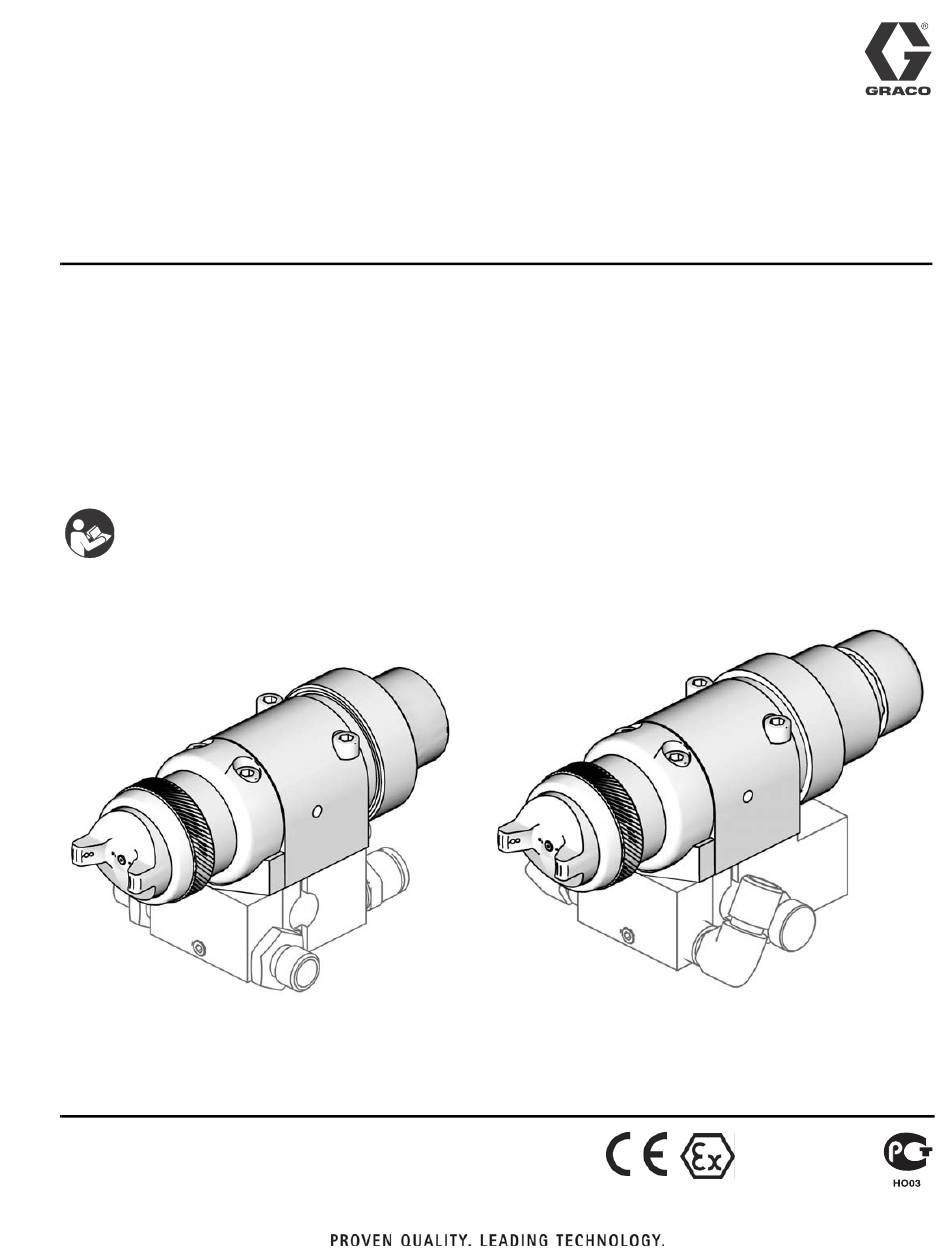

Part 24A749 Conventional Gun shown
mounted on Part 288217 Manifold.
®
ti13585a
Part 24A753 Conventional Gun with fluid control
shown mounted on Part 288223 Manifold.
313516F
EN
ti13586a
II 2 G c IIB T6
