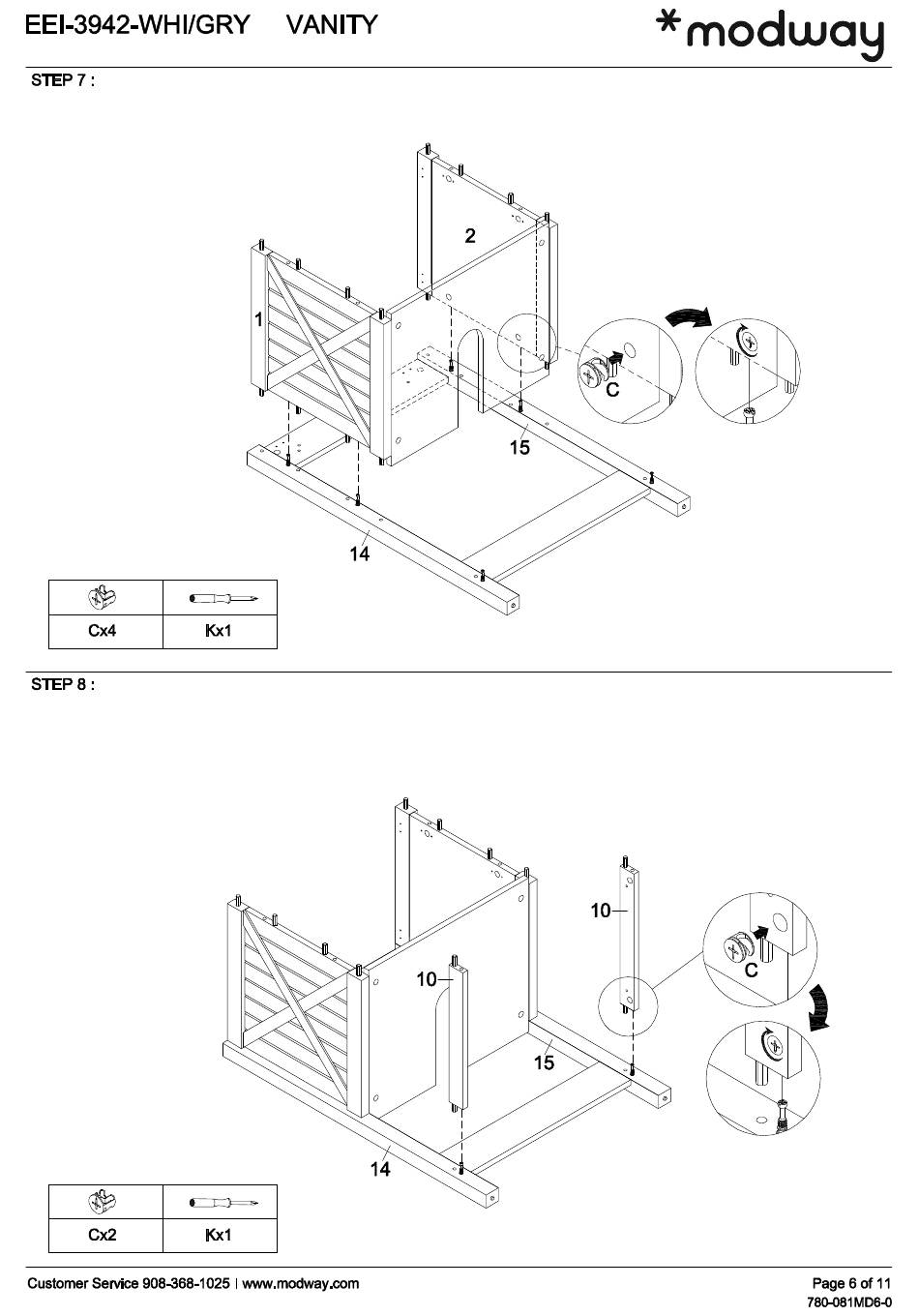

Properly insert the Camlock (C) in the pre-drilled hole then align it to the assembled Cambolt (B) to secure
both of Side Panel Left (1) and Side Panel Right (2) to the Vertical Panel 3 (14) and Vertical Panel 4 (15).
Properly insert the Camlock (C) in the pre-drilled hole then align it to the assembled Cambolt (B) to secure
Base Panel 3 (10) to the Vertical Panel 3 (14) and Vertical Panel 4 (15).
Hardware required. Screwdriver not included
Hardware required. Screwdriver not included
Hardware required. Screwdriver not included
