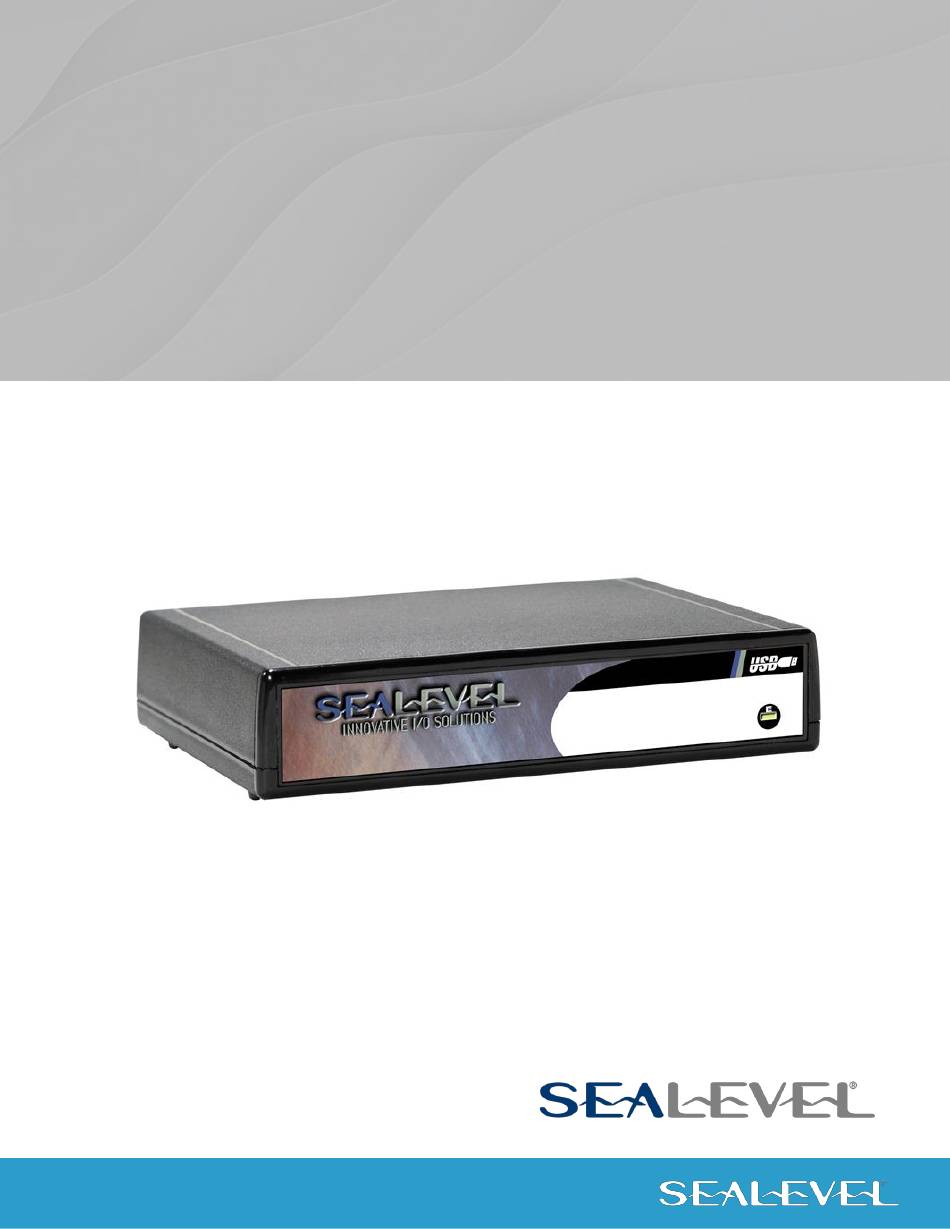

- Page 1 SeaLINK PIO-48 User Manual | 8203 © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021...
-
Page 2: Table Of Contents
APPENDIX A – TROUBLESHOOTING........................ 15 APPENDIX B – HOW TO GET ASSISTANCE ..................... 16 APPENDIX C – SILK SCREEN - 8203 PCB ......................17 APPENDIX D – COMPLIANCE NOTICES ......................18 WARRANTY ................................ 19 © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 3: Introduction
The SeaLINK PIO-48 is designed to be used under Windows 98/ME/2000/XP. The SeaI/O API (Application Programmer Interface) available on Sealevel’s website provides a variety of useful high-level function calls implemented in a Windows dynamic link library (DLL). This API gives access to the SeaLINK PIO-48’s I/O from Windows-based platforms such as Visual C++. -
Page 4: Before You Get Started
Before You Get Started What’s Included The SeaLINK PIO-48 is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. • SeaLINK PIO-48 Module • AC/DC 5V Power Supply (Item# TR101) •... - Page 5 Depending upon your application, you are likely to find one or more of the following items useful for interfacing the SeaLINK PIO-48 to real-world signals. All items can be purchased from our website (http://www.sealevel.com) or by calling (864) 843-4343. For TTL Applications •...
- Page 6 Module simulates the operation and load characteristics of a standard 24-channel relay rack. An LED corresponding to each port bit illuminates to indicate state. Eight position DIP-switches are used to generate input status changes. © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021...
-
Page 7: Software Installation
Scroll through the list of categorized hardware and select ‘SeaIO Devices.’ If this is the first SeaIO device you may need to select ‘Other Devices’ and ‘Sealevel Systems, Inc.’ instead of ‘SeaIO Devices.’... - Page 8 SeaIO cards as you wish to install. For additional software support, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00 AM - 5:00 PM Eastern Time, Monday through Friday. For email support contact: support@sealevel.com.
-
Page 9: Physical Installation
Next, view your system’s Device Manager. You should have a new ‘SeaIO 8203’ in the SeaI/O Device heading indicating the installation was successful. The SeaLINK PIO-48 is now ready for use. © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 10: Digital I/O Interface
Each of the two 50-pin connectors has the following pin out which is compatible with a wide variety of solid state relay racks: © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 11: Programming The Sealink Pio-48
Programming the SeaLINK PIO-48 Sealevel’s SeaI/O software is provided to assist in the development of reliable applications for the Sealevel Systems family of digital I/O adapters. Included in the SeaI/O software are driver functions for use in accessing the I/O as well as helpful samples and utilities. -
Page 12: Electrical Characteristics
The SeaLINK PIO-48 uses 74ABT245 octal bi-directional transceivers to provide TTL input/output capabilities. Each bit is pulled to +5V through a 10K ohm pull-up resistor to insure each bit is at a known state when not driven. © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 13: Specifications
Logic Low Max 0.5VDC @ 64 mA Temperature Range Operating 0°C - 70°C Storage -50°C - 105°C Power Consumption Supply line +5 VDC +5VDC Rating 400 mA (no load) 2.4A (Max) © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 14: Example Circuits
Example Circuits © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 15: Appendix A - Troubleshooting
No two adapters can occupy the same I/O address. Make sure the Sealevel Systems adapter is using a unique IRQ The IRQ is typically selected via an on-board header block. Refer to the section on Card Setup for help in choosing an I/O address and IRQ. -
Page 16: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 17: Appendix C - Silk Screen - 8203 Pcb
Appendix C – Silk Screen - 8203 PCB © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 18: Appendix D - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 8203 Manual | SL9104 7/2021... -
Page 19: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
