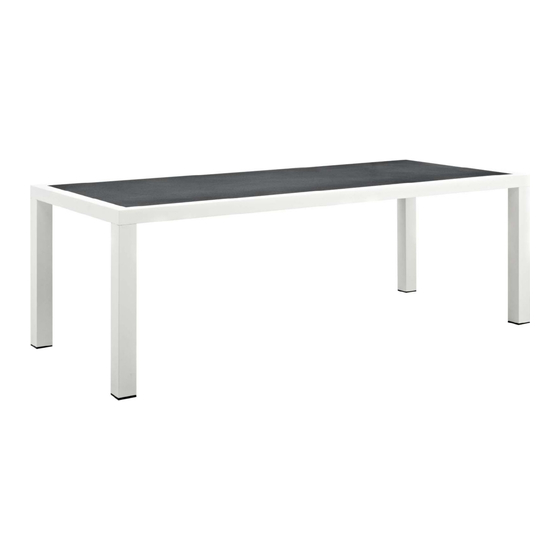

EEI –3052 Dining Table
Thank you for purchasing the MODWAY DINING TABLE！
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the table, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
1
Glass x1
Customer Service 908-368-1025︱www.modwayfurniture.com
2 Frame x1
3 Leg x4
Hardware:
A.
B.
C.
D.
E.
Bolt M10x680mm
x 4
Flat Washer M10
x 4
Nut M10
x8
Wrench
x1
Tube Plug
x4
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for modway EEI-3052
Summary of Contents for modway EEI-3052
- Page 1 EEI –3052 Dining Table Thank you for purchasing the MODWAY DINING TABLE！ Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the table, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –3052 Dining Table STEP 1: Insert 4 pieces of Bolts (A) into Nut (C). Tighten Bolts (A) by hand. Hardware & Tools required STEP 2: Put Frame (2) on a carpeted or padded surface. Insert 4 pieces of assembled Bolts (A) into the pre-drilled holes on back of Frame (2). Tighten Bolts (A) clockwise until secure by hand.
- Page 3 EEI –3052 Dining Table STEP 3: Insert 4 pieces of Legs (3) on Bolts (A) through the pre-drilled holes on Legs (3). STEP 4: Insert 4 pieces of Nuts (C) with 4 pieces of Flat Washers (B) into the pre-drilled holes on Legs (3) to the end of assembled Bolts (A).
- Page 4 EEI –3052 Dining Table STEP 5: Insert 4 pieces of Tube Plugs (E) into the end of pre-drilled holes on Legs (3) as shown. Hardware & Tools required STEP 6: Carefully turn over the assembled dining table. Customer Service 908-368-1025︱www.modwayfurniture.com Page 4 of 5...
- Page 5 EEI –3052 Dining Table STEP 7: Then carefully put Glass (1) on Frame (2) as shown. STEP 8: Assembly is complete. Your dining table is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 5...
