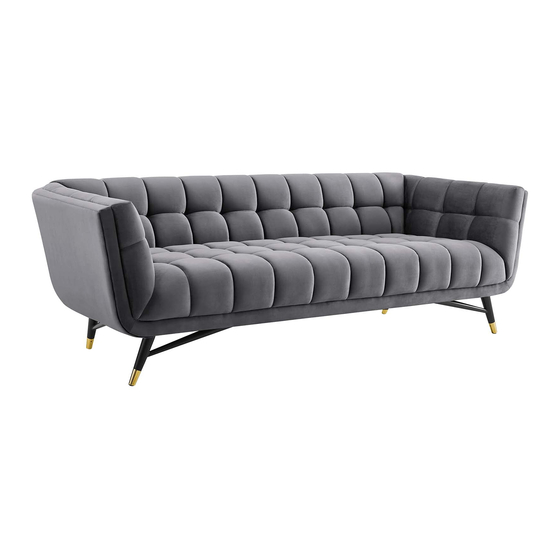

EEI-3059 SOFA/EEI-3060 CHAIR
Thank you for purchasing the MODWAY SOFA/CHAIR.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa/chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 20 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Hardware:
EEI-3059
EEI-3060
Components:
1 Sofa Body x1
4L/4R Back Leg x2
Customer Service 908-368-1025︱www.modway.com
2L/2R
Front Leg x 2
5 Back leg stretcher x2
A.
Bolt M8x 65mm
B.
Bolt M8x 55mm
C.
Spring Washer
D.
Flat Washer
E.
Allen Wrench
3 Front leg stretcher x 2
x 8
x 4
x 12
x 12
x1
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway Adept Performance EEI-3059
Summary of Contents for modway Adept Performance EEI-3059
- Page 1 EEI-3059 SOFA/EEI-3060 CHAIR Thank you for purchasing the MODWAY SOFA/CHAIR. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the sofa/chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 Attach 1 piece of Front Leg (2L) to the bottom of Sofa Body (1) by using 2 pieces of Bolts (A) with 2 pieces of Spring Washer (C) and 2 pieces of Flat Washer (D) as shown. Tighten Bolts (A) by using Allen Wrench (E) as shown. Hardware & Tools required Customer Service 908-368-1025︱www.modway.com Page 2 of 4...
- Page 3 Bolts (A) and 1 piece of Bolt (B) with 3 pieces of Spring Washer (C) and 3 pieces of Flat Washer (D) as shown. Tighten Bolts by using Allen Wrench (E) as shown Hardware & Tools required Customer Service 908-368-1025︱www.modway.com Page 3 of 4...
- Page 4 Carefully turn over the assembled Sofa Body (1) and Legs (2) & (4) from step 5 by two adults as shown to avoid leg crack. Assembly is complete. Your Sofa/Chair is ready to be used now! Customer Service 908-368-1025︱www.modway.com Page 4 of 4...
