Summary of Contents for Strong SRT 32HA4003N

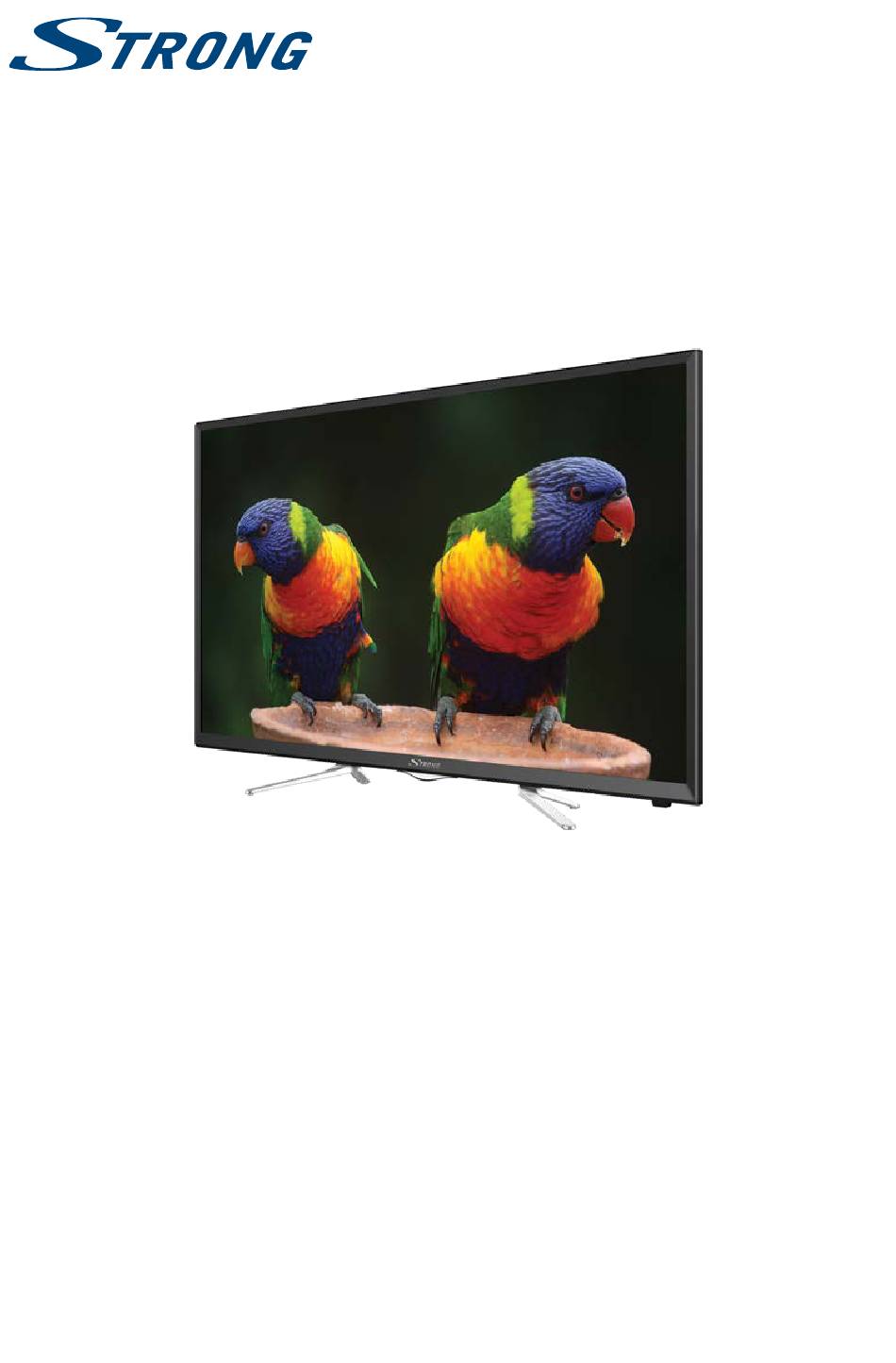

- Page 1 LED TV with DVB-T2/C/S2 SRT 32HA4003N User Manual Manuale utente Uživatelská příručka Používateľská príručka...
- Page 4 Supplied by STRONG Austria Represented by STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Vienna, Austria Email: support_at@strong.tv 01 Oct 2018 13:52...
- Page 5 Hereby, STRONG declares that the radio equipment type LED TV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.strong.tv/en/doc Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change.
-
Page 6: Table Of Contents
TABLE OF CONTENTS 1.0 INSTRUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Accessories 1.4 Equipment set-up 2.0 INSTALLATION 2.1 Default PIN code: 0000 2.2 Front panel/underside 2.3 Rear panel 2.4 Side panel 2.5 Remote control 2.6 Installing the batteries 2.7 Using the remote control 3.0 FIRST TIME INSTALLATION 3.1 DVB-S/S2 installation 3.2 DVB-T/T2 installation... -
Page 7: Instruction
1.0 INSTRUCTION 1.1 Safety Instructions Read all of the instructions before operating the set. Keep these instructions well for later use. Only use attachments/accessories specified or provided by the manufacturer (such as the „ „ exclusive supply adapter, battery etc.). Please refer to the information on the exterior back enclosure for electrical and safety „... -
Page 8: Storage
WEEE Directive Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 9: Rear Panel
1. Power indicator /remote sensor 2. Speakers 3. Buttons: Input source, Menu, V-/V+, CH-/CH+, Standby/ON. 4. Power switch ON/OFF 2.3 Rear panel NOTE: The graphics are for representation only. Fig. 3 1. AC INPUT (FIXED CABLE) Main power cable (100 - 240 V ~ 50/60 Hz) 2. - Page 10 3. (ASPECT) Change aspect ratio. 4. SOUND Change sound mode. 5. EPG Press to display the current EPG information in DTV mode. 6. (PICTURE) PIC Change picture mode. 7. 0 ~ 9 Choose channel directly. 8. LIST Call channel list 9.
-
Page 11: Installing The Batteries
Do not place the remote control under direct sunlight which will cause deformation of the unit „ „ by heat. When the remote sensor is under direct sunlight or strong lighting, the remote control will not „ „ work. If so, please change the lighting or TV's position, or operate the remote control closer to the remote sensor. -
Page 12: Dvb-S/S2 Installation
3.1 DVB-S/S2 installation Satellite Setting First select the region where you are using the TV. This important to set time zone correct. Use the t upq and confirm with OK. Press pq to highlight the satellite your dish is aimed at. Confirm with OK to mark the satellite. Use the t upq buttons to change settings for your satellite installation for each specific satellite. -
Page 13: Electronic Programme Guide (Epg)
Press OK to continue. Crypted Select FTA Channels to search Free-To-Air channels only or All Channels to search FTA and encrypted channels Press pq t u to highlight the country that you want to install, then press OK to start searching. 4.0 ELECTRONIC PROGRAMME GUIDE (EPG) EPG stands for Digital Electronic Programme Guide. -
Page 14: Sound Menu
Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture. Colour Adjust the saturation of the colour based on your own preference. Tint No function Sharpness Adjust the peaking in the detail of the picture. 5.2.2 Colour Temperature In this menu you can change the overall colour cast of the picture. -
Page 15: Channel
5.4 Channel Press MENU to display the main menu. Press t u to select Channel in the main menu. Press pq to select the option you wish to adjust in the Channel menu. Press OK to adjust. After finish your adjustment, press OK to save and return to the previous menu. Below items depend if they are available of select input source. -
Page 16: Time Menu
Schedule List Press pq in the Channel. Select Schedule List, then press OK to enter the sub- menu. Use the COLOUR BUTTONS to modify your settings. Software Update (USB) Press OK and use t u to select Yes if you want to update the software or No to go back to the main menu. -
Page 17: Usb
2. Back up all of the data in the USB storage device in case data is lost due to an unexpected accident. STRONG does not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility. -
Page 18: Usb Menu
6.2 USB menu Press SOURCE and select USB. You can view movie, music and photo files from your USB storage devices. Connect a USB storage device to the USB input terminal and select the types of media on the home page: Movie, Music, Photo and text. - Page 19 Repeat Highlight the icon and press OK. You can select 3 different modes: None to disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished. Highlight the icon and press OK to check the information of the playing Information music.
-
Page 20: Troubleshooting
Before calling a service technician, review following information for possible causes and solutions for the problem you are experiencing. If the TV does not work properly after checking it, please contact your local service line or STRONG dealer. Alternatively you can send a support mail via our website www. strong.tv. - Page 21 Make sure your dish installation is up to standards to minimize rain effects. When in doubt, ask a local satellite specialist for advice. NOTE: If the problem persists after these solutions, please contact your local support centre or send a support mail via our website www.strong.tv.
-
Page 22: Specifications
8.0 SPECIFICATIONS Audio Audio Output: 6 W + 6 W Video Channel coverage: DVB-T2: 174 MHz-230 MHz; 470 MHz-860 MHz DVB-C: 50-858 MHz DVB-S2: 950 MHz-2150 MHz System: DTV: DVB-T2, DVB-S2, DVB-C ATV: PAL/SECAM (BG/DK/1) AV: PAL, NTSC Connectors 1 x ANT/CABLE IN 1 x SAT IN 1 x CI+ 2 x HDMI...
