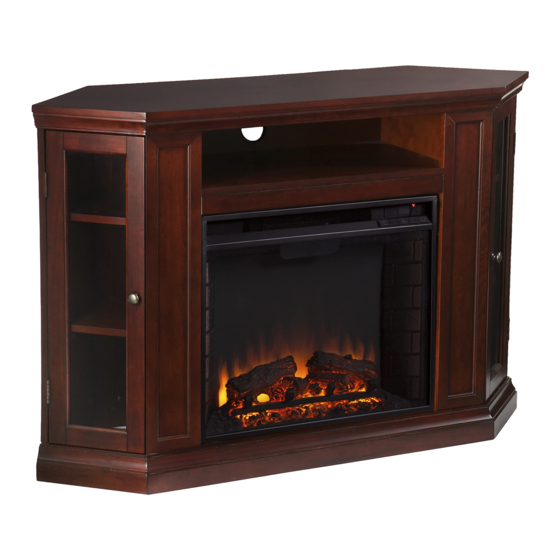

Convertible media fireplace

Advertisement

Quick Links

"CLAREMONT" CONVERTIBLE MEDIA FIREPLACE
FA930900HY-CHERRY/BLACK
FA931000TX-CHERRY
FA931400TX-IVORY
FA931500TX-BLACK
For assistance with assembly contact:
FA931600TX-BROWN MAHOGANY
Southern Enterprises Inc.
FA931700TX-GLAZED PINE
Customer Service 1-800-633-5096
service@seidal.com
Assembly Instructions
www.seidal.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLAREMONT FA930900HY and is the answer not in the manual?

Questions and answers

Summary of Contents for SEI CLAREMONT FA930900HY

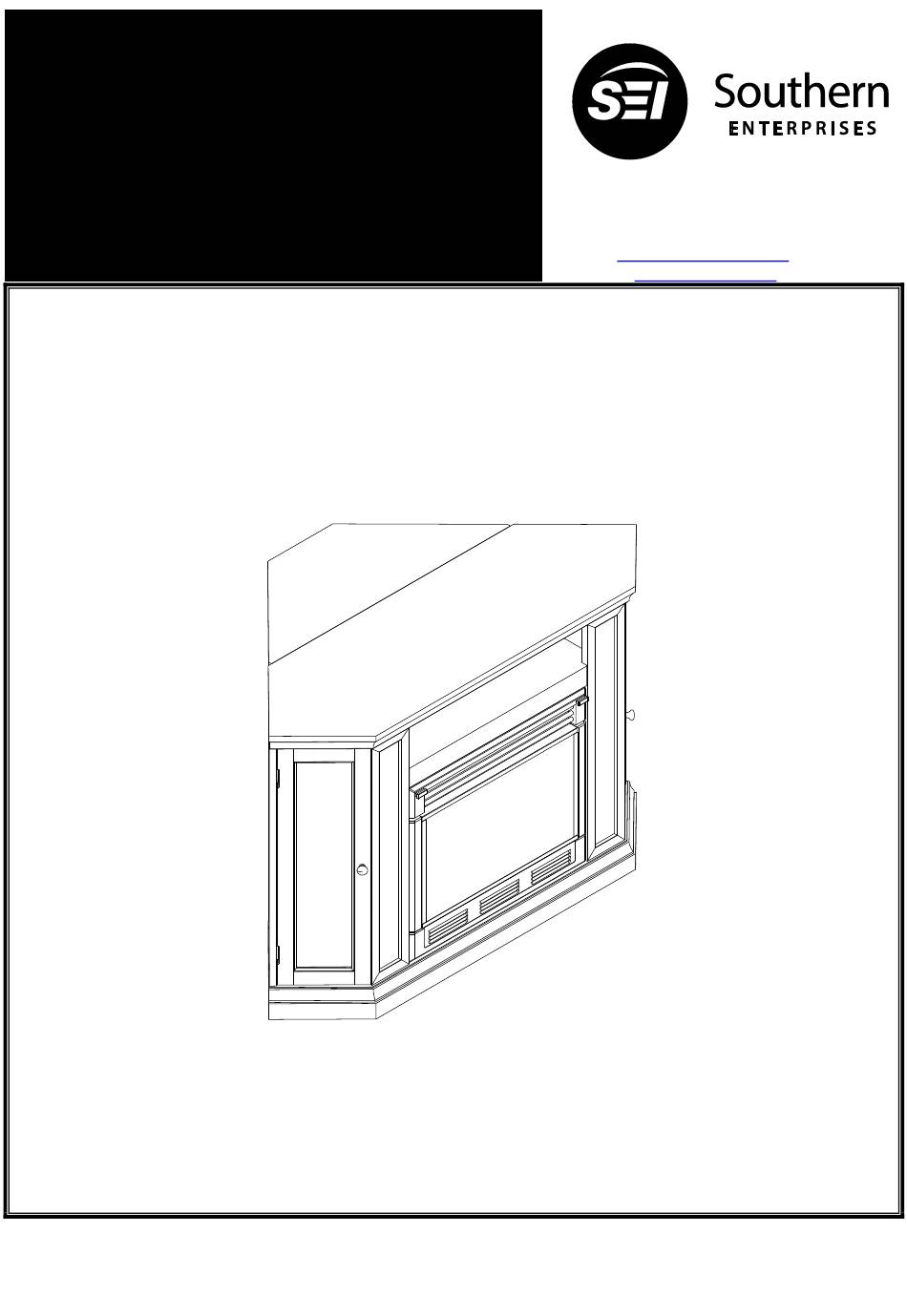

  • Page 1 “CLAREMONT” CONVERTIBLE MEDIA FIREPLACE FA930900HY-CHERRY/BLACK FA931000TX-CHERRY FA931400TX-IVORY FA931500TX-BLACK For assistance with assembly contact: FA931600TX-BROWN MAHOGANY Southern Enterprises Inc. FA931700TX-GLAZED PINE Customer Service 1-800-633-5096 service@seidal.com Assembly Instructions www.seidal.com...
  • Page 2: Parts List

    “CLAREMONT” CONVERTIBLE MEDIA FIREPLACE Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below .
  • Page 3 CLAREMONT CONVERTIBLE MEDIA FIREPLACE Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Screws shown in actual size. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below .
  • Page 4 CLAREMONT CONVERTIBLE MEDIA FIREPLACE Assembly Instructions INSERT (A) CAM BOLT & (B) WOOD DOWEL TO THE RELATED HOLES,THEN USE(C)CAM LOCK TO CONNECT (5) SUPPORT PANELS&(6) SHELF PANEL. "Please do not over tighten cambolts. FINALLY PLACE (R) COVER IN Please stop when you feel tight" CAM LOCK.
  • Page 5 CLAREMONTCONVERTIBLE MEDIA FIREPLACE Assembly Instructions INSERT (A) CAM BOLT & (B) WOOD DOWEL TO THE RELATED HOLES,THEN USE (C) CAM LOCK TO (1) CONNECT TOP PANEL . FINALLY PLACE (R) COVER IN CAM LOCK. Figure 4 INSERT (A) CAM BOLT & (B) WOOD DOWEL TO THE RELATED HOLES,THEN USE(C)CAM LOCK TO CONNECT (7) BASE .
  • Page 6 CLAREMONT CONVERTIBLE MEDIA FIREPLACE Assembly Instructions USE (M)WOOD SCREW CONNECT (8) UPPER BACK PNAEL . Figure 7 AFTER ASSEMBLE FIGURE(7) USE(K)WOOD SCREW & (Q) HINGE TO CONNECT (10)DOORS USE(M) WOOD SCREW AND (I) MAGNET LOCK ON THE RELATED HOLES; USE (K) WOOD SCREW AND (J) MAGNET PLATE ON THE RELATED PLACE.
  • Page 7 CLAREMONT CONVERTIBLE MEDIA FIREPLACE Assembly Instructions PUSH (R) INSERT TO THE RELATED PLACE OF MAIN BODY. Figure 10 INSERT THE (L) WOOD SCREW INTO THE RELATED HOLES OF (11) INNER FIXED BAR ,THEN USE SCREWDRIVER TO LOCK IT TIGHTLY. Figure 11...
  • Page 8 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
  • Page 9 CAUTION CAUTION The top shelf of this cabinet is intended for plasma/LCD televisions having a Max TV size is 42" flat screen and Max weight limit is 70 lb. The top shelf is intended for a flat screen television with a maximum overall width of 46” and supports up to 85lb.
