- Page 1 VEO-MXH44 VIDEO MATRIXES HDMI 2.0 4X4 18GBPS Matrix with Audio De-embedders USER MANUAL v.20200406...
-
Page 2: Table Of Contents
CONNECTION AND INSTALLATION ................... 8 IR REMOTE CONTROL ......................8 WEB CONTROL ......................... 9 9.1. Connecting your PC to VEO-MXH44 ................... 9 9.2. Port Set page ..........................10 9.3. EDID Config page ........................10 9.4. IP Config page ........................... 11 10. -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note

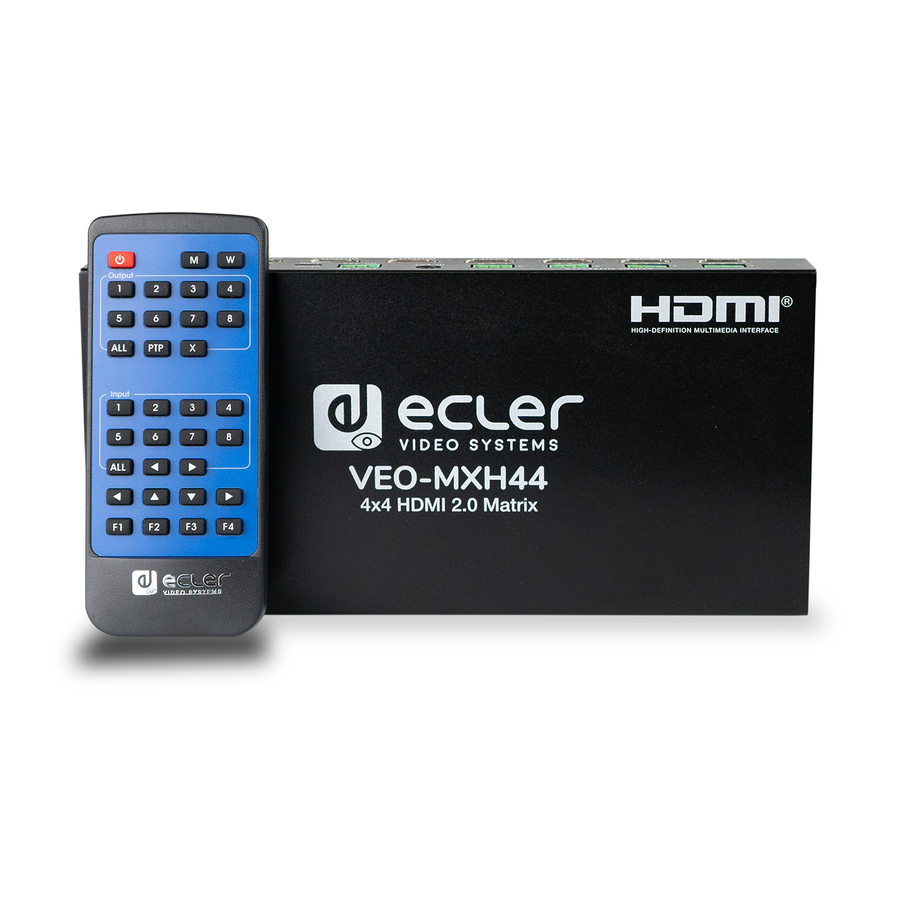

Ecler VEO-MXH44 comes with a 3-year warranty. 4. INTRODUCTION Ecler VEO-MXH44 is a 4x4 HDMI Matrix for high dynamic range (HDR) formats. It is HDCP 2.2 and 1.4 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI signals with bandwidth up to 18 Gbps. It is the ideal solution for applications requiring 4K/UHD and HDR sources and displays. -
Page 6: Package Contents
5. PACKAGE CONTENTS • 1 x HDMI 4x4 Matrix • 1 x 5VDC 3A International Power Supply • 1 x IR Rx cable • 1 x HDMI IR Remote • 5 x 3pin Euroblock plugs • 1 x Mounting Kit 6. -
Page 7: Rear Panel
6.2. REAR PANEL 1. Unbalanced Stereo Audio Output When selected audio option on EDID configuration is 2.0, it provides a de- embedded stereo analogue audio signal of the related HDMI output. 2. HDMI 2.0 Input Ports 3. IR port for External IR receiver 3.5mm Minijack to connect the external remote IR sensor included 4. -
Page 8: Connection And Installation
7. CONNECTION AND INSTALLATION 1. Connect a HDMI signal sources (such as PC, STB etc) to the VEO-MXH44 HDMI Input ports. 2. Connect the VEO-MXH44 HDMI Output ports to the displays. 3. Connect Audio and Control devices if required. 4. Power up VEO-MXH44, display and sources. -
Page 9: Web Control
IP on the same network of the matrix: 4. Click OK to confirm Once that your PC is in the same network of the VEO-MXH44, open your Internet browser and digit 192.168.1.168 to visualize the control webpage. -
Page 10: Port Set Page
9.2. Port Set page Matrix switching control page. 9.3. EDID Config page On this page it will be possible to set all the EDID options both for Video and Audio formats. Note: Analogue audio outputs are active only when 2CH is selected. When other formats are selected, the multi-channel audio is passing through the HDMI and the analogue output will be muted. -
Page 11: Ip Config Page
9.4. IP Config page 10. RS-232 and TCP/IP CONTROL FOR THIRD PARTY VEO-SWH44 can be controlled by third party control systems via serial commands through the RS-232 Euroblock port on the rear panel, or via LAN using a TCP/IP connection. Default Serial Settings: Baudrate: 115200 bps... -
Page 12: Command Strings List
10.1. Command strings list Source Selection on Output 1 Input 1 @W 00 00# Input 2 @W 00 01# Input 3 @W 00 02# Input 4 @W 00 03# Source Selection on Output 2 Input 1 @W 01 00# Input 2 @W 01 01# Input 3 @W 01 02#... - Page 13 EDID commands EDID setting @W XX AA BB# XX identifies the input: Input 1 Input 2 Input 3 Input 4 AA identifies the resolution: 1080P 4K@30Hz 4:4:4 4K@60Hz 4:2:0 4K@60Hz 4:4:4 BB identifies the following functions: 48bit 36 bit 30 bit 7.1 CH 5.1 CH 2.0 CH...
-
Page 14: Control Center Utility
11. CONTROL CENTER UTILITY 12.1. Software Connection VEO-MXH44 Control Center utility allows connecting and controlling the matrix both via RS-232 or TCP/IP connection. 12.2. RS-232 connection After pressing Search button on COM Setting, the software will automatically detect the first COM port available on your operating system; in alternative, it is possible to select the port manually. -
Page 15: Network Connection
12.3. Network connection Select Net Config tab on Control Center; Current PC information shows the IP address in use by the PC and allows to set the TCP/IP used by the software to receive commands. If there are no particular network needs, use the default 5001 port. Press Connect button and Search Device. -
Page 16: Port Set Page
If the PC and the matrix are in the same network range, the unit will be discovered and the IP address will be shown as follows: After pressing Connect on Host Device Information the software will be online and ready to control the matrix. 12.4. -
Page 17: Edid Config Page
12.5. EDID Config Page On this page it will be possible to set all the EDID options both for Video and Audio Note: formats. Analogue audio outputs are active only when 2CH is selected. When other formats are selected, the multi-channel audio is passing through the HDMI and the analogue output will be muted. -
Page 18: System Config Page
12.7. System Config Page: System configuration page give the access to functions like Reboot, Factory Default, and Power ON/OFF. Furthermore, using the command line available on this page, it will be possible to test the commands mentioned on chapter 9. for third party control systems. -
Page 19: Technical Characteristics
88.2kHz, 96kHz, 176.4kHz, 192kHz Bit rate up to 24-bit Distance HDMI up to 10 meters with Ecler VEO cables Operating Temperature -5˚C - 45˚C / 23˚F - 113˚F Humidity 20 - 90% RH (no condensation) Power Consumption 13 W MAX... - Page 20 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, in Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
