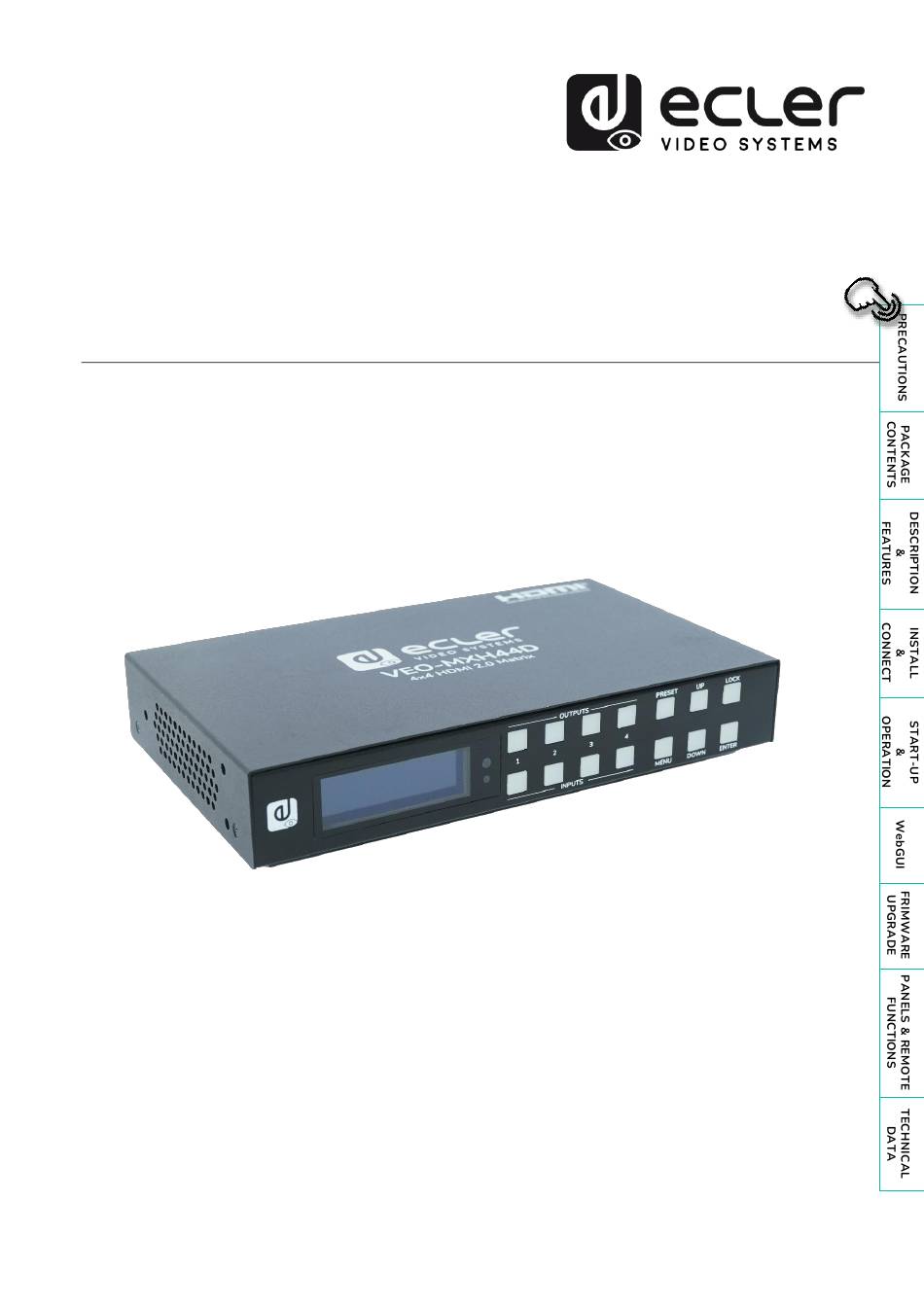

- Page 1 VEO-MXH44D SWITCHERS & MATRIXES HDMI 2.0 4x4 18Gbps Matrix with Audio De-embedders and Display USER MANUAL 50-0431-0100 VEO-MXH44D...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ..........................3 Important Remark ........................3 Important Safety Instructions ....................4 Cleaning ............................. 4 PACKAGE CONTENTS ....................... 5 DESCRIPTION & FEATURES ....................5 Main Features ........................... 6 INSTALL & CONNECT ........................ 6 START-UP & OPERATION ......................7 LCD Display control menu .................... -
Page 3: Precautions
1. PRECAUTIONS Important Remark The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instructions
1.2 Important Safety Instructions Read these instructions. 12. Unplug the device during lightening sorts or when unused for long 2. Keep these instructions. periods of time. 3. Heed all warnings. Refer all servicing to qualified 4. Follow all instructions. personnel. Servicing is required 5. -
Page 5: Package Contents
• Warranty card. 3. DESCRIPTION & FEATURES VEO-MXH44D is a 4x4 HDMI 2.0 matrix that supports up to 4K/UHD video resolution at 60 Hz with 4:4:4 chroma sampling. It features 8 analogue and digital audio de-embedding outputs, along with EDID management, an LCD display, and an integrated web GUI, providing a user-friendly configuration and control interface. -
Page 6: Main Features
3.1 Main Features • It has 4 HDMI 2.0 inputs that can be independently routed to 4 HDMI 2.0 outputs. • Supports HDMI 2.0 up to 4K @ 60Hz, YUV 4:4:4 8-bit, HDR (at 4K @ 60Hz YUV 4:2:0 10- bit). -
Page 7: Start-Up & Operation
5. START-UP & OPERATION The unit can be controlled and configured by following the steps indicated below. In addition, if you prefer, it can also be configured by the WebGUI. 5.1 LCD Display control menu To operate through the different menus, please use: •... -
Page 8: Video Control
Examples: • Switch output 1 to input 4 Operation: press output1 and then input4 to complete switch • Output 2, 1, 3 switch to input 2 Operation: press output 2, 1, 3 and then input 2 to complete switch • All output switch to input 4 Operation: long press any output 4 and then long press input 4 to complete switch. - Page 9 6. Use the “UP/▲ or DOWN/▼” button to select the desired input. The selected input will be indicated by a white colour. 7. Press "ENTER" to complete the video switching. B. On/Off Video signal can be switched on and off on any output selected By default, the output video is set to be active.
-
Page 10: Audio Control Interface
5.4 Audio Control Interface This section allows to operate and configure audio features. A. Line Out This parameter allows to turn on and off the HDMI audio output signal 1. Select "Audio" from the main menu and press "ENTER". 2. Use the “UP/▲ or DOWN/▼” buttons to choose "Line out", then press "ENTER". The selected option will be highlighted in white. -
Page 11: Edid
5.5 EDID This parameter allows to manage EDID settings. Default 1: 4K@60Hz 444-LPCM: 2.0, HDR:HLG Default 2: 4K@60Hz 420-LPCM: 2.0, HDR:None Default 3: 4K@30Hz 444-LPCM: 2.0, HDR:None Default 4: 1080p@60Hz 444-LPCM: 2.0, HDR:None The default EDID is “Default1”: Select “EDID” in main menu and press ”ENTER” button Press “UP/▲... -
Page 12: Preset
5.6 Preset This section enables you to perform the following actions related to presets: • Save: Save the current state of video, audio, EDID, system settings, etc., as a preset. You can save up to 8 presets. • Recall: Recall a previously saved preset to restore the saved state of video, audio, EDID, system settings, etc. -
Page 13: Setup
5.7 Setup This section allows to configure general settings. A. Baud Rate This section allows to adjust the serial baud rate. 1. From the main menu, select "Setup" and press "ENTER". 2. Press “UP/▲ or DOWN/▼” button to choose "Baud". 3. - Page 14 B. DHCP Switch This section allows to enable DHCP for network configuration. • DHCP On: dynamic IP address • DHCP Off: static IP address (by default) To change the DHCP setting: Select “Setup” in main menu and press ”ENTER” button. Press “UP/▲...
- Page 15 D. Factory This section allows to perform a factory reset when necessary. There are two different factory settings: • Common: factory reset for video switch, EDID, audio and setting (IP address can’t be factory rest when under “common”). • All: factory set for video, EDID, audio, setting, preset and device name. If you perform a factory reset, all user settings will be deleted and restored to the factory default settings.
-
Page 16: Information Interface
5.8 Information Interface This section allows to consult IP and system information. • System: company name, device name and version information • device IP address, MAC address and DHCP status. 1. Select “INFO” in main menu and press ”ENTER” button. 2. -
Page 17: Remote Controlling
Data bits 8 Stop bits 1 Parity None Flow control None For a correct communication, both the host PC and VEO-MXH44D need to have the same baud rate amongst the available options. 5.9.2 Command List • All commands start with “#”... - Page 18 Enables or disables HDMI audio on channel [x] PARAMETERS DESCRIPTION #audio_d out[x] hdmi=[y] <Ouput[x] : Audio HDMI> [Data=[y-1] : Input [y]] • [x]: Output channel number, ranging from 1 to 4. If [x]=0, all output • [y]: enable or disable ON = 1 OFF = 0 Enables or disables audio extraction on output...
-
Page 19: Webgui
Leave the default gateway field blank or enter the device's IP address. Save the changes and close the network properties window. 6.2 Login by Browser To access VEO-MXH44D WEB settings it is necessary to enter the base unit IP address in an internet browser. • Default IP address: 192.168.1.168... -
Page 20: Video
6.3 Video This section allows to configure video routing and preset management. • Video Routing To assign an Input to an Output, first click the destination OUT and then click on the required IN from the I/O section below. • Preset management To recall a preset, press the corresponding preset button (e.g., Preset 1) followed by the Recall button. -
Page 21: Audio
6.4 Audio This section allows to configure audio requirements. Click output1-4 HDMI: turn off HDMI output audio. Eg.: How turn off audio of the TV which connected to HDMI output1: Click output1 HDMI, colour will change and TV only with video but no audio. Re-click to turn on audio. -
Page 22: Edid
6.5 EDID This section allows to configure the EDID settings. • EDID Information: To select an EDID setting first click on the desired source on the "Input" section and then choose which configuration will this apply to from the "Output" section. -
Page 23: Network
6.6 Network This section allows to configure network requirements. • Static IP: Click DHCP switch (DHCP Off), you can modify IP address, then click “Apply” button, it will countdown. If device IP address same as client IP, will re-login web interface. If unable to refresh automatically, then need to resubmit form manually. -
Page 24: System
6.7 System This section allows to configure system requirements. System Setting • Reboot: Click to reboot device. • Factory common: Click to reset device for partial function. • Factory all: Click to reset device totally. “Reboot” will not clear user parameter, ”Factory common” will not clear Network and Preset parameter;... -
Page 25: Firmware Upgrade
7. FIRMWARE UPGRADE To update the MCU and web page using the UART_ISP_V1.6.exe software, follow these steps: 1. Connect your PC and the device using the RS-232 cable. 2. Open the UART_ISP_V1.7.exe software on your PC. 3. Click on the "Refresh" button to refresh the serial port list and select the correct serial port number for the device. -
Page 26: Panels & Remote Functions
8. PANELS & REMOTE FUNCTIONS 8.1 Front Panel IR receiver window. PRESET: short press to preset. Output 1-4: UP: short press to up. o short press to choose one LOCK: long press to lock, long press output, press again to cancel. again to unlock；when lock, all button is unworkable except for o long press to choose all output,... -
Page 27: Rear Panel
8.2 Rear Panel Analogue audio out Ethernet port S/PDIF audio out DC12V/2A input RS-232 control HDMI output port IR-Ext HDMI input port... -
Page 28: Remote Control
8.3 Remote Control Power on / Standby M: Turn off the HDMI output audio W: Lock remote control Output 1-4 All outputs select INPUT-Y: o Press ALL button o Press INPUT-Y button (Y means 1 to 4 of the inputs). X: Turn off output channel PTP: Mirror all inputs and outputs (Ex. - Page 29 • Lock remote control: o To lock the remote control, press the "W" button. This will prevent any further input from the remote control. o To unlock the remote control, short press the "W" button again. • Turn off output channel: To turn off a specific output channel, press the corresponding output button followed by the "X"...
-
Page 30: Technical Data
RGB, YUV HDCP HDR10, Dolby Vision, HLG HDMI Distance 10m with Ecler VEO Cables (up to 1080p) 5m with Ecler VEO Cables (up to 4K) Audio Performances Audio Output Connectors 4 x 3 pin Euroblock connector, 4 x Coaxial Digital Out... -
Page 31: Mechanical Diagram
Installation Options Desktop Included Accessories 5 x 3 pin Euroblock connector, 1 x Remote Control, 1 x IR receiver, 1x 12V PSU Dimensions (WxHxD) 217.4 x 35 x 128.7 mm. / 8.56 x 1.38 x 5.07 in. Shipping Dimensions (WxHxD) 310 x 85 x 264 mm / 12.20 x 3.35 x 10.39 in. - Page 32 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain (+34) 932238403 information@ecler.com www.ecler.com...
