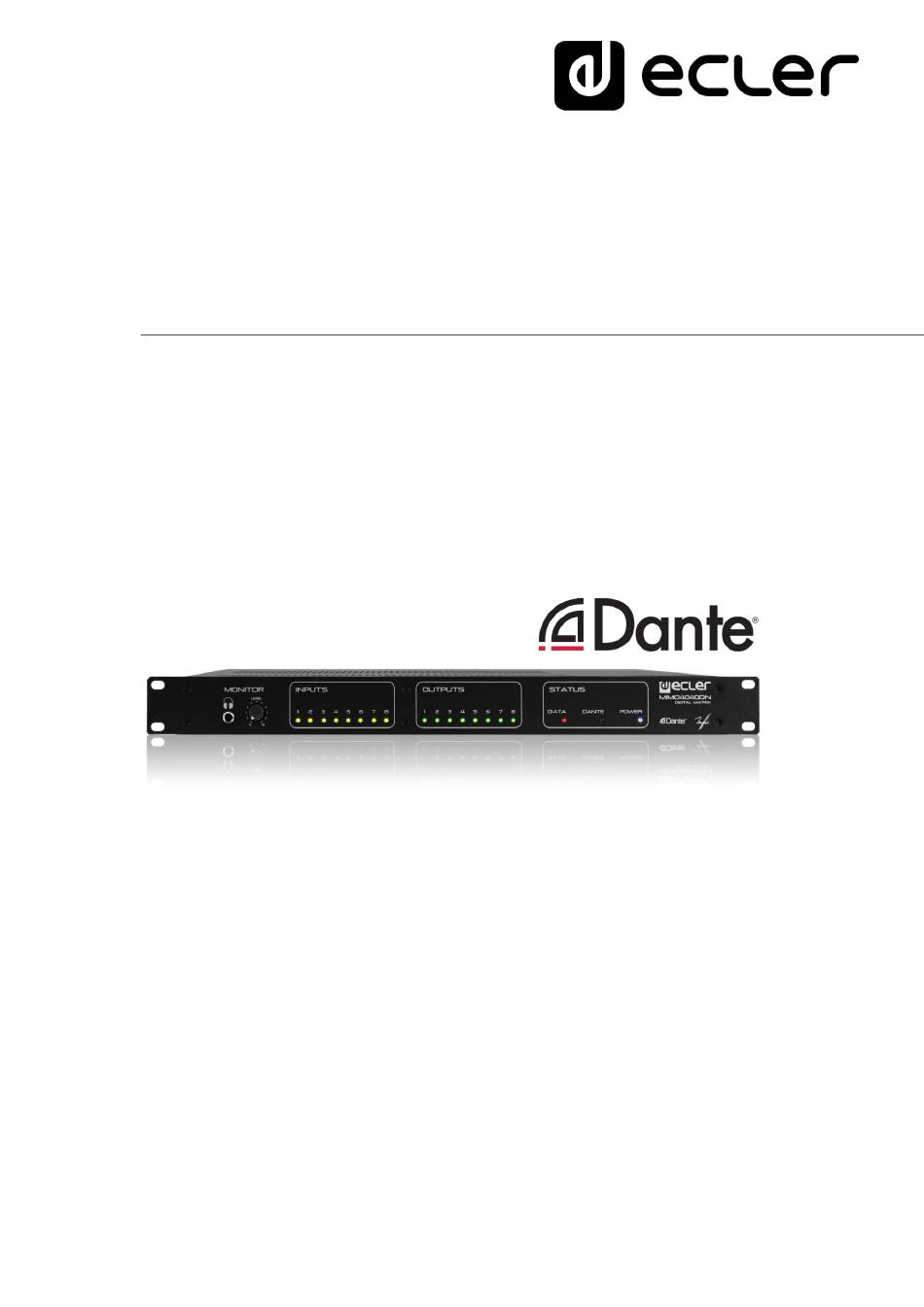

- Page 1 MIMO4040DN DIGITAL MATRIX Digital Matrix with Dante™ Interface USER MANUAL v.20190416...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 4.1. Main features ..........................5 INSTALLATION ........................7 5.1. Location, assembly and ventilation ..................7 5.2. Mains connection and power on.................... 7 5.3. Balanced analog audio inputs ....................8 5.4. -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
3. IMPORTANT NOTE Thank you for choosing our MIMO4040DN digital audio matrix with Dante™ interface. It is VERY IMPORTANT to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment. - Page 6 Priorities (ducking) between input channels. o Virtual and physical paging consoles The programming of the MIMO4040DN is done using the EclerNet Manager application . Refer to the EclerNet Manager Application manual for more information. The EclerNet Manager application is available for download at www.ecler.com.
-
Page 7: Installation
5.2. Mains connection and power on MIMO4040DN operates on alternating voltages from 90 to 264V and 47 to 63 Hz. This device is equipped with an oversized power supply capable of adapting without any type of adjustment to the mains voltage of any country in the world. -
Page 8: Balanced Analog Audio Inputs
For UNbalanced connections, short-circuit the terminal - to earth. 5.4. Balanced analog audio outputs The rear panel of the MIMO4040DN has 8 analog signal outputs (OUT 1 to 8) and 2 additional "MONITOR" monitoring outputs, balanced and with line level. -
Page 9: Digital Audio Inputs And Outputs Over Ip Dante
MIMO4040DN features two ports with RJ45 interface in its rear panel that allow the sending and reception of digital audio Dante™, labeled as primary (PRIMARY) and secondary (SECONDARY). MIMO4040DN can work with these ports in two possible... - Page 10 (and therefore only one IP address exists), with the primary and secondary ports behaving as ports of a network switch integrated within MIMO4040DN, to which devices forming part of the system's Dante™ network, or Ethernet switches forming part of that network's infrastructure, can be directly connected.
-
Page 11: Programming And Control Ethernet Port
Ethernet local network (LAN), being compatible with the following purposes: Management from the EclerNet Manager application, by direct connection (CAT5 cable or higher) of a computer with a MIMO4040DN unit or using an Ethernet network as a link between both. Refer to the EclerNet Manager Application manual for more information. -
Page 12: Remote Control Gpi Ports
5.8. Remote control GPI ports The MIMO4040DN rear panel has 8 GPI inputs for direct voltage control, 0 to 10 VDC. Each of these inputs can be connected to an external physical device (a potentiometer, a contact closure, a variable 0-10V DC voltage, etc.) and associated with a MIMO4040DN function, for example: ... -
Page 13: Remote Control Gpo Ports
5.9. Remote control GPO ports MIMO4040DN has on its rear panel 8 relay outputs NO / NC (normally open / normally closed). Each of these outputs can have its status change associated with a trip by means of a specific function programmed through EclerNet Manager, such as a calendar event or the pressing of a key available on a UCP control panel. -
Page 14: Package Contents
7. PACKAGE CONTENTS MIMO4040DN AC power cables Euroblock aerial connectors for analog inputs and outputs and GPIO ports Quick User Guide and Warranty Card 8. FUNCTION LIST 1. Stereo jack headphone connection 2. Headphone volume control, VOL 3. -
Page 15: Function Diagram
9. FUNCTION DIAGRAM... -
Page 16: Blocks Diagram
10. BLOCKS DIAGRAM... -
Page 17: Technical Features
11. TECHNICAL FEATURES MIMO4040DN Quad core 64bits 1GHz Sampling rate 48 kHz Latency analog IN to analog OUT <4.3 ms. Converters Resolution 24 bit, AKM Dynamic range AD:110dB, DA: 115dB Analogue 8 Input / Output Terminal block (Symmetrical) 2 monitor output... - Page 18 Processing Input level (x40) Range: from Off to 0 dB Mute: Yes Signal Polarity reverse: Yes Metering: VU+clip pre & post fader Output level (x40) Range: from Off to 0 dB Mute: Yes Solo: Yes Signal Polarity reverse: Yes Metering: VU+clip pre & post fader Output gain (x40) Range: from 0 to +6 dB Input delay (x40)
- Page 19 Analogue in/out 8x8 Dante/AES67 network in/out 32x32 Vol: Input, Output, Crosspoint Mute: Set/Clear individual, row, column, all Input /output Mono/stereo selector Meter: Input /output VU and clip Pager (x10) Input: IN1 to IN40 Priorities: 10 (1 max, 10 min) Depth: 0 dB to 80 dB Attack time: from 5 ms.
- Page 20 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in design or manufacture that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ España ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
