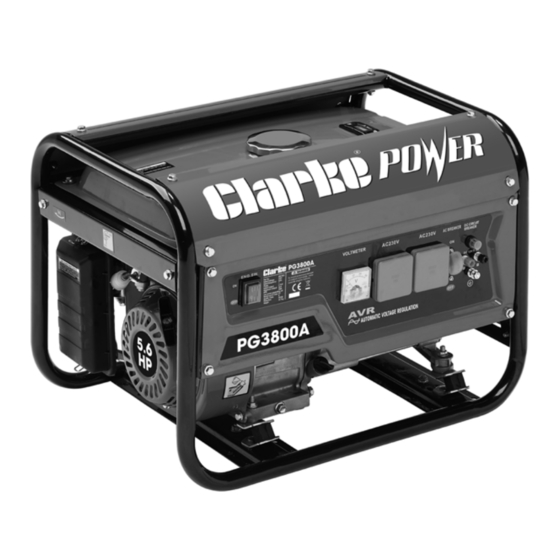

- Page 1 3KVA PETROL GENERATOR MODEL NO: PG3800A PART NO: 8857852 OPERATION & MAINTENANCE INSTRUCTIONS LS0716...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE 3kVA Petrol Generator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED WORK AREA • Always use in a well ventilated area. • Always position the exhaust outlet away from people. • Never use indoors or in a confined space. •... -
Page 4: Prevention Of Electric Shock
PREVENTION OF ELECTRIC SHOCK 1. Never use the generator in wet conditions unless it is well protected/ covered. Under these conditions, adequate ventilation MUST be provided. 2. Never operate the generator with wet hands. 3. Never use water or any other liquids to clean the generator. ADDITIONAL SAFETY RULES FOR GENERATORS 1. -
Page 5: Safety Symbols
SAFETY SYMBOLS Read Instruction Flammable manual before use Caution - The user Hot Surface - Do not should be aware of a touch general hazard Dangerous voltage Poisonous fumes - Do not use the generator in an enclosed space. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 6: Generator Overview
GENERATOR OVERVIEW DESCRIPTION NO DESCRIPTION Fuel Supply Valve Engine Switch Fuel Tank Cap Anti-vibration Feet Fuel Level Gauge Dipstick Frame Control Panel Air Filter Choke Lever Starting Handle Earth Point Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 7: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack your generator and check to ensure the following items are present. Should there be any deficiency or damage caused during transit contact your CLARKE dealer immediately. • The generator • Spark plug box spanner • Tommy bar •... -
Page 8: Earth Point
• Oil capacity (See page 20). • We recommend the use of oil in this generator. SAE15W40 available from your CLARKE dealer. 5. Replace the oil filler cap. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 9: Checking The Fuel Level
CHECKING THE FUEL LEVEL 1. Check the fuel level on the fuel gauge. The fuel gauge will show as red when you have fuel in the tank turning white as the fuel level decreases Empty Full 2. To add fuel, open the fuel filler cap. -
Page 10: Using Your Generator
USING YOUR GENERATOR STARTING THE ENGINE 1. Remove all connections from the AC sockets. 2. Set the fuel valve to the ON position as shown. 3. Make sure that the AC breaker is set to the off (down) position. 4. Move the choke lever to the ‘Choke’... - Page 11 NOTE: When you first start the generator, the overload indicator may light up for a few seconds, this is normal. If the overload indicator is still lit after 5 seconds, stop the engine and contact your CLARKE dealer. 7. Once the engine has warmed up, move the choke lever to the “run”...
- Page 12 CONNECTING ELECTRICAL APPLIANCES The generator can supply both 230V AC and 12V DC AC POWER 1. Start the engine. See page 10. 2. Make sure that the AC Breaker is set to the ON (up) position. 3. Connect the appliance to the generator.
- Page 13 DC POWER 1. Start the generator. See page 10. 2. Make sure the appliance is turned off before connecting it to the generator. 3. Connect the 12V DC appliance (max 8.3A) to the generator. DC POWER (CHARGING CAR BATTERIES) WARNING: FOR YOUR SAFETY PERFORM THE FOLLOWING INSTRUCTIONS IN THE ORDER SHOWN.
-
Page 14: Shutting Down The Generator
SHUTTING DOWN THE GENERATOR To stop the generator in an emergency simply set the engine switch to ‘OFF’. NOTE: Turn off any electric devices. 1. Disconnect any electric devices. 2. Make sure that the AC breaker is set to the off (down) position. 3. -
Page 15: Maintenance
• Oil capacity (See page 20.). • We recommend the use of oil in this generator. available SAE15W40 from your CLARKE dealer. 6. Replace the dipstick. ENVIRONMENTAL PROTECTION One of the most damaging sources of pollution is oil, Do not throw away used engine oil in with your domestic rubbish or pour it down drains and sinks. -
Page 16: Changing The Spark Plug
CHANGING THE SPARK PLUG CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG. 1. Remove the spark plug cap from the spark plug. Use the spark plug spanner supplied to remove the spark plug. 3. Remove any carbon that has accumulated around the Add pic electrode. -
Page 17: Checking The Air Filter
3. Make sure that the air filter is clean and not damaged. • If the air filter is damaged contact CLARKE spare parts department for a replacement. • If the filter is dirty, wash in a solution of warm water and mild detergent and rinse thoroughly. -
Page 18: Cleaning The Fuel Valve Filter / Draining The Fuel Tank
CLEANING THE FUEL VALVE FILTER / DRAINING THE FUEL TANK 1. Set the fuel supply valve to OFF. 2. U nscrew and remove the cup, then remove the valve filter and ‘O’ ring. 3. Wash these parts in a non- inflammable solvent. -
Page 19: Troubleshooting
Clean the air filter, See page 17 difficult to start The fuel filter is blocked Clean the fuel filter, See page 18 If this does not solve your problem, please contact the CLARKE service department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 20: Specifications
SPECIFICATIONS PG3800A Engine Engine Model PT170F1 Fuel Type Petrol 212 cc Displacement (cm Max. power output (hp/rpm) 5.6 @ 3000 rpm Start system Hand recoil Fuel tank capacity (L) Fuel consumption (L/hr.) Maximum run time (h) @75% Load Engine oil type... -
Page 21: Exploded Diagram
EXPLODED DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 22: Parts List
PARTS LIST Description Description Switch Bolt M6x25 Panel Fuel Filler Cap Voltmeter Fuel Filter AC Socket Screw M5x12 AC Breaker Fuel Gauge Screw M3x8 Fuel Valve Earth Bolt Frame DC Socket Cross Beam DC Breaker Anti Vibration Foot (LH) Panel Back Cover Flange Nut M8 Wiring Loom Rubber Feet... -
Page 23: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
