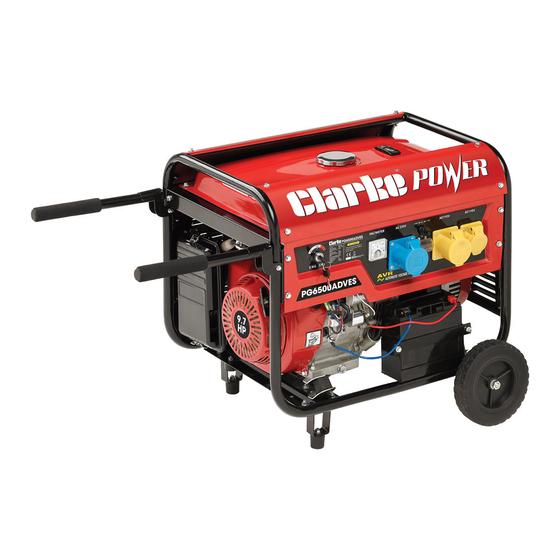

- Page 1 5.5KVA PETROL GENERATOR MODEL NO: PG6500ADVES PART NO: 8857856 OPERATION & MAINTENANCE INSTRUCTIONS LS1216...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE 5.5KVA Petrol Generator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED WORK AREA • Always use in a well ventilated area. • Always position the exhaust outlet away from people. • Never use indoors or in a confined space. •... -
Page 4: Prevention Of Electric Shock
PREVENTION OF ELECTRIC SHOCK 1. Never use the generator in wet conditions unless it is well protected/ covered. Under these conditions, adequate ventilation MUST be provided. 2. Never operate the generator with wet hands. 3. Never use water or any other liquids to clean the generator. ADDITIONAL SAFETY RULES FOR GENERATORS 1. -
Page 5: Safety Symbols
SAFETY SYMBOLS Caution - The user Hot Surface - Do not should be aware of a touch general hazard Dangerous voltage Poisonous fumes - Do not use the generator in an enclosed space. Flammable Read Instruction manual before use Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 6: Generator Overview
GENERATOR OVERVIEW DESCRIPTION NO DESCRIPTION Handles Battery Fuel Supply Valve Wheel Ignition Switch Dipstick Fuel Tank Cap Starting Handle Fuel Level Gauge Air Filter Frame Choke Lever Control Panel Earth Point Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 7: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack your generator and check to ensure the following items are present. Should there be any deficiency or damage caused during transit contact your CLARKE dealer immediately. 1 x 5kW Petrol Generator 2 x Handle c/w fixings 1 x Axle c/w nuts &... -
Page 8: Fitting The Handles
FITTING THE WHEELS/FEET 1. Lay the generator on its front and attach the 2 feet to the frame using 4 x short bolts, 4 x washers, 4 x spring washers and 4 x nuts. 2. Slide both wheels on to the axle. 3. -
Page 9: Connecting The Battery
CONNECTING THE BATTERY • Connect the negative wire to the negative terminal on the battery as shown on the right. • Connect the positive wire to the positive terminal on the battery. • Ensure both terminals are covered by the plastic covers as shown. -
Page 10: Checking The Engine Oil Level
• Oil capacity (See page 21). • We recommend the use of SAE15W40 oil in this generator. available from your CLARKE dealer. 5. Replace the oil filler cap. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Checking The Fuel Level
CHECKING THE FUEL LEVEL RECOMMENDED FUEL Only use standard unleaded petrol. 1. Check the fuel level on the fuel gauge. The fuel gauge will show as red when you have fuel in the tank turning white as the fuel level decreases Empty Full... -
Page 12: Using Your Generator
USING YOUR GENERATOR STARTING THE ENGINE 1. Remove all connections from the AC sockets. 2. Set the fuel valve to the ON position as shown. 4. Move the choke lever to the ‘Choke’ position. 5. Insert the key into the ignition. 6. - Page 13 BACKUP STARTING PROCEDURE If for any reason the engine will not start using the above procedure, you can start your generator manually by carrying out the following. 1. Follow steps 1-4 in the previous section. 2. Set the ignition key to the ON position.
-
Page 14: Connecting Electrical Devices
CONNECTING ELECTRICAL DEVICES The generator can supply both 230V AC and 115V AC. The sockets are laid out in the following order: (from left to right): • 1 x 32amp 230v (Blue), • 1 x 32amp 115v (Large Yellow) • 1 x 16amp 115v (Small Yellow). 1. -
Page 15: Shutting Down The Generator
SHUTTING DOWN THE GENERATOR To stop the generator in an emergency simply set the engine switch to ‘OFF’. NOTE: Turn off any electric devices. 1. Disconnect any electric devices. 2. Make sure that the AC breaker is set to the off (down) position. 3. -
Page 16: Maintenance
• Fill until the oil reaches the threads in the oil fill tube. • Oil capacity (See page 21.). • We recommend the use of SAE15W40 oil in this generator, available from your CLARKE dealer. 7. Replace the oil filler cap/dipstick. ENVIRONMENTAL PROTECTION One of the most damaging sources of pollution is oil, Do not throw away used engine oil in with your domestic rubbish or pour it down drains or sinks. -
Page 17: Changing The Spark Plug
CHANGING THE SPARK PLUG CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG. 1. Remove the Side Panel bolts and remove the side panel 2. Remove the spark plug cap from the spark plug. Use the spark plug spanner supplied to remove the spark plug. -
Page 18: Checking The Air Filter
3. Make sure that the air filter is clean and not damaged. • If the air filter is damaged contact CLARKE spare parts department for a replacement. • If the filter is dirty, wash in a solution of warm water and mild detergent and rinse thoroughly. -
Page 19: Cleaning The Fuel Valve Filter / Draining The Fuel Tank
CLEANING THE FUEL VALVE FILTER / DRAINING THE FUEL TANK 1. Set the fuel supply valve to OFF. 2. U nscrew and remove the cup, then remove the valve filter and ‘O’ ring. 3. Wash these parts in a non- inflammable solvent. -
Page 20: Troubleshooting
The fuel filter is blocked Clean the fuel filter, See page 19 If this does not solve your problem, please contact the CLARKE service department. OPTIONAL ACCESSORIES A wide range of optional accessories are available from your CLARKE dealer including: Parts &... -
Page 21: Specifications
SPECIFICATIONS PG6500ADVES Engine Engine Model PT188F1 Fuel Type Petrol Displacement (cm Max. power output (HP/rpm) 9.7 @3000 rpm Start system Hand Recoil / Electric Start Fuel tank capacity (L) Fuel consumption (L/hr.) Maximum run time (h) @75% Load Engine oil grade... -
Page 22: Exploded Diagram
EXPLODED DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 23: Parts List
PARTS LIST Description Description Switch Fuel Valve Panel Fuel Tank Voltmeter Frame 230V/32A Socket Cross Beam AC Breaker Bolt M6x40 Screw M3x8 Gasket 6 115V/32A Socket Flange Nut M6 115V/16A Socket Handle Earth Bolt Anti Vibration Foot Bolt M4x12 Supporting feet Bolt M6x12 Rubber Feet Panel Back Cover... -
Page 24: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 25 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 26 ADDITIONAL PRODUCTS IN THE CLARKE RANGE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 27 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
