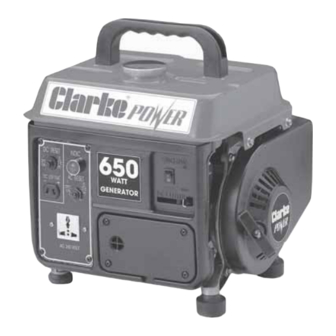

- Page 1 © 0600 Generator Model G700 Part Number 8010010 Operating & Maintenance Instructions...
- Page 2 Parts and Service For Spare Parts and Servicing, please contact your local dealer, or Clarke International on one of the following Numbers: Parts and Service Tel: 0208 988 7400 Parts and Service Fax: 0208 558 3622 or email as follows: Parts: Parts@clarkeinternational.com...
-
Page 3: Table Of Contents
Spare Parts Diagram ......................13 Spare Parts List ........................14 Thank you for purchasing this Clarke Power Generator. Before use please read these instructions. This is for your own safety and that of others around you, and also to ensure the Generator provides you with long and trouble free service. -
Page 4: For Your Own Safety
For Your Own Safety WARNING: Exhaust fumes can be extremely dangerous if inhaled • Always use in a well ventilated area . • Always position the exhaust outlet away from people. • Never use indoors or in a confined space. •... - Page 5 Positioning the Generator for use Always leave a least a 1M gap between the generator and any surrounding building or structures. Always ensure the generator is on a solid, flat surface. Always ensure the surrounding area is free from any material that could burn or be damaged by heat.
-
Page 6: Overview Of Your Generator
Fig (1) Overview DC Reset Switch AC Trip Indicator Engine ON / OFF AC Reset Switch Choke DC Connector Throttle AC Connector Carrying Handle Engine Control Fuel Cap Recoil Starter Fuel Tank Fuel Tap Alternator Spark Plug Control Panel Exhaust Air Inlet Cover Exhaust Outlet - 5 -... -
Page 7: Unpacking Your Generator
50 Parts Petrol to 1 Part oil. The Tank should be filled to just below the fuel filter Use Clarke 2 stroke oil..Part No.5060260 shoulder as shown in fig (3). Note : Always use a funnel to fill the fuel tank so as to avoid accidental spillage of fuel. If fuel is spilled it must be removed from the unit before attempting to start the engine. -
Page 8: Using Your Generator
Using your Generator Starting the Engine IMPORTANT ! Ensure the generator is not connected to any electrical equipment when starting the engine. Turn the Fuel ON as shown in fig (4). Fig (4) Note : The Fuel Tap has three positions : ON, OFF, and RES (reserve). -
Page 9: Connecting To The Generator
Connecting Electrical devices IMPORTANT ! Ensure that the power rating of the connected load does not exceed the rating for the generator (650 Watts [3.2 Amps AC] / 15 Amps at 12VDC) Connecting to 230 Volts AC. Fig (7) Insert the three pin plug into the AC connector ensuring that the power rating of the device is below 650 Watts. -
Page 10: Periodic Maintenance
Maintenance Ref: Fig. 1 Air Inlet Filter Check after 50 Hours Normal use If the air filter has become soiled, clean as stated below. If the filter is damaged or still appears to be soiled after cleaning, replace. Remove the air inlet cover Remove the foam filter and wash thoroughly with soapy water. -
Page 11: Spark Plug
Fuel tap closed 8. Open fuel tap 9. Clean spark plug Tarnished spark plug 10. Replace spark plug Damaged spark plug Faulty magneto or 11. Contact Clarke Service Department carburettor settings 12. Check fuel Improper fuel Erratic performance Overheating 13. Contact Clarke Service... -
Page 12: Electrical Fault Finding
No AC Output Poor connection or 2. Check connection and faulty lead (or) replace lead Broken AC connector 3. Contact Clarke Servicing Faulty Circuit Breaker 4. Contact Clarke Servicing No DC Output Tripped Circuit Breaker 1. Reset DC safety trip Poor connection or 2. -
Page 13: Specifications
Specifications Model No ..............G700 Part No ..............8010010 Dimensions ............... 375(H) x 380(L) x 300(W) MM Gross Weight ............21KG Engine Type ................2 Stroke Single Cylinder Displacement ............64cc Fuel Capacity ............4 Litres Running Time on Full Tank ........4hrs 30min (approx.) Cooling System ............ -
Page 14: Spare Parts Diagram
Spare Parts Diagram (fig 7) - 13 -... -
Page 15: Spare Parts List
Spare Parts List Description Part No. Fuel Tank ....................HT70001 Fuel Valve .................... HT70002 Fuel Hose ..................... HT70003 Exhaust ....................HT70004 Starter Cover ..................HT70005 Engine ....................HT70006 Governor Arm Spring ................. HT70007 Gasket ....................HT70008 Carburettor ..................HT70009 Gasket ....................HT70010 CDI .......................
