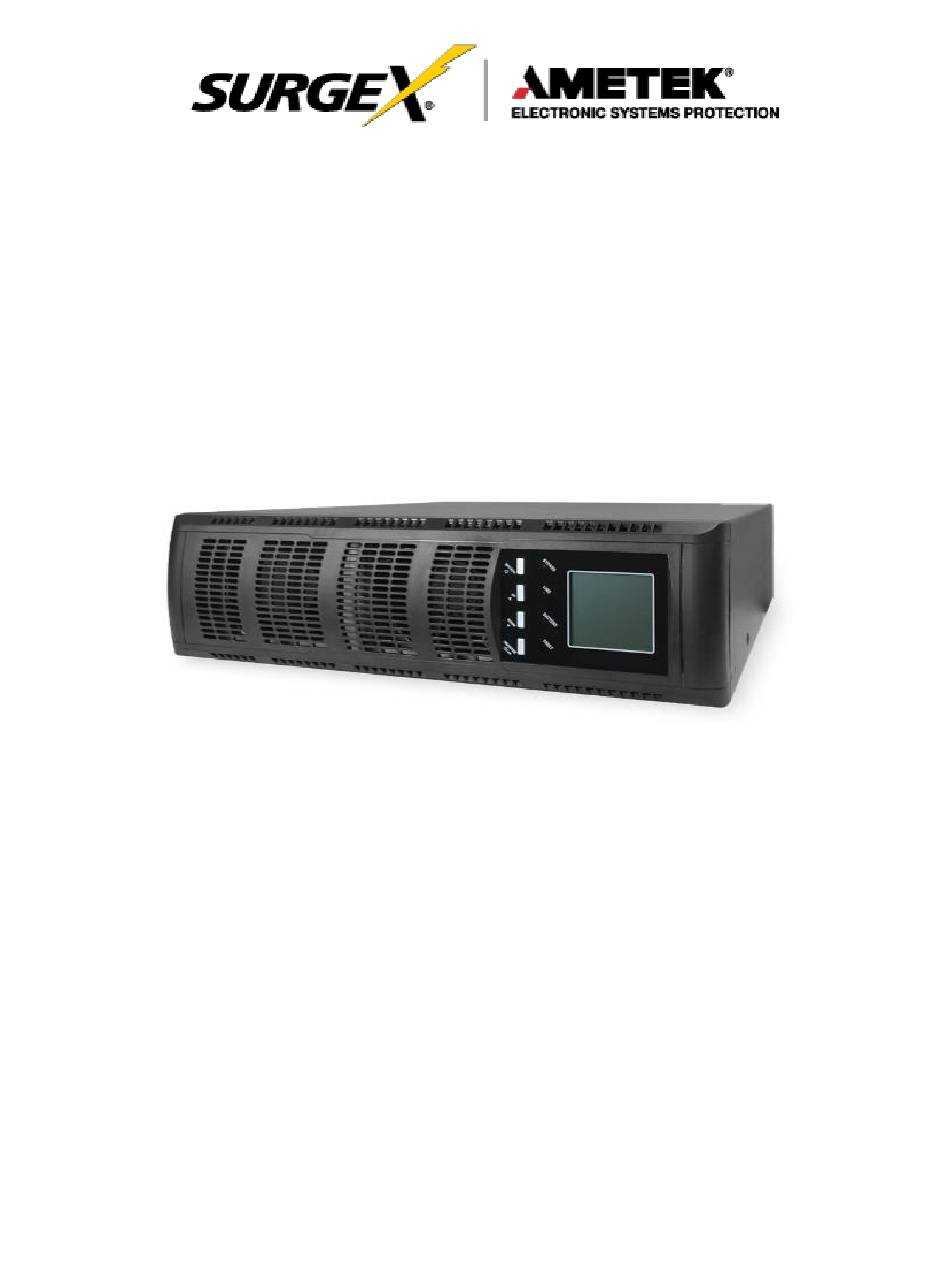

- Page 1 Online Battery Backup UPS-17602-52R – 6000 VA UPS User Manual © 2019 AMETEK Electronic Systems Protection | 1-800-645-9721 | surgex.com | UM-UPS-Global-6kVA-REV-A...
- Page 2 User Manual _________________________________________________________________ © 2 © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 3: Table Of Contents
3-5-1. Turn on the UPS with utility power supply (to Line mode) 3-5-2. Turn on the UPS without utility power supply ( to Battery mode) 3-5-3. Connect devices to the UPS © 2 © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 4 6-2-1. Battery Replacement …………………………………………………………………………………. 6-3. Storage 6-4. Cleaning 7. Troubleshooting 7-1. Warning status 7-2. Fault Mode ……………………………………………………………………………………………… 7-3. Troubleshooting Table ………………………………………………………………………………... 9. Appendix A : Specifications ………………………………………………………………………. © 2 © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 5: Introduction
19-inch racks. The 6kVA must be operated with at least one rack mounted battery extension. These battery ex- tensions may only be connected electrically with the corresponding base UPS unit fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 6: Safety Notices
3.5 mA for ratings of the UPS. Earth connection is essential before connecting supply. Connect your UPS power module’s grounding terminal to a grounding electrode conductor. · Data transmission lines should not be connected or disconnected during a thunderstorm. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 7: Emergency
· Even when discharged a battery has a capacity to supply a high short circuit current, which, in addition to causing damage to the battery itself and to associated cables, may expose the operator to the risk of burns. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 8: Repackaging
Thereafter, it shall be kept and referred to whenever it is necessary to carry out work on the UPS. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 9: Symbols
WARNING: A battery cabinet is very heavy. The unit weight of a battery cabinet is 142 lbs. (64.5kg). To prevent personal injury or damage to the battery cabinet suitable lifting equipment and multiple people should be employed when lifting the battery cabinet. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 10: Handling
Taking into consideration the weight of the UPS/batteries as reported in the mechanical specifications for the battery cabinet on page 48, it is necessary that the chosen cabinet be capable of supporting the weight of the unit/batteries. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 11: Rack/Tower Installation
Align the two stands approximately 35 cm apart as shown in Step 2. Put the UPS module and battery bank in the stands as shown in Step 3. Figure 2 fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 12: Rack Installation
UPS directly above. Included in each Rackmount carton is a rail kit. The Rail Kit consists of the following components (refer to Figure 4): Figure 4 fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 13: Assembly Steps
Step 3. Insert one M6 nut into the right and left front posts of the four-post rack for a 3U installation. Refer to Figure 7 below. Figure 7 fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 14 Step 6: Assembly complete. Figure 10 When the unit is securely in the rack continue with the electrical installation. See “Electrical Preparations for UPS Installation” on page 11. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 15: Electrical Preparations For Ups Installation
Relative humidity (w/0 condensing at 20°C Max. altitude (w/o de-rating) 1000 m a.s.l Cable inlet Bottom at the rear side Air inlet front Air outlet rear fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 16: Cable Sizes And Current
Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 17 17. 16A Output circuit breakers 8. Cooling fan 18. Battery pack output circuit breaker 9. External battery connector 19. Part number and serial number label 10. Input circuit breaker fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 18: Connecting Mains And Load Cables
After connecting the wires and strain relief reattach the cover to the terminal block housing. NOTE: Make sure that the wires are connected tightly to the terminals. Refer to Table 5 on page 12. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 19 Pay attention to the polarity marking on external battery terminal block, and make sure the correct battery polarity is connected. Wrong connection may cause permanent damage of the UPS. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 20: Operations
LCD for troubleshooting. Fault Mode When fatal error occurs in the UPS, it will beep continuously and go to fault mode. It will display fault codes in LCD. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 21: Button Operation
To allow the LCD display to rotate 90° automatically, press these two buttons at the same time. This operation is used to configure the UPS in rack or tower display. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 22: Led Indicators
3) A few seconds later the UPS will enter Line mode and “Line mode” will be displayed on the LCD. NOTE: In line mode, if the utility power is abnormal, the UPS will transfer to Battery mode without interruption. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 23: Turn On The Ups Without Utility Power Supply (To Battery Mode)
3) Make sure that the battery numbers setting on the control board (Please refer to the section on changing battery quantity) is consistent with the actual number of batteries connected. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 24: Battery Mode Operation
2) To fully turn off the output, switch off the external input breaker. A few seconds later the LCD display will turn off and the UPS will completely shut down. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 25: Turn Off The Ups Without Utility Power Supply In Battery Mode
“control menu” and select the instruction “Turn Off”. Please refer to the section on “LCD operation”. 2) If there is no bypass input voltage, the UPS will shut down its internal power supply and the front panel display will turn off. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 26: Lcd Operation
User Manual _________________________________________________________________ fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 27: Main Interface (Home Page)
2) Press “UP” or “DOWN” button to select item; 3) Press “ON/ENTER” button to confirm the selection; 4) Press “OFF / ESC” button to return back to the home page; fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 28 NOTE: The UPS may be turned off by simply pressing the “OFF/ESC” button in the home page. It’s not necessary to enter the control menu to turn off the UPS. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 29 Bypass Mode Turn On parallel cable OK? Parallel: Master Batt Test 0.0V / 0.0Hz Mute OP: 208.0V / 50.0 Hz Para Unlock Batt: 273.0V / 99% Load: fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 30 Cap: 100% Inv: 208.0V Dischg Time: Apparent Power: 00: 00: 00 6000VA Active Power: 5400W Load: 100% Bypass: Charger: Volt: 220.0V Volt: 273.0V Freq: 50.0Hz Status: fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 31 Mode, the LCD will show the message “Item cannot be set in this mode”. Press any button or wait several seconds for the message to disappear. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 32 50 Hz system : Setting range is from 46.0 Hz to 49.0 Hz. 60 Hz system : Setting range is from 56.0 Hz to 59.0 Hz. The default value is 46.0 Hz / 56.0 Hz. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 33 46 ~ 54Hz for a 50Hz system or within 56 ~ 64Hz for a 60Hz system. NOTE : CVCF means Constant Voltage and Constant Frequency and represents converter mode. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 34 2.3 Till Batt Low : Battery test will not stop until the battery voltage is low. 10 Minute Battery : DisChg Protect : Enable 990 Minute Batt Test Type : Short Time : 10 Second fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 35 Disable : Hot standby function is disabled. The UPS is operating in normal mode and cannot restart without a battery. Hot Standby : Disable is the default setting. Status : Disable fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 36 Fault : 14 : Output Short Warning : 01 : Bat Open This page records and displays the faults and warning events as they occurred in time. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 37: Interfaces
SNMP adapter (Manage UPS ) for connecting the device to a network isolated contacts card Refer to the installation guide supplied with the optional interface card. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 38: Emergency Power Off (Epo)
“normally closed” switches in series between the EPO connector pins. Activating (opening) any of the series switches will cause the UPS to shut off its output. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 39: Maintenance
NOTE: To obtain new battery(ies), contact SURGEX Technical Services at 847-596-7000, toll free at 800-369-7179. NOTE: The UPS cannot protect against power outages while the batteries are disconnected. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 40 (applicable to equipment and remote battery supplies not having a grounded supply circuit). fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 41: Storage
4. Clean the outside of the UPS housing by wiping with a dry or a slightly damp cloth. NOTE: Do not allow liquid to get inside the UPS. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... -
Page 42: Troubleshooting
2) Fan is at the end of life. 2) Contact the dealer to replace the 3) Fan detection circuit has fan. failed. 3) Contact the dealer to repair. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 43 UPS, disconnect the system. output to other UPSs and choose “Para Unlock” in control menu to remove the warning. Then, the UPS can start up. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 44 Contact the dealer to repair. the inverter voltage is too low. Fault 14 : Output Short Short circuit occurs on the UPS Remove the short circuit. output. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 45 43 : Over load Duration of overload is outside the Remove excess loads from the UPS specification and the UPS shuts output and restart the UPS. down automatically. fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
-
Page 46: Appendix A : Specifications
User Manual _________________________________________________________________ 9. APPENDIX A : SPECIFICATIONS fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com... - Page 47 User Manual _________________________________________________________________ fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
- Page 48 Runtimes are affected by battery age, ambient temperature, site specific usage patterns and load conditions >16 hrs. >16 hrs. >16 hrs. 1080 1620 2160 2700 3240 3780 4320 4860 5400 fdfefd fd © 2019 AMETEK Electronic Systems Protection | Technical Support: 1-800-645-9721 | surgex.com...
