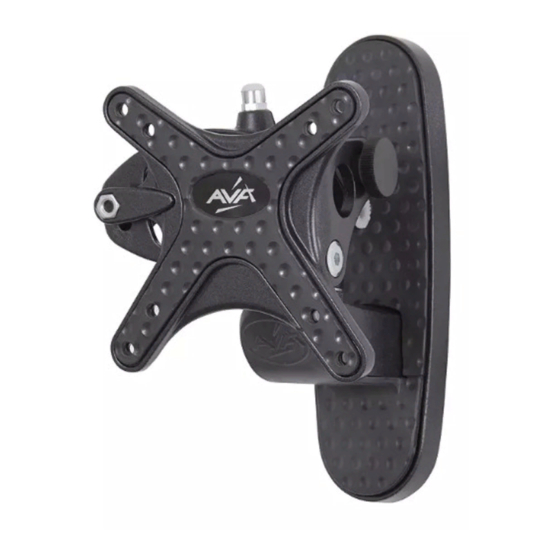

JZL102
Read through
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jzl102 for more information.
CUSTOMER SERVICES HELP LINE NUMBER:
01952 670009
0870 0609777
AVF Group Ltd. Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England
ALL
instructions before commencing installation.
Leaflet No. 463442
33lbs
15kg
rev00
25"
63cm
Advertisement
Related Manuals for AVF Group JZL102
Summary of Contents for AVF Group JZL102
- Page 1 See jl.avfgroup.com/p/jzl102 for more information. CUSTOMER SERVICES HELP LINE NUMBER: 25" 01952 670009 33lbs 63cm 0870 0609777 15kg AVF Group Ltd. Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Assembly Overview
Assembly Overview Fit the Mounting Plate Fit the Wall Bracket Attach the TV... - Page 3 Index Measure the TV fixing holes Width and Height Fitting the TV Mounting Plate Fitting the Wall Bracket Assemble the Bracket Fitting the Top and Bottom Covers Attach the TV TV Levelling and Tilt Retain all packaging in case the bracket needs to be returned. Contents may vary from photography/ Illustrations.
-
Page 4: Tools Recommended
Tools Recommended Stud Finder Ø7mm (17/64") Ø3mm (1/8") Masonry Wood Boxed Parts... -
Page 5: Before You Begin
TV Screws NYLON 2.5mm Before you begin Remove Remove top cover bottom cover Keep top and bottom covers until step 5. - Page 6 Measure the TV fixing holes Width and Height TV Fixing Holes 75 / 100mm 75 / 100mm If X or Y are not equal to 75 or 100mm STOP installation now and contact the customer help line. 100mm 75mm 75mm 100mm...
- Page 7 Fitting the TV Mounting Plate 2.5mm If your TV has an irregular back or if you have any issues fitting to the back of your TV with the screws supplied, please call the customer services helpline 01952 670009 / 0870 0609777...
- Page 10 Assemble the bracket NYLON...
- Page 11 Fitting the Top and Bottom Covers Fit the top cover Fit the bottom cover...
- Page 12 Attach the TV IMPORTANT Ensure safety plunger is down Click! Click! To remove TV i. Remove parts G and H ii. Lift safety plunger and pull TV away (Safety plunger can be locked open by turning anti clockwise after lifting) TV levelling and Tilt Levelling Tilt...
