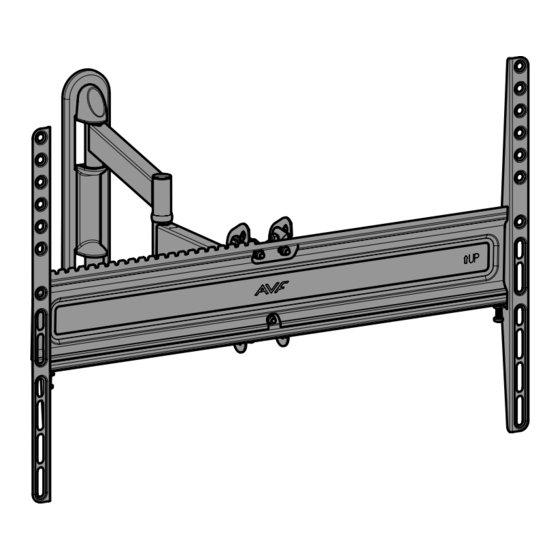

- Page 1 468348 www.avfgroup.com rev03 Please read these instructions thoroughly before installation. 50kg 110lb AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Year Warranty
Retain all packaging in case the bracket needs to be returned. Contents may vary from photography/illustrations. You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. This product is intended for indoor use only. Use of this product outdoors could lead to failure and personal injury. - Page 3 Parts Included Fixings Included:...
- Page 4 Measure your VESA fixings and select TV Screws 75 - 600mm 75 - 400mm 600 x 400mm (MAX).
- Page 5 Fitting the TV Brackets Use the screw that fits the holes on the back of your TV. F1-F4 You only need to use spacers E1 or E2 if the screws are too long or the back of your TV is not flat.
- Page 6 Solid Wall 10mm (25/64") 75mm (3") Remove Dust from Hole Lubricate screw thread with soap DO NOT overtighten screws. Tighten screws by hand only.
- Page 7 Wood Stud Wall 3mm (1/8") 75mm (3") Ensure drill holes are in the centre of the wood studs. DO NOT overtighten screws. Tighten screws by hand only.
- Page 8 Fitting the Wall Bracket Covers Hanging the TV...
- Page 9 Tilt Adjustment Adjust screws to achieve perfect tilt resistance if required. DO NOT overtighten.
- Page 10 TV Levelling Remove the TV, loosen the three nuts and adjust the backplate as required. Re-tighten the three nuts and re-hang your TV.
