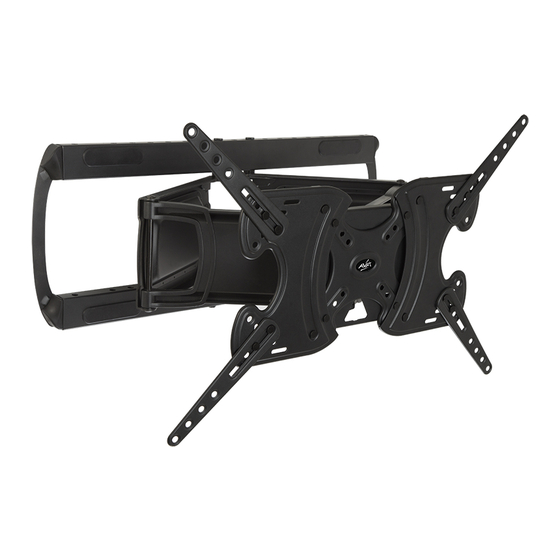

JNL655
Leaflet No. 465396
rev00
Read through
ALL
instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jnl655 for more information.
80"
CUSTOMER SERVICES HELP LINE NUMBER:
132lbs
01952 670009
203cm
60kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Related Manuals for AVF Group JNL655
Summary of Contents for AVF Group JNL655
- Page 1 If you have any questions about this product or issues with installation STOP contact the customer services helpline before returning this product to the store. See jl.avfgroup.com/p/jnl655 for more information. 80" CUSTOMER SERVICES HELP LINE NUMBER: 132lbs 01952 670009 203cm 60kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Assembly Overview
Do Not remove Do Not remove until step 6 until step 6 Ne pas retirer Ne pas retirer avant l'étape 6 avant l'étape 6 Assembly Overview 2 Person Installation Recommended Fit the TV Mounting Plate Fit the Wall Bracket Connect the TV... - Page 3 Index Measure the TV fixing holes Width and Height Preparing the Front Adaptor Plate Preparing the TV Mounting Plate Fitting the TV Mounting Plate Fitting the Wall Bracket Fitting the Wall Bracket Covers Connecting the TV Cable Management Retain all packaging in case the bracket needs to be returned. Contents may vary from photography/ Illustrations.
-
Page 4: Tools Recommended
Tools Recommended Stud Finder Ø12mm Ø3mm Masonry Wood Boxed Parts... - Page 5 TV Screws, Reducers and Spacers...
- Page 6 Measure the TV fixing holes Width and Height 75 - 600mm If width X is greater than 600mm or height Y greater than 400mm STOP installation now and TV Fixing Holes contact the customer help line 75 - 400mm Also fits TV fixing holes X 630mm Y 310mm X 650mm...
- Page 7 Preparing the TV Mounting Plate Use the option that fits your TV. Do not fully tighten OPTION 1 OPTION 2 OPTION 3 X 75mm Y 75mm X 300mm Y 100mm X 600mm Y 100mm X 100mm Y 100mm X 300mm Y 200mm X 600mm Y 200mm...
- Page 8 OPTION 2 SLOTS HOLES When attaching adaptors C you must always use HOLES x4 and either of the SLOTS. HOLES SLOTS Example shown is 400mm x 400mm fixings.
- Page 9 HOLES SLOTS X 75mm - 400mm 300mm 75mm - 400mm Adaptors C can be fixed in different positions in the slots on Plate B to match your TV fixing holes. 300mm 300mm 400mm 400mm...
- Page 10 HOLES SLOTS X 400mm 400mm OPTION 3...
- Page 11 SLOTS HOLES When attaching adaptors C you must always use HOLES x4 and either of the SLOTS. HOLES SLOTS Example shown is 600mm x 400mm fixings.
- Page 12 HOLES SLOTS 400 - 600mm Adaptors C can be fixed in different positions in the slots on Plate B to match your TV fixing holes. 75mm - 400mm 600mm 600mm 600mm...
- Page 13 HOLES 600mm SLOTS 630mm 650mm 660mm...
- Page 14 Fitting the TV Mounting Plate Before you fully tighten the TV mounting plate please check that the mounting plate holes line up with the fixing holes on the back of your TV. Holes do not line up and small Holes line up and no adjustment adjustment is required before is required before you fully tighten you fully tighten...
- Page 15 Screw diameter dependant If required Fixings shown are valid for options 1 - 3 and / or and / or and / or and / or Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.
-
Page 18: Connecting The Tv
Fitting the Wall Bracket Covers Connecting the TV Attaching and Locking... -
Page 19: Cable Management
Cable Management Check all fittings are tight Ensure cables don’t restrict arm movement... - Page 20 Optional Lateral Shift Optional Lock tilt WOOD STUD ONLY Remove Optional TV Levelling Replace...
