469188
jl.avfgroup.com
rev00
60kg
132lbs
Read through ALL instructions before commencing installation.
STOP
If you have any questions about this product or issues with installation, contact
the customer services helpline before returning this product to the store.

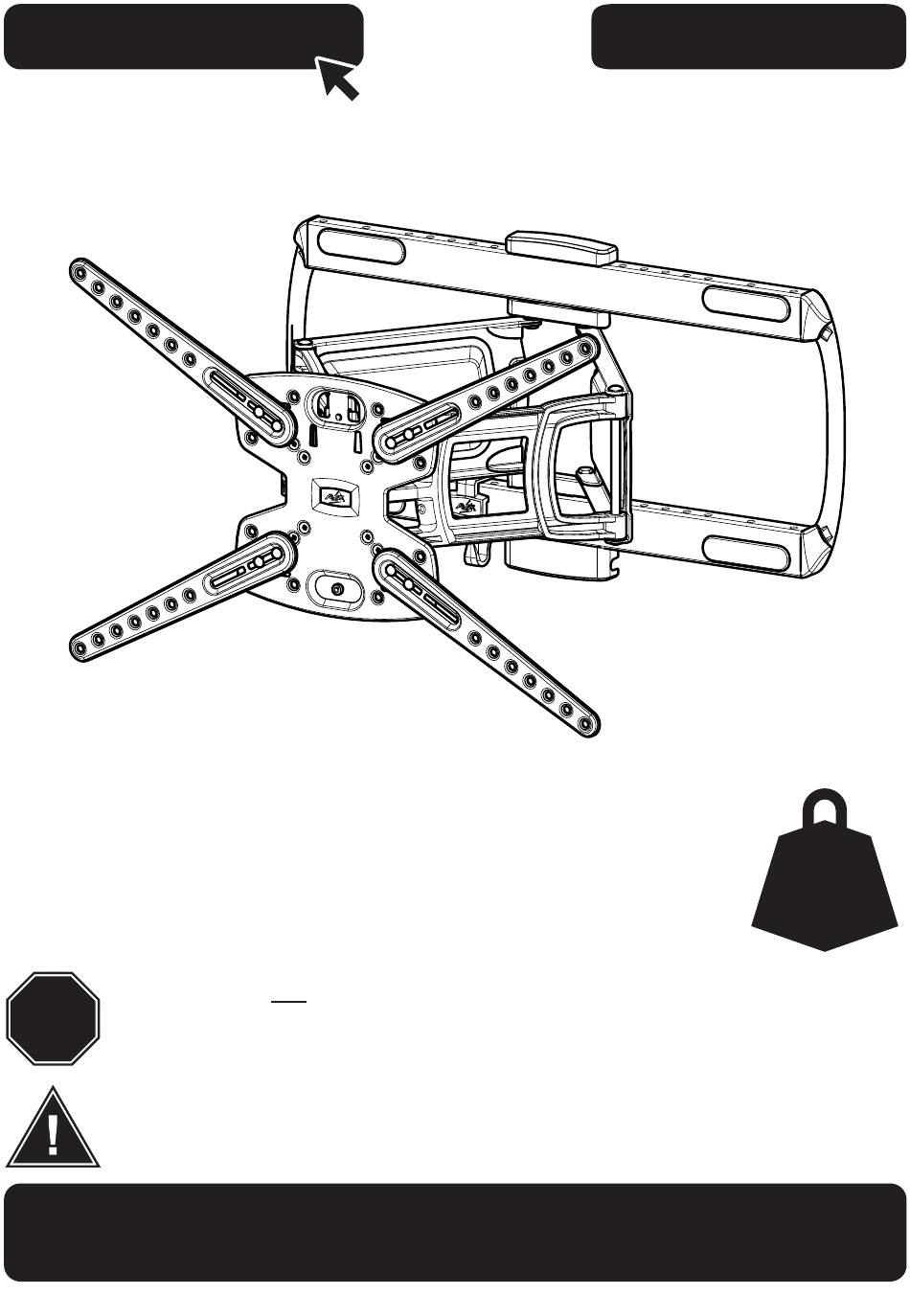

This TV Wall Mount is intended for use with televisions weighing Maximum
60kg (132lbs)
. Use with products heavier than maximum weights may
result in instability causing possible injury.
0333 320 0463 (UK)
CUSTOMER SERVICES HELPLINE NUMBER:
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF Group 469188
Summary of Contents for AVF Group 469188
- Page 1 This TV Wall Mount is intended for use with televisions weighing Maximum 60kg (132lbs) . Use with products heavier than maximum weights may result in instability causing possible injury. 0333 320 0463 (UK) CUSTOMER SERVICES HELPLINE NUMBER: AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Assembly Overview
Assembly Overview Determine your TV position Fit the TV Mounting Plate JZNL655 469189 Use Height Calculator result to position these drill holes When mounting to a solid wall, attach the wall plate using all six holes marked with Connect the TV Fit the Wall Plate Suitable Wall Types Wood Stud... - Page 3 Index Measure the TV fixing holes Width and Height Preparing the TV Mounting Plate Fitting the TV Mounting Plate Marking Wall for Drill Points Fitting the Wall Plate Lateral Shift (Optional) Fitting the Wall Plate Covers Connecting the TV Cable Management Lock Tilt (optional) TV Levelling Retain all packaging in case the product needs to be returned.
-
Page 4: Tools Recommended
Tools Recommended Stud Finder 10mm 13mm Ø12mm (15/32”) Ø5mm (13/64”) Masonry Wood Boxed Parts... - Page 5 TV Screws, Reducers and Spacers JZNL655 469189 Use Height Calculator result to position these drill holes When mounting to a solid wall, attach the wall plate using all six holes marked with...
- Page 6 Measure the TV fixing holes Width and Height X 75 - 600mm TV Fixing Holes Y 75 - 400mm If width X is greater than 600mm or height Y greater than 400mm STOP installation now and contact the customer helpline You are provided with diameters of TV fixing screws , M4, M5, M6 and M8.
- Page 7 Preparing the TV Mounting Plate Before you can attach the TV mounting plate to your TV you need to remove the plate from your wall mount. Level Lock Screw and Washer TV Mounting Plate Remove the Level Lock Screw and Washer and safely keep for step 8. Remove the TV Mounting Plate.
- Page 8 Use the option that fits your TV OPTION 1 OPTION 2 X 300mm x Y 100mm X 75mm x Y 75mm 400mm 400mm X 300mm x Y 200mm X 100mm x Y 100mm X 600mm x Y 100mm X 300mm x Y 300mm X 600mm x Y 200mm X 100mm x Y 200mm X 400mm x Y 100mm...
- Page 9 Slots OPTION 2 Holes When attaching adaptors B you must always use HOLES x4 and either of the SLOTS. Holes Slots Example shown is 600 x 400 fixings.
- Page 10 Adaptors B can be fixed in different positions in Holes the slots on the plate to match your TV fixing holes. Slots X 75mm - 600mm 75mm - 600mm Below are some common examples of how the adaptors can be positioned to match the fixing holes on your TV.
- Page 11 Fitting the TV Mounting Plate No Spacers Spacers For TVs with flat / unobstructed back. For TVs with irregular / obstructed back. WARNING If your TV has an irregular/obstructed back or if you have any issues fitting to the back of your TV with the supplied screws, please call the customer services helpline.
- Page 12 Before you fully tighten the TV mounting plate check that the mounting plate holes line up with the fixing holes on the back of your TV. Holes do not line up and small Holes line up and no adjustment is adjustment is required before you required before you fully tighten fully tighten...
- Page 13 Marking Wall for Drill Points For this step you will need your Wall Marking Template WT. JZNL655 469189 Use Height Calculator result to position these drill holes When mounting to a solid wall, attach the wall plate using all six holes marked with To determine the exact position for your drill points use the Height Calculator app.
- Page 16 Lateral Shift (Optional) The position you have chosen for your TV might not be central between the wood studs, or you may have to avoid services in the wall. In this case you can laterally shift the arms of the mount so the TV is exactly where you want it.
- Page 17 Lateral Shift Procedure Remove Tilt forward and remove. Choose desired position. Align using locating pin and tilt back into place. Replace DO NOT overtighten...
- Page 18 Fitting the Wall Plate Covers Loosen screws before fitting C3. Re-tighten when C3 is in position. Connecting the TV Attaching and Locking Reuse screw and washers saved in step 2...
-
Page 19: Cable Management
Cable Management Check all fittings are tight Ensure cables don’t restrict arm movement... - Page 20 Lock Tilt (optional) TV Levelling Loosen the Level Lock Screw, adjust your TV until it is level, then re-tighten the screw.
