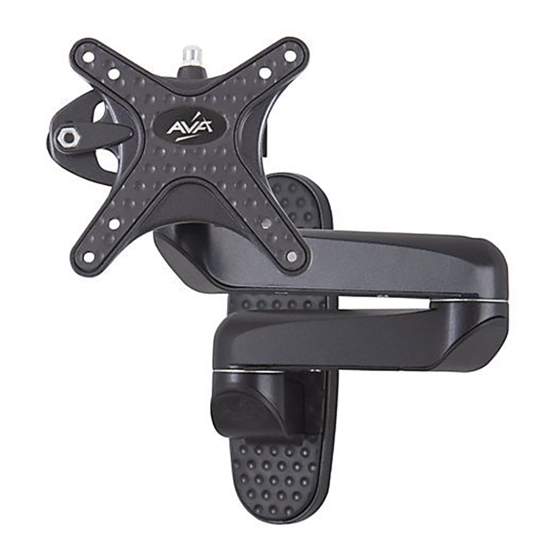

JZL104
Leaflet No. 463444
rev01
Read through
ALL
instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jzl104 for more information.
25"
CUSTOMER SERVICES HELP LINE NUMBER:
33lbs
01952 670009
63cm
15kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVF Group JZL104
Summary of Contents for AVF Group JZL104
- Page 1 If you have any questions about this product or issues with installation STOP contact the customer services helpline before returning this product to the store. See jl.avfgroup.com/p/jzl104 for more information. 25" CUSTOMER SERVICES HELP LINE NUMBER: 33lbs 01952 670009 63cm 15kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Assembly Overview
Assembly Overview Fit the Mounting Plate Fit the Wall Bracket Attach the TV... - Page 3 Index Measure the TV fixing holes Width and Height Fitting the TV Mounting Plate Fitting the Wall Bracket Assemble the Bracket Fitting the Top and Bottom Covers Attach the TV Fitting the Arm Covers and Cable Management TV Levelling and Tilt Retain all packaging in case the bracket needs to be returned.
-
Page 4: Tools Recommended
Tools Recommended Stud Finder Ø7mm (17/64") Ø3mm (1/8") Masonry Wood Boxed Parts... -
Page 5: Before You Begin
TV Screws NYLON 2.5mm Before you begin Remove Remove top cover bottom cover Keep top and bottom covers until step 5. -
Page 6: Measure The Tv Fixing Holes Width And Height
Measure the TV fixing holes Width and Height TV Fixing Holes 75 / 100mm 75 / 100mm If X or Y are not equal to 75 or 100mm STOP installation now and contact the customer help line. 100mm 75mm 75mm 100mm... -
Page 7: Fitting The Tv Mounting Plate
Fitting the TV Mounting Plate 2.5mm If your TV has an irregular back or if you have any issues fitting to the back of your TV with the screws supplied, please call the customer services helpline 01952 670009 / 0870 0609777... -
Page 10: Assemble The Bracket
Assemble the bracket Before you assemble the bracket, please remove the 2 arm covers and screws from arm and keep until step 7. NYLON NYLON Use your finger and thumb to hold nyloc nut (L) steady while you tighten screw ( ) -
Page 11: Fitting The Top And Bottom Covers
Fitting the Top and Bottom Covers Fit the top cover Fit the bottom cover Attach the TV IMPORTANT Ensure safety plunger is down Click! Click! To remove TV i. Remove parts H and I ii. Lift safety plunger and pull TV away (Safety plunger can be locked open by turning anti clockwise after lifting) -
Page 12: Fitting The Arm Covers And Cable Management
Fitting the Arm Covers and Cable Management Cable management TV levelling and Tilt Levelling Tilt...
