Baumatic BC30ITB User Manual

30cm induction cooktop
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

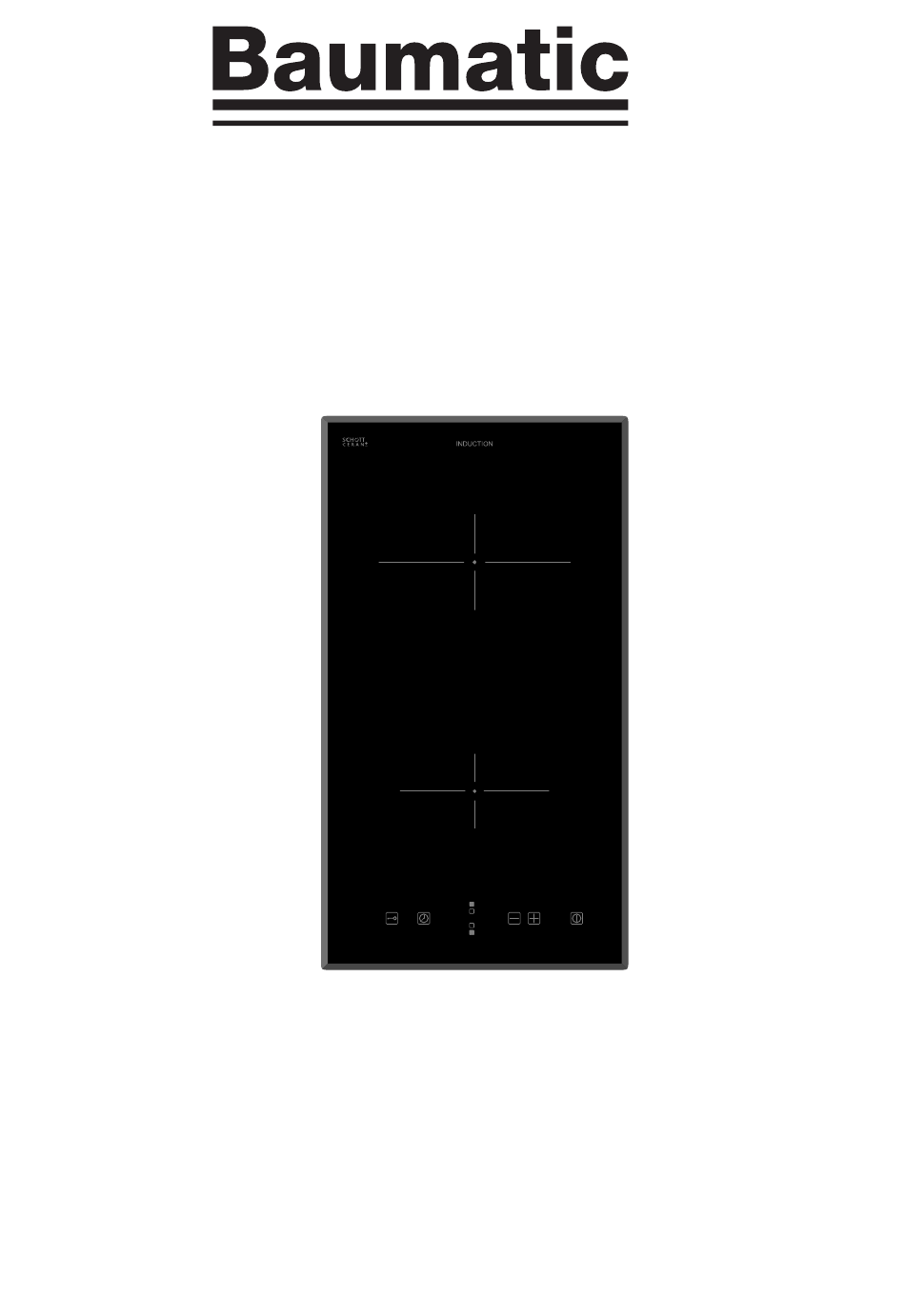

USER MANUAL FOR YOUR BAUMATIC
30cm Induction Cooktop
BC30ITB
NOTE: This User Instruction Manual contains important information, including
safety & installation points, which will enable you to get the most out of your
appliance. Please keep it in a safe place so that it is easily available for future
reference for you or any person not familiar with the operation of the appliance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC30ITB and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BC30ITB

Summary of Contents for Baumatic BC30ITB

  • Page 1 USER MANUAL FOR YOUR BAUMATIC 30cm Induction Cooktop BC30ITB NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future...

  • Page 2: Table Of Contents

    Contents 1. Foreword ..................4 1.1 Safety Warnings ................. 4 1.2 Installation ................4 1.2.1 Electrical Shock Hazard ..........4 1.2.2 Cut Hazard ..............4 1.2.3 Important safety instructions .......... 4 1.3 Operation and maintenance ............5 1.3.1 Electrical Shock Hazard ..........5 1.3.2 Health Hazard ..............
  • Page 3 Contents … continued 5. Heat Settings ................15 6. Care and Cleaning ................. 16 7. Troubleshooting ................17 8. Failure Display and Inspection ............18 9. Installation ................... 20 9.1 Selection of installation equipment ..........20 9.2 Before installing the hob, ensure sure that ........21 9.3 After installing the hob, ensure that..........

  • Page 4: Foreword

    1. Foreword Installation and repairs to this appliance should only be carried out by a qualified technician in accordance with current regulations. 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard ...

  • Page 5: Operation And Maintenance

     In order to avoid a hazard, this appliance must be installed according to these instructions for installation.  This appliance is to be properly installed and earthed only by a suitably qualified person.  This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

  • Page 6: Cut Hazard

     Keep children away.  Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.  Failure to follow this advice could result in burns and scalds. 1.3.4 Cut Hazard ...
  • Page 7 should be done by a qualified technician.  Do not use a steam cleaner to clean your cooktop.  Do not place or drop heavy objects on your cooktop.  Do not stand on your cooktop.  Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.

  • Page 8: Product Introduction

    Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. 2. Product Introduction Packing List USER MANUAL FOR YOUR BAUMATIC 30cm Induction Cooktop BC30ITB NOTE: This User Instruction Manual contains important information, including safety &...

  • Page 9: Working Theory

    • Do not burn off more than one zone at once. • You must place a saucepan filled half full with cold water on each zone as you burn it off. 2.5 Technical Specification Cooking Hob BC30ITB Cooking Zones 2 Zones Supply Voltage...

  • Page 10: Choosing The Right Cookware

    3.2 Choosing the Right Cookware Only use cookware with a base suitable for induction cooking. • Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan.

  • Page 11: How To Use

    3.3 How to Use 3.3.1 Start Cooking Touch the ON/OFF control for three seconds. After power on, the buzzer beeps once, all displays show “–” or “– –”, indicating that the induction hob has entered the state of standby mode. Place a suitable pan on the cooking zone that you wish to use.

  • Page 12: Locking The Controls

    Turn the cooking zone off by scrolling down to “0” or touching “-” and “+” control together. Make sure the display shows “0”. Turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces H will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature.
  • Page 13 Make sure the cooktop is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zone. Touch the controls of the timer. The minder indicator will start flashing and “10” will show in the timer display. Set the time by touching the “-”...

  • Page 14: Default Working Times

    Touching the “-” and “+” together, the timer is cancelled, and the “00” will show in the minute display. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

  • Page 15: Searing Steak

    lowest setting to ensure the food is cooked properly in the time recommended. 4.1.2 Searing Steak To cook juicy flavorsome steaks: 1. Stand the meat at room temperature for about 20 minutes before cooking. 2. Heat up a heavy-based frying pan. 3.

  • Page 16: Care And Cleaning

    • stir-frying • searing • bringing soup to the boil • boiling water 6. Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the cooktop • When the power to the cooktop is glass (fingerprints, off.

  • Page 17: Troubleshooting

    7. Troubleshooting Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area.

  • Page 18: Failure Display And Inspection

    The induction hob or a Technical fault. Please note down the error cooking zone has turned letters and numbers, switch itself off the power to the induction hob unexpectedly, a tone off at the wall, and contact a sounds and an error qualified technician.
  • Page 19 2) Specific failures and the suggested solution Failure Problem Solution A Solution B The LED does not No power supplied. Check to see if plug is come on when unit is secured tightly in outlet plugged in. and that outlet is working.

  • Page 20: Installation

    9. Installation 9.1 Selection of Installation Equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate.

  • Page 21: Before Installing The Hob, Ensure Sure That

    9.2 Before Installing the Hob, Ensure that: • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant material. • If the hob is installed above an oven, the oven has a built-in cooling fan. •...

  • Page 22: Cautions

    9.6 Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3.

  • Page 23: Disposal

    10. Disposal This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
  • Page 25 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.baumatic.co.nz...
