USER MANUAL FOR YOUR BAUMATIC

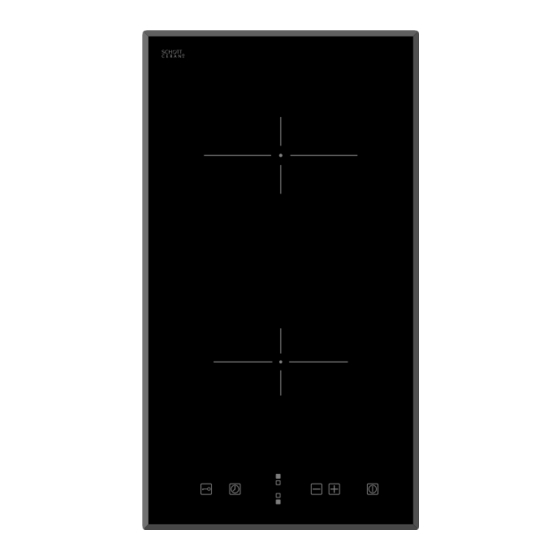

30cm Ceramic Cooktop
BC30CTB
NOTE: This User Instruction Manual contains important information, including
safety & installation points, which will enable you to get the most out of your
appliance. Please keep it in a safe place so that it is easily available for future
reference for you or any person not familiar with the operation of the appliance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC30CTB and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BC30CTB

Summary of Contents for Baumatic BC30CTB

  • Page 1 USER MANUAL FOR YOUR BAUMATIC 30cm Ceramic Cooktop BC30CTB NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future...

  • Page 3: Table Of Contents

    Contents 1. Foreword ..................4 1.1 Safety Warnings ................. 4 1.2 Installation ................4 1.2.1 Electrical Shock Hazard ..........4 1.2.2 Cut Hazard ..............4 1.2.3 Important safety instructions .......... 4 1.3 Operation and maintenance ............5 1.3.1 Electrical Shock Hazard ..........5 1.3.2 Health Hazard ..............
  • Page 4 Contents … continued 5. Heat Settings ................15 6. Care and Cleaning ................. 16 7. Troubleshooting ................17 8. Installation ................... 17 8.1 Selection of installation equipment ..........17 8.2 Before locating the fixing brackets ..........19 8.3 Cautions ................... 19 8.4 Connecting the hob to the mains power supply ......

  • Page 5: Foreword

    1. Foreword Installation and repairs to this appliance should only be carried out by a qualified technician in accordance with current regulations. 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard ...

  • Page 6: Operation And Maintenance

    according to these instructions for installation.  This appliance is to be properly installed and earthed only by a suitably qualified person.  This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. ...

  • Page 7: Cut Hazard

     Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.  Failure to follow this advice could result in burns and scalds. 1.3.4 Cut Hazard ...
  • Page 8  Do not use a steam cleaner to clean your cooktop.  Do not place or drop heavy objects on your cooktop.  Do not stand on your cooktop.  Do not use pans with jagged edges or drag pans across the Ceramic glass surface as this can scratch the glass.

  • Page 9: Product Introduction

    Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. 2. Product Introduction Packing List USER MANUAL FOR YOUR BAUMATIC 30cm Ceramic Cooktop BC30CTB NOTE: This User Instruction Manual contains important information, including safety &...

  • Page 10: Product Information

    • Do not burn off more than one zone at once. • You must place a saucepan filled half full with cold water on each zone as you burn it off. 2.6 Technical Specification Cooking Hob BC30CTB Cooking Zones 2 Zones Supply Voltage...

  • Page 11: Choosing The Right Cookware

    3.2 Choosing the Right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob –...

  • Page 12: Finish Cooking

    Touch the heating zone selection control. Select a heat setting by touching the “-” or “+” control. • If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.

  • Page 13: Locking The Controls

    3.3.3 Locking the Controls  You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).  When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the lock control The timer indicator will show “...
  • Page 14 Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the setting time finished. Hint: a) Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute. b) Touch and hold the “-“or“+” control of the timer to decrease or increase by 10 minutes. c) If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

  • Page 15: Over-Temperature Protection

    Note: a) The red dot next to the power level indicator will illuminate indicating that zone is selected. b) If you want to change the time after the timer is set, you have to start from step 1. c) The method for setting two zones is the same as mentioned above. 3.3.5 Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the ceramic hob.

  • Page 16: Searing Steak

    4.1.2 Searing Steak To cook juicy flavorsome steaks: 1. Stand the meat at room temperature for about 20 minutes before cooking. 2. Heat up a heavy-based frying pan. 3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.

  • Page 17: Care And Cleaning

    6. Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the cooktop • When the power to the cooktop is glass (fingerprints, off. switched off, there will be no ‘hot marks, stains left by 2. Apply a cooktop cleaner while surface’...

  • Page 18: Troubleshooting

    7. Troubleshooting Problem Possible causes What to do The cooktop cannot No power. Make sure the ceramic hob is Be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician.
  • Page 19 50mm mini 50mm mini 50mm mini 50mm mini ＋4 ＋4 2. The ceramic cooker hob can be used on the table top of cabinet. The ceramic hob should be placed horizontally. As shown below: 50mm mini 50mm mini Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked.

  • Page 20: Before Locating The Fixing Brackets

    A(mm) B(mm) C(mm) 50 mini 30 mini Air intake Air exit 10 mm 8.2 Before Locating the Fixing Brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screwing the four brackets on the bottom of the hob (see picture) after installation.

  • Page 21: Connecting The Hob To The Mains Power Supply

    8.4 Connecting the Hob to the Mains Power Supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
  • Page 24 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.baumatic.co.nz...
