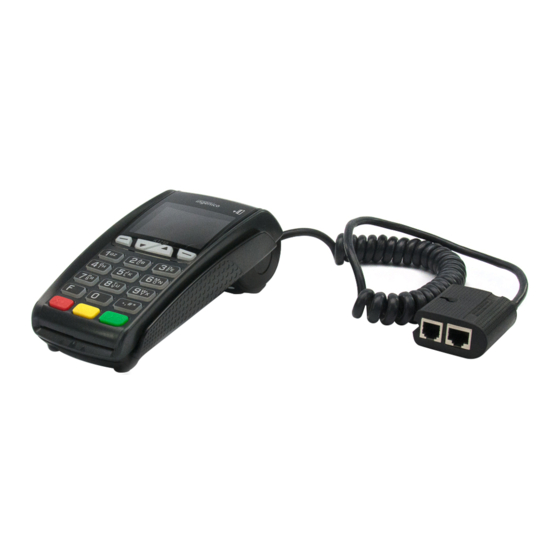

Ingenico iCT2 Series Quick Start Manual

Quick Start Guide
iCT2xx

GETTING STARTED

Set up your base unit in a convenient location. Close to a
power source and telephone socket and/or Ethernet socket
Plug the power supply unit into an electrical socket and
plug this into the power socket on the 'Magic Cable'
connector unit. Plug the telephone lead into the phone
socket and the IN socket on the 'Magic Cable' connector
unit.
If using an Ethernet connection, connect the Ethernet cable to the
ETH socket on the magic cable.
Once the mains power is connected your terminal will be powered on.
After a short initialisation process the main idle screen will be
displayed, the terminal is now ready to use.

SUPERVISOR PASSWORD

The default Supervisor Password is 01483. Please note: The
terminal will require you to change this to a new password of your
choosing before you can process any transactions.

FUNCTION KEYS

F1-F4 Keys: The function keys enable you to choose options on
screen and correspond to the labels displayed on the screen.
Menu Key: To enter the application menus press the Menu key from
the idle (READY) screen. Pressing the key again moves to the next
menu (if available).
Correction Keys: When entering numbers or letters, the yellow clear
key deletes one character at a time, while the red
cancel key deletes the entire line (this key also cancels transactions).
Confirmation Key: The green enter key is used to confirm anything
that has been typed into the terminal.
Paper Feed Key: To test the feeding of the paper through the printer
press and hold the clear key.

THE CHIP CARD READER

Customer cards must be inserted as shown, with the chip facing
upwards. Push the card fully into the slot below the keypad and follow
the instructions on screen.
If you see a BAD READ message, check the card orientation and try
again. After three bad reads the terminal will prompt you to swipe the
card.
DO NOT remove the card until instructed to do so by the terminal.
