Summary of Contents for Sunjoy L-GG001PST-H

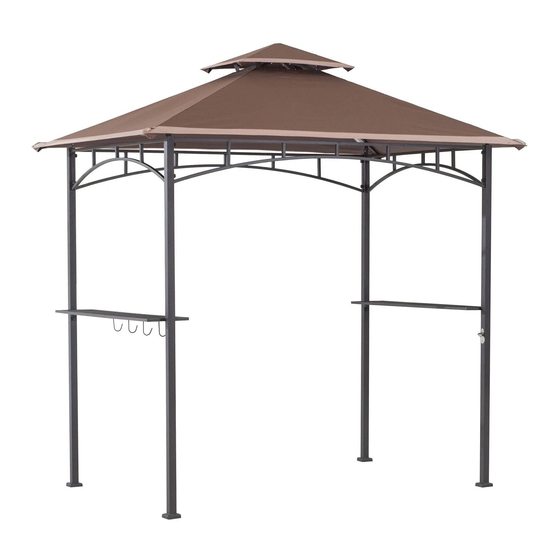

- Page 1 ASSEMBLY INSTRUCTIONS Model: L-GG001PST-H SKU: 2721523 Grill Gazebo W/LED Made In China Production Number：20193840...
- Page 2 Congratulations on your purchase of our SUNJOY LED lighted grill gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. IMPORTANT: 1. When installing and assembling your gazebo, it is recommended that two or more adults are involved.
- Page 3 Parts List Description CS Part # Label Quantity Images Post (1) P11119C01106 Post (2) P11120C01106 Post (3) P11121C01106 Big beam P10399B01106 Big connector P10185B01106 Small beam P10238A01106 Long screen P11094B01106 Short screen P11095B01106 Panel 1 P12350A01106 Panel 2 P12351A01106 Hook rack P13706A01106 Bolt 1 P90804A07106...
- Page 4 Fig.1: Attach the long screen (E) and the short screen (F) to post (A1,A2,A3) with the bolts 1 (I). Fig.2: Attach the big beam (B) to the big connector (C), then assemble the hook (L) to the big connector (C). Fig.3: Insert the lower connector tube of the big beam (B) into the upper tube of post (A1,A2,A3), then place the big canopy (J) on big top, do not fully spread.
- Page 5 Hardware Pack 2 Φ6X230MM Stake 8PCS Fig.7: Extend the Big Canopy (J) onto the big top by fixing the canopy at four corners of Big Beam (B). Fig.7-1: Attach the hook rack (H) to panel 2(G2) with the bolt 2 (II). Fig.8: Insert the connecting piece of panels (G1,G2) into the U-shaped piece of post , then fasten the panels (G1,G2) to posts (A1,A2,A3,A4) using bolts (I).
Need help?
Do you have a question about the L-GG001PST-H and is the answer not in the manual?
Questions and answers
I assembled my gazebo but I am missing Part P10185B01106 the Big Connector and P12601A01106 the Hook. Is it possible to get replacements?
Yes, replacement parts P10185B01106 (Big connector) and P12601A01106 (Hook) for the Sunjoy gazebo model L-GG001PST-H are available. You can place an order by contacting Sunjoy Group through their provided phone number, email, or website.
This answer is automatically generated
