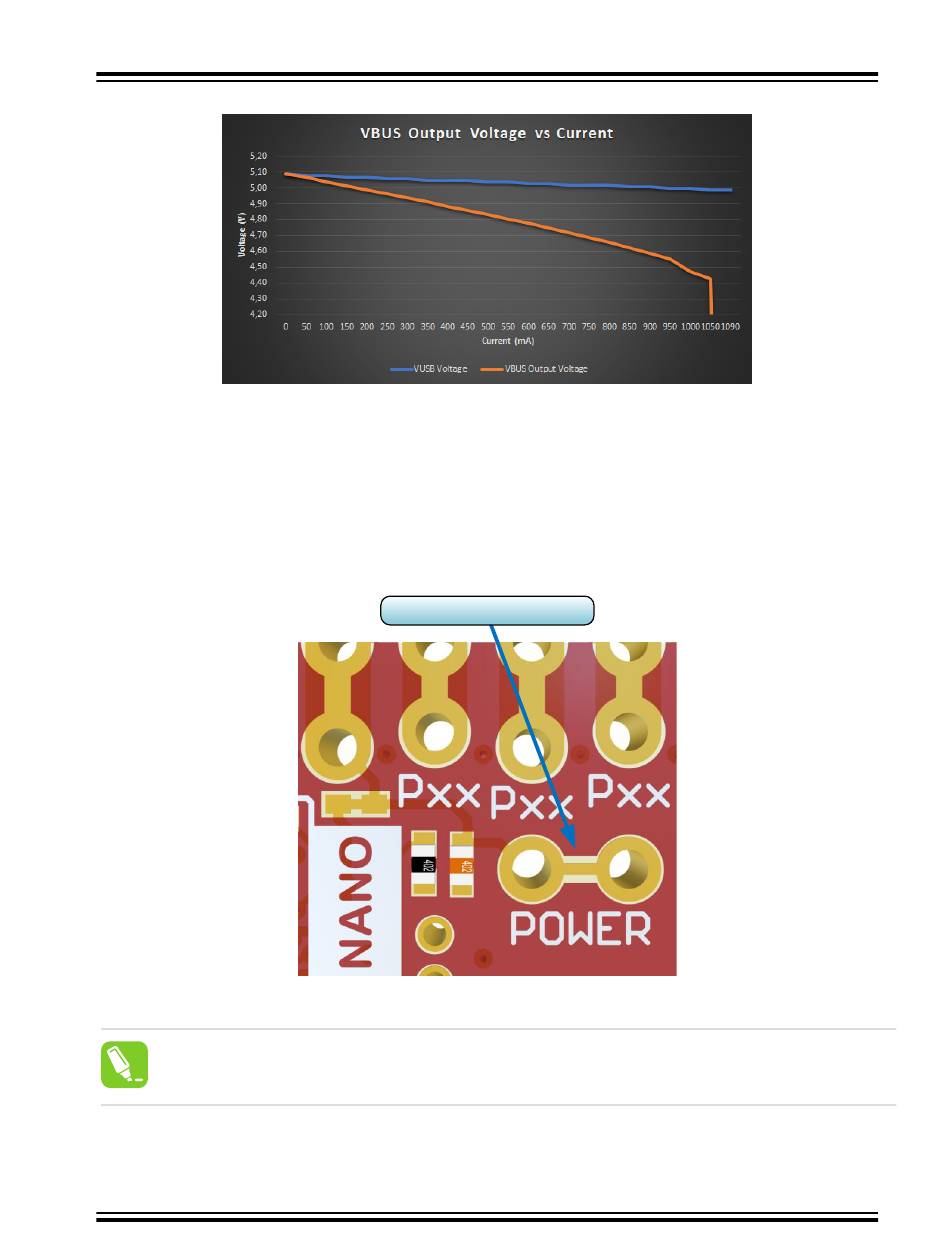

Figure 3-4. VBUS Output Voltage vs. Current
3.4

Target Current Measurement

Power to the PIC18F47K42 is connected from the on-board power supply and VTG pin through a 100-mil pin header
cut Target Power strap marked with "POWER" in silkscreen (J101). To measure the power consumption of the
PIC18F47K42 and other peripherals connected to the board, cut the Target Power strap and connect an ammeter
over the strap.
Figure 3-5. Target Power Strap
Tip: A 100-mil pin header can be soldered into the Target Power strap (J101) footprint for easy
connection of an ammeter. Once the ammeter is not needed anymore, place a jumper-cap on the pin
header.
©
2019 Microchip Technology Inc.
PIC18F47K42 Curiosity Nano
Target Power strap (top side)
